Inicio · Time switches · TSC25

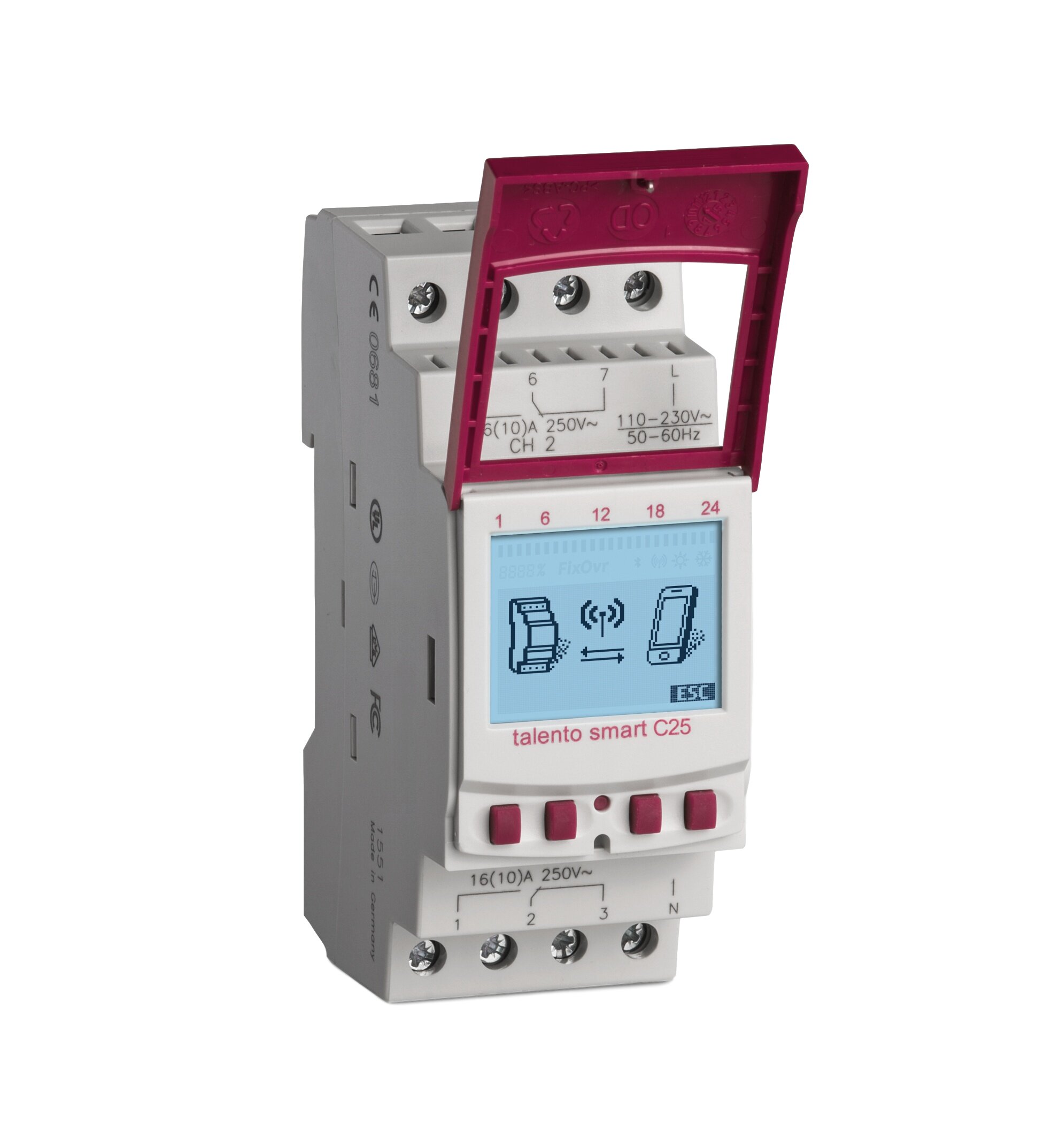

TSC25

TALENTO SMART C25 110/230VAC

Digital time switch Talento Smart Classic version, 2 modules, with 2 changeover outputs, powered by AC 110–230V ±10%, 50–60Hz.
Switching capacity: 16A (resistive load) and 10A (inductive load, cosφ 0.6).
Features weekly and date-based programming, with ON/OFF, cycle, pulse, random, and astronomical functions.
Minimum switching time: 1 second for cycle and pulse functions, 1 minute for all others.
Memory capacity: 500 positions, with up to 50 programs (, which may or may not be linked to specific dates. (*Optional version with 80 programs available upon request)
Allows automatic insertion of national holidays in date-based programs.
Includes integrated Bluetooth for programming via a free app from a smartphone or PC.
Automatic summer/winter time adjustment.
Includes service hour counter and manual switch for permanent ON, permanent OFF, or automatic mode.
Has 8-year power reserve, with programming stored in EEPROM.
PIN code protection and sealable cover.
DIN rail mounting, cage terminal connection up to 2.5 mm², energy consumption 1 VA, protection rating IP20.

Code 014TSC25
EAN 4010940044756
