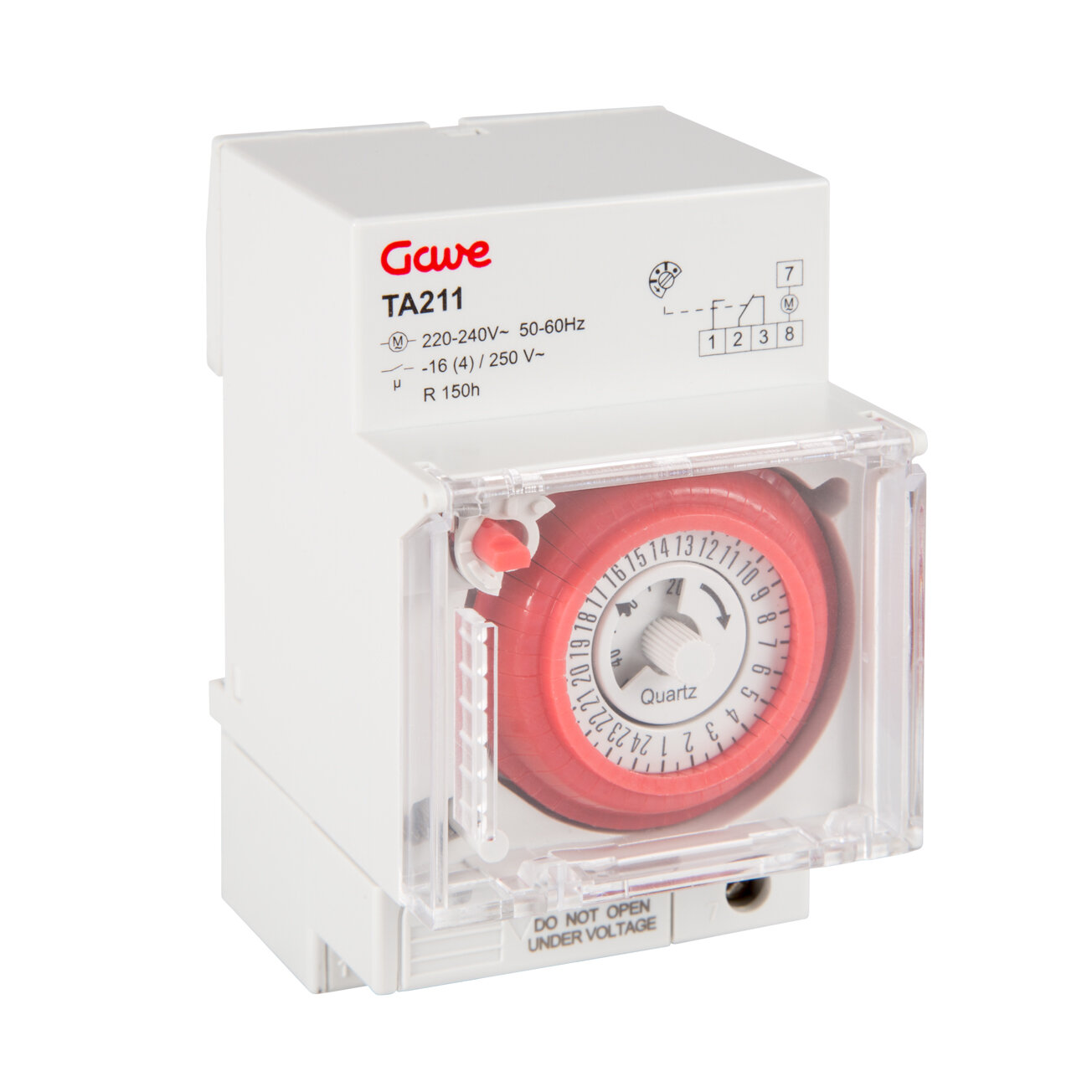

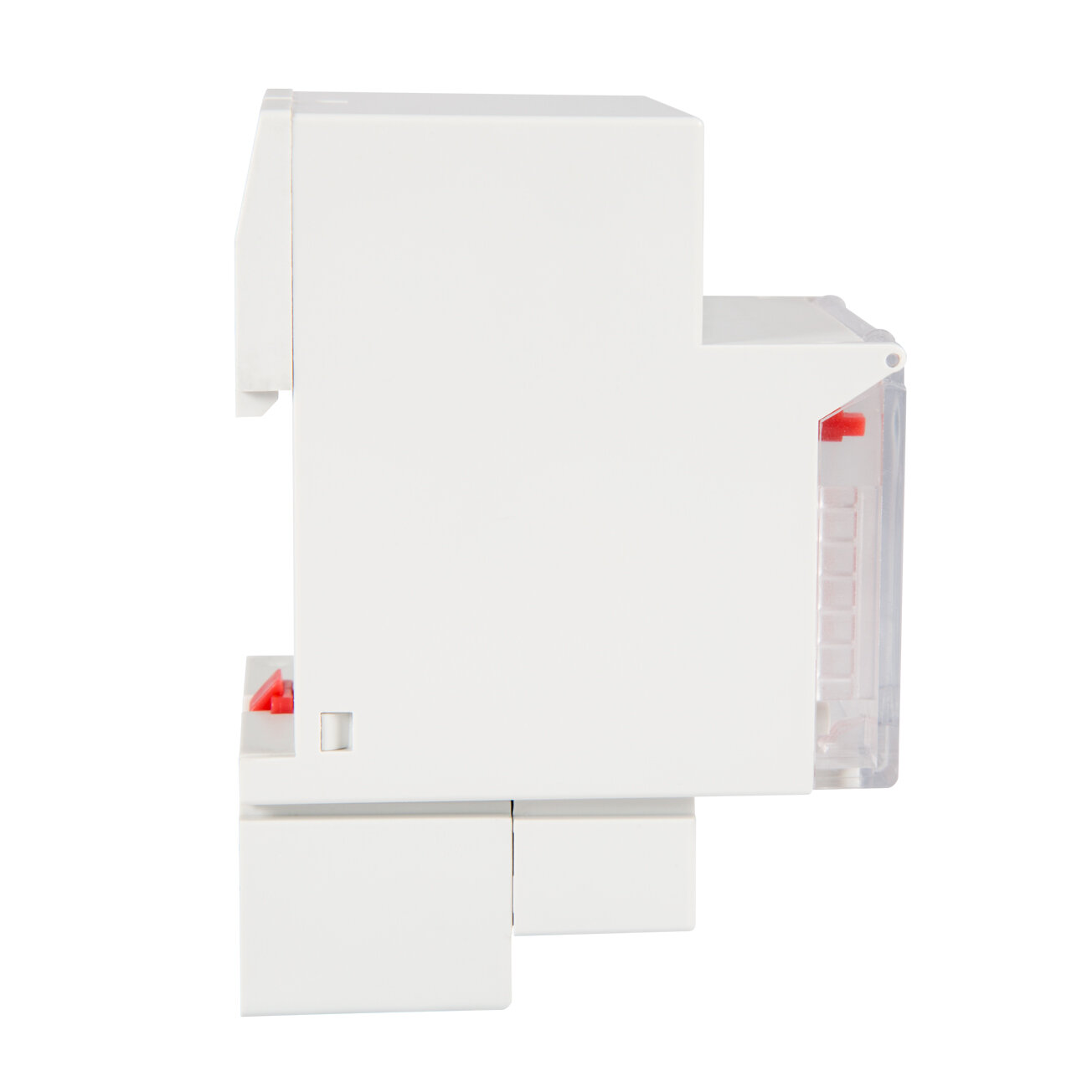

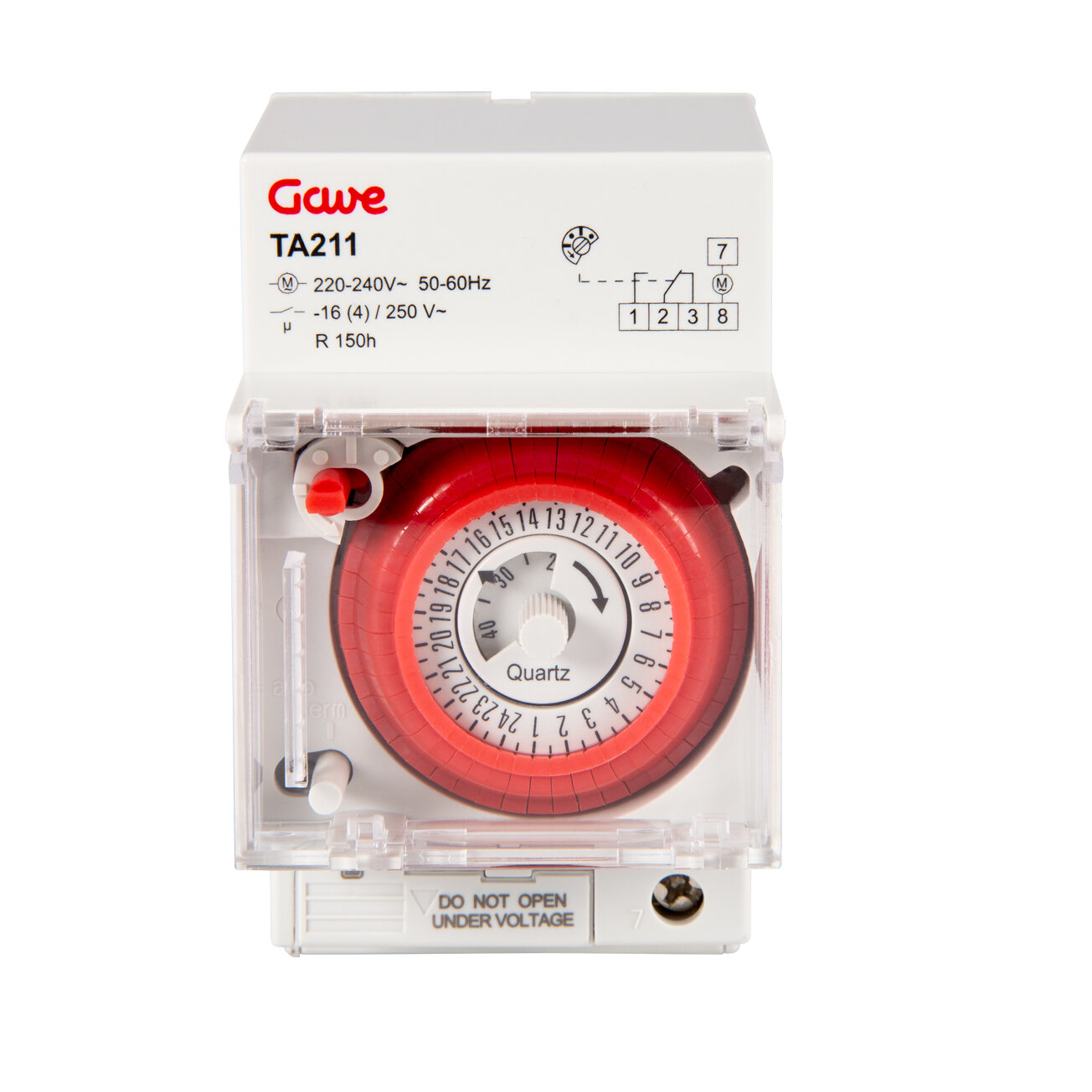

TA211

TA 211 220-240 V AC 50/60Hz
Analogue daily cycle time switch with ON/OFF programming, three module wide, 220-240V AC 50/60Hz power supply, one CO contact, switching capacity 15A (resistive load) and 4A (inductive load cosø 0.6), minimum switching time 30 minutes, flap programming, switch for manual control with three positions: automatic, OFF and permanent ON, 150 hours of power reserve, battery interchangeable, DIN rail mounting, cage terminal connection up to 4mm2, power consumption 1,5 VA, IP20 protection.
Code 014TA211
EAN 8430892312127

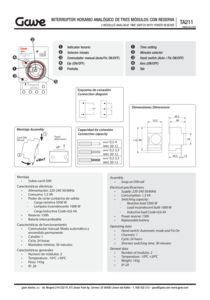

Time switches datasheet
Supply 220-240 V
Nominal frecuency 50-60Hz
Power consumption 1,5 VA
Channel 1
Operating temperature -10ºC +50ºC
Degree of protection IP20
Minimum switching time 30 min
Max. wire cross section

4 mm2
Net weight (gr) 145
Breaking capacity

Resistive load 3500 W

Load incandescent bulb 1000 W

Inductive load Cosⱷ=0,6 4A
Type of contact CO
Power reserve 150 h
Connection screw terminal
Cycle 24 hours
