Inicio · Time switches · TA111M

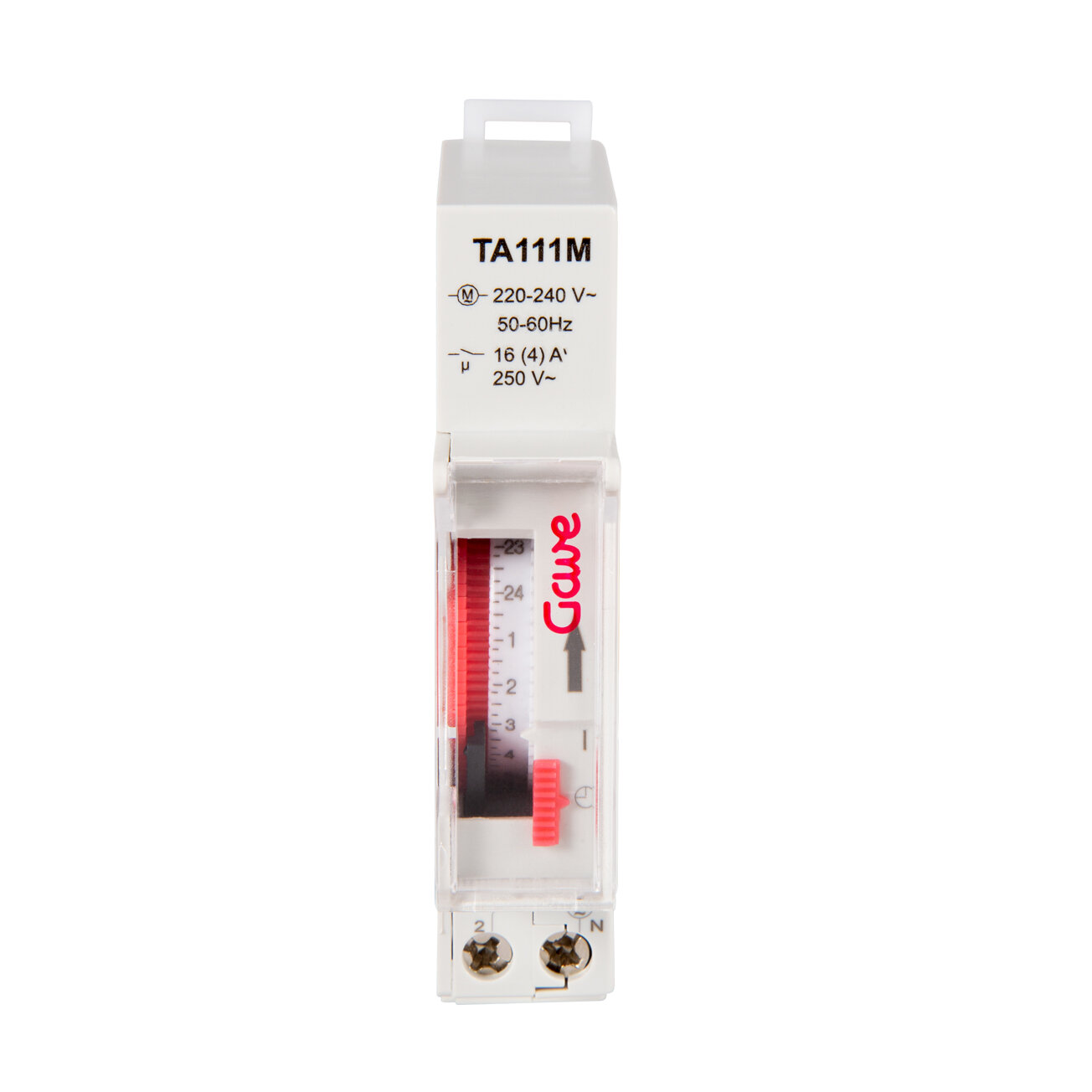

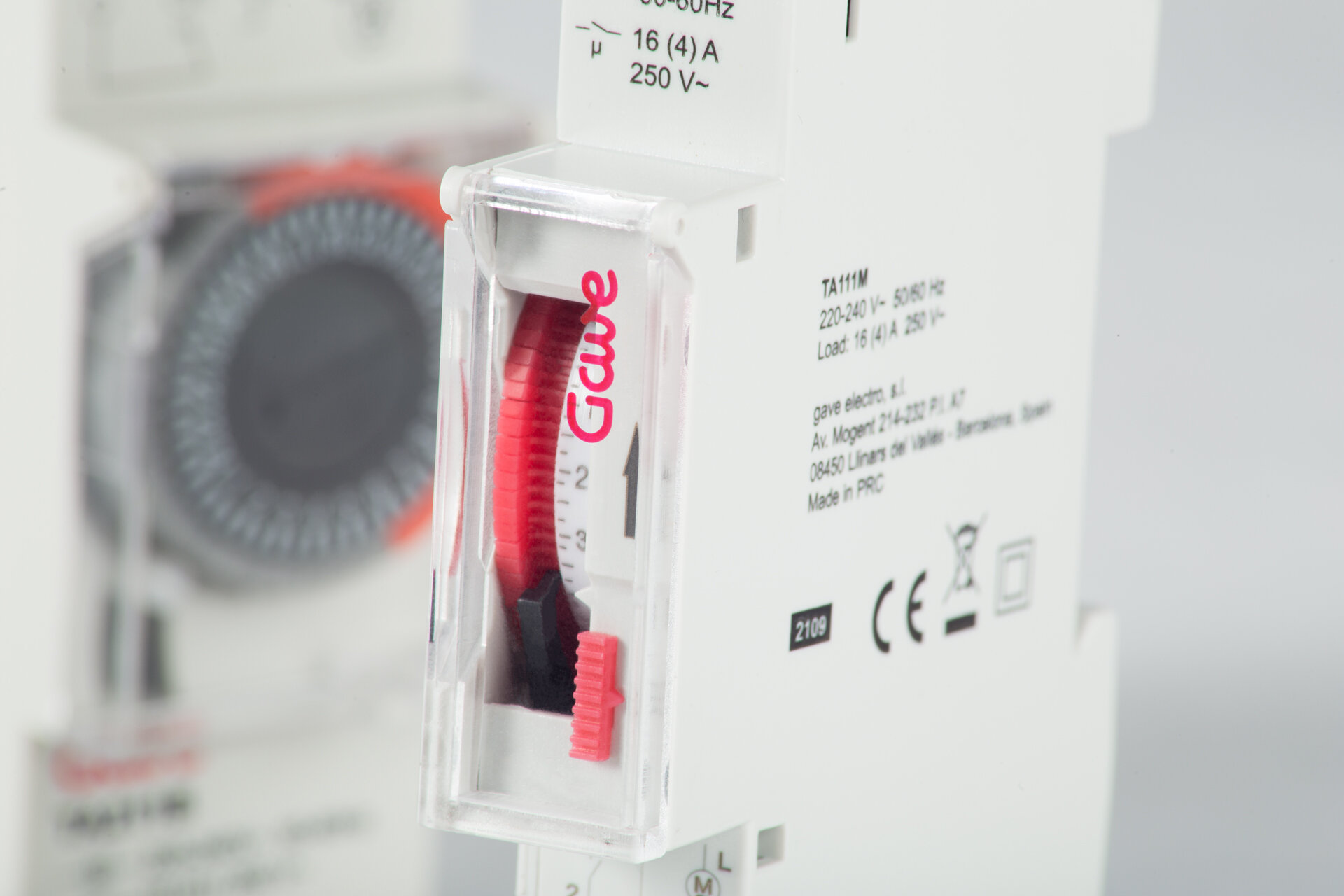

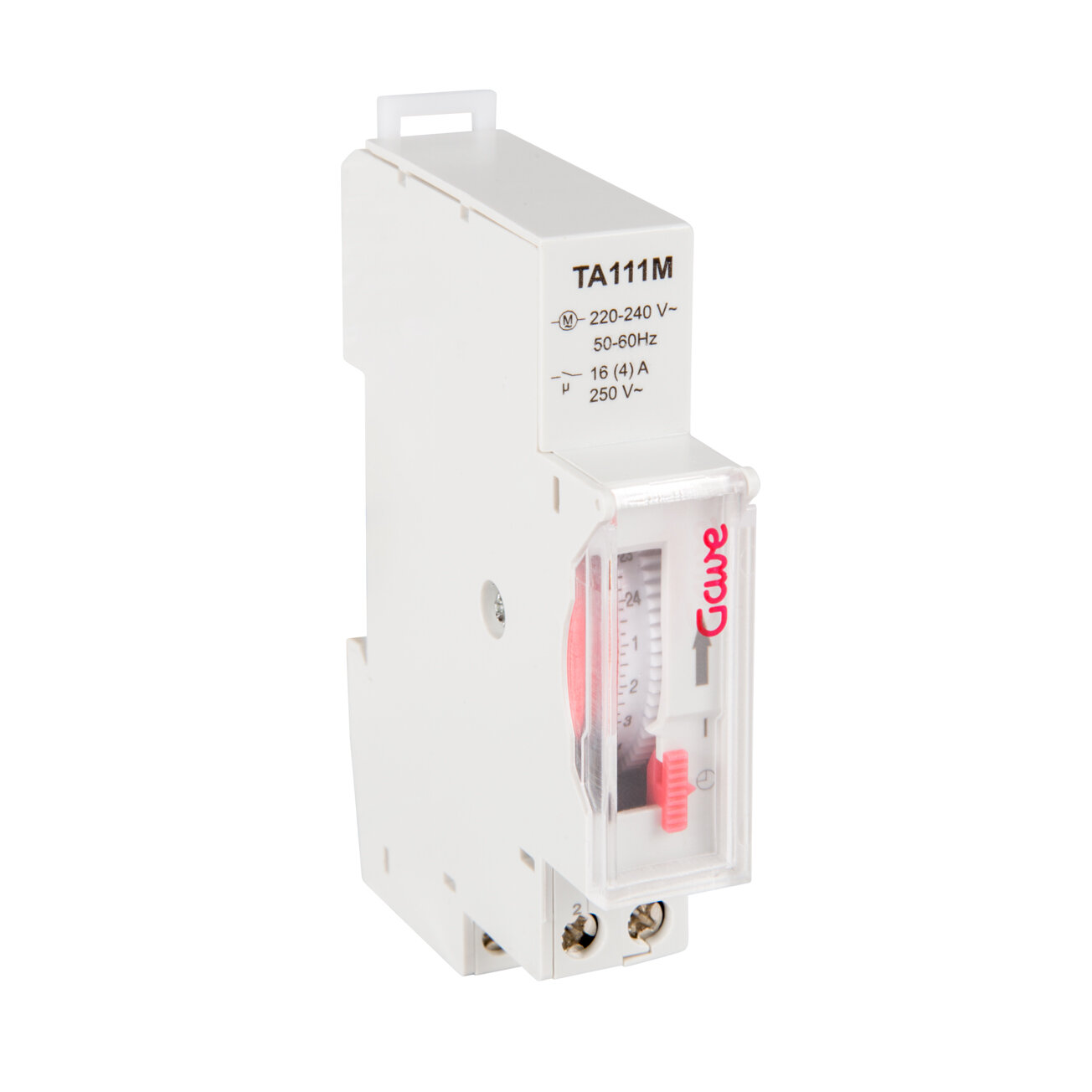

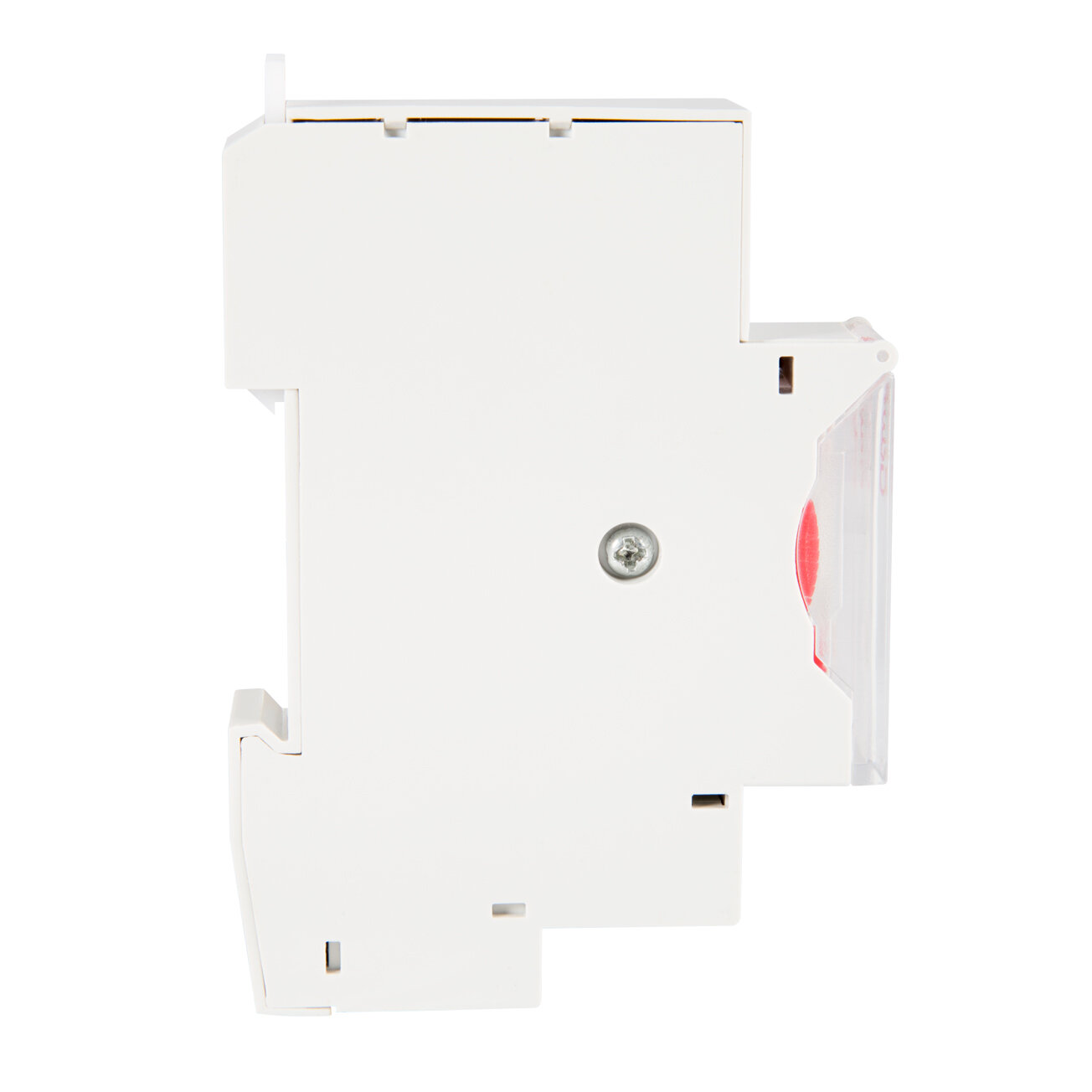

TA111M

TA111 MINI 220-240V 50/60HZ
Analogue daily cycle time switch with ON/OFF programming, one module wide, 220-240V AC 50/60Hz power supply, one NO contact, switching capacity 15A (resistive load) and 4A (inductive load cosø 0.6), minimum switching time 15 minutes, flap programming, switch for manual control with two positions: automatic and permanent ON, no power reserve, DIN rail mounting, cage terminal connection up to 4mm2, power consumption 1 VA, IP20 protection.
Code 014TA111M
EAN 8430892311212

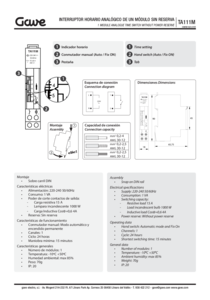

Time switches datasheet
Supply 220-240 V
Nominal frecuency 50-60Hz
Power consumption 1 VA
Channel 1
Operating temperature -10ºC +50ºC
Degree of protection IP20
Minimum switching time 15 min
Max. wire cross section

4 mm2
Net weight (gr) 70
Breaking capacity

Resistive load 15 A

Load incandescent bulb 1000 W

Inductive load Cosⱷ=0,6 4A
Type of contact NO
Power reserve Without reserve
Connection screw terminal
Cycle 24 hours
