STM61080P

6 STRING MODULAR COMBINER BOX PV FUSE 10A SWITCH 80A + SURGE PROTECTOR II

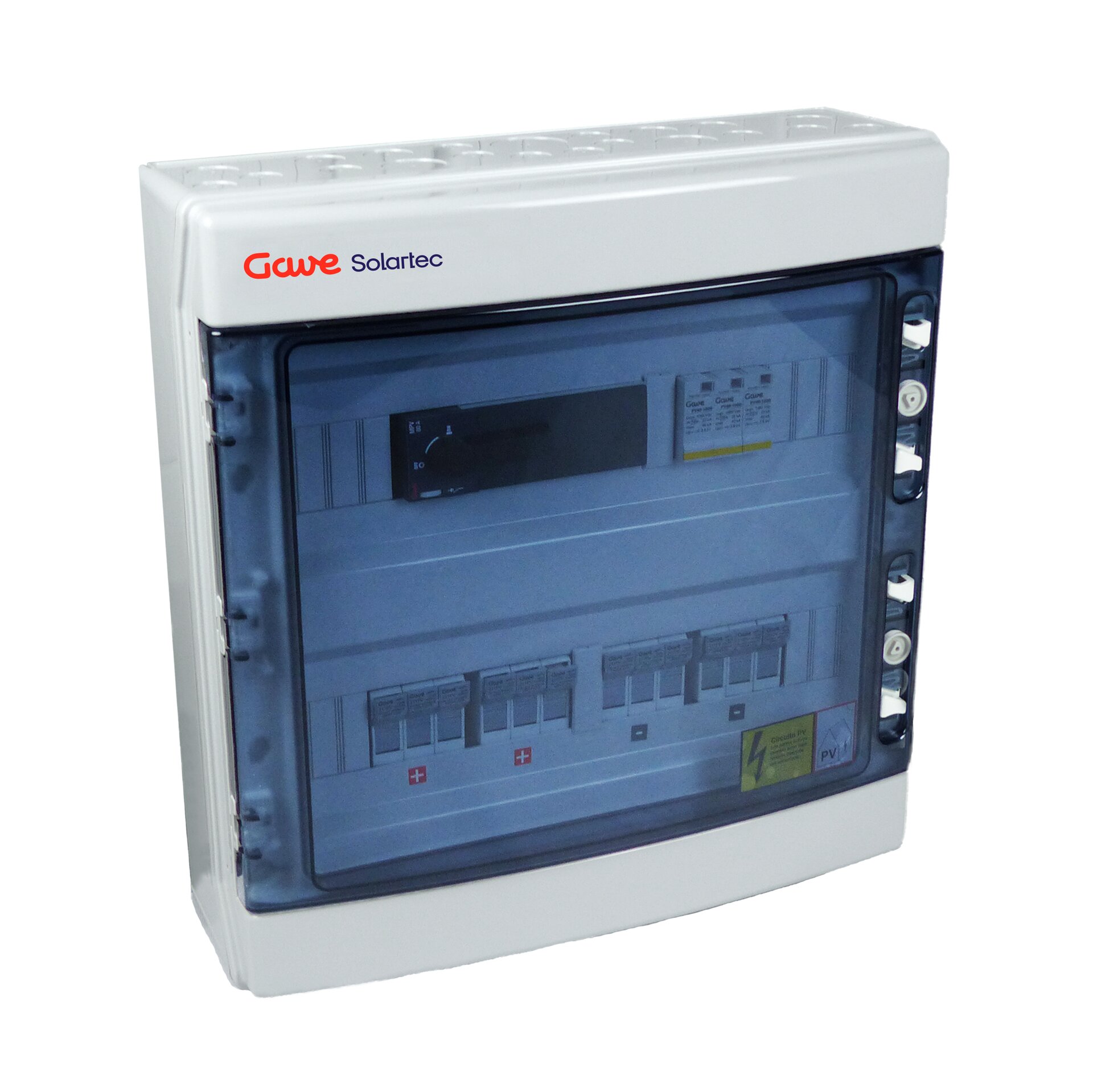

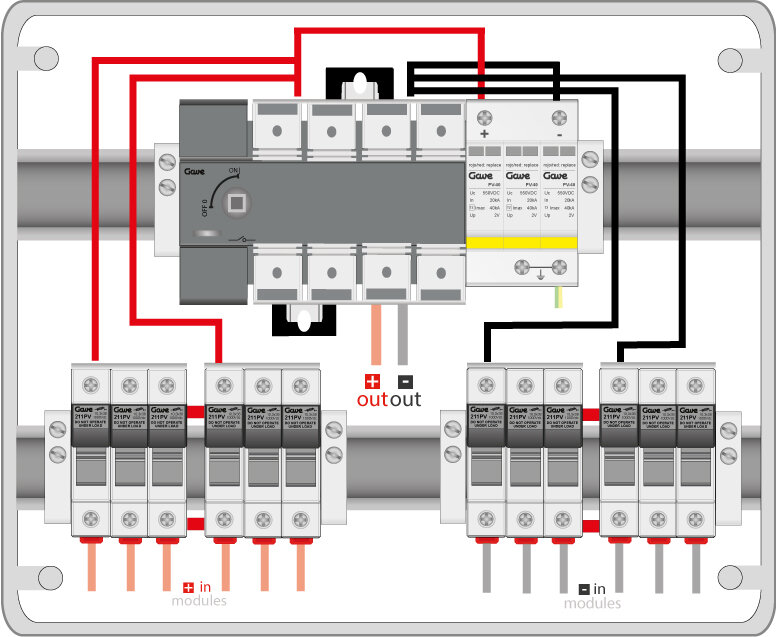

PV modular combiner box 6 strings + fuseholder and fuse 10A gPV + switch-disconnector 80 A + protector sobretensión clase II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 436x418x148mm.

Print to PDF

Code 029STM61080P
EAN 8430892289412
Combiner box technical data
Insulating voltage (Ui) 1000 V DC
Operating voltage (Ue) 1000 V DC
Surge protector Class II
No. of strings per tracker 6
Number of MPPT trackers 1
Maximum voltage (Uoc max) 1000 V
Fuse current 10 A
Surge protector code 1 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

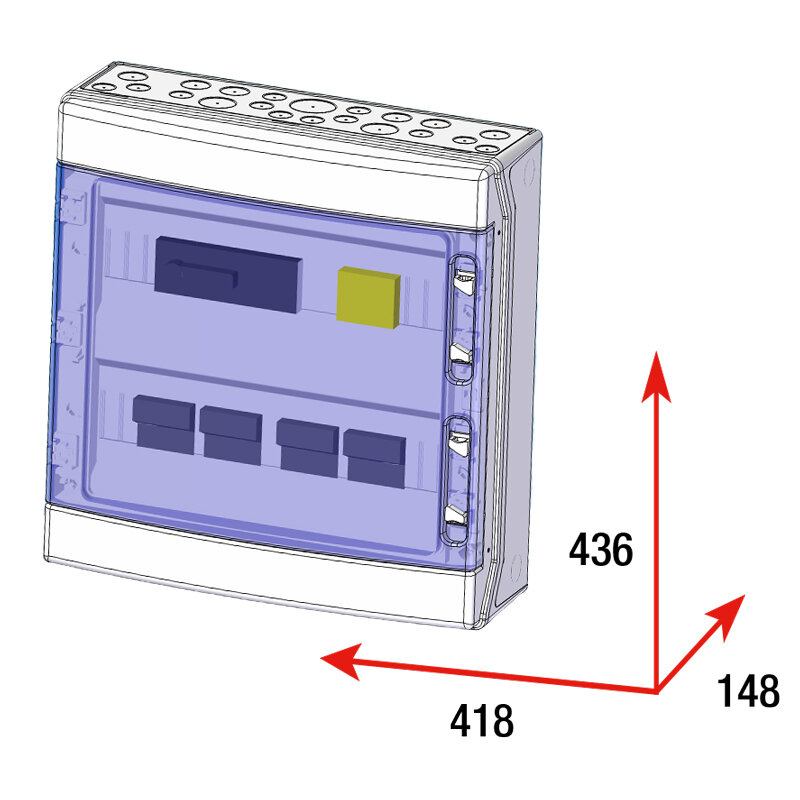

Dimensions
Product height 436 mm
Product width 418 mm
Product length 148 mm
Logistic Data
Customs code 85371098
