Code 029STM31016P15S
EAN 8430892319201

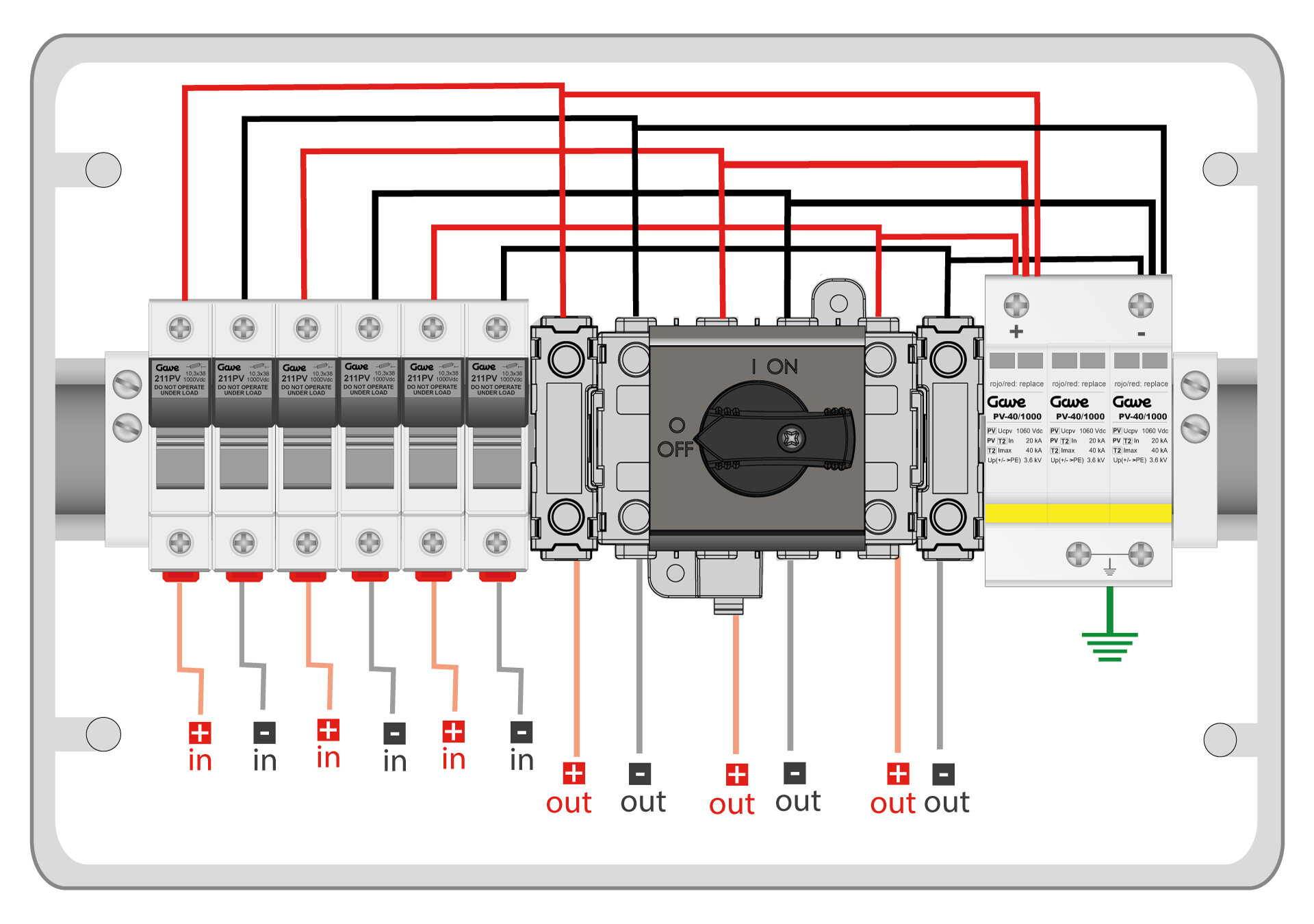

Combiner box technical data
Surge protector Class II
No. of strings per tracker 3
Number of MPPT trackers 1
Fuse current 15 A
Maximum voltage (Uoc max) 1000 V
Surge protector code PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3.6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

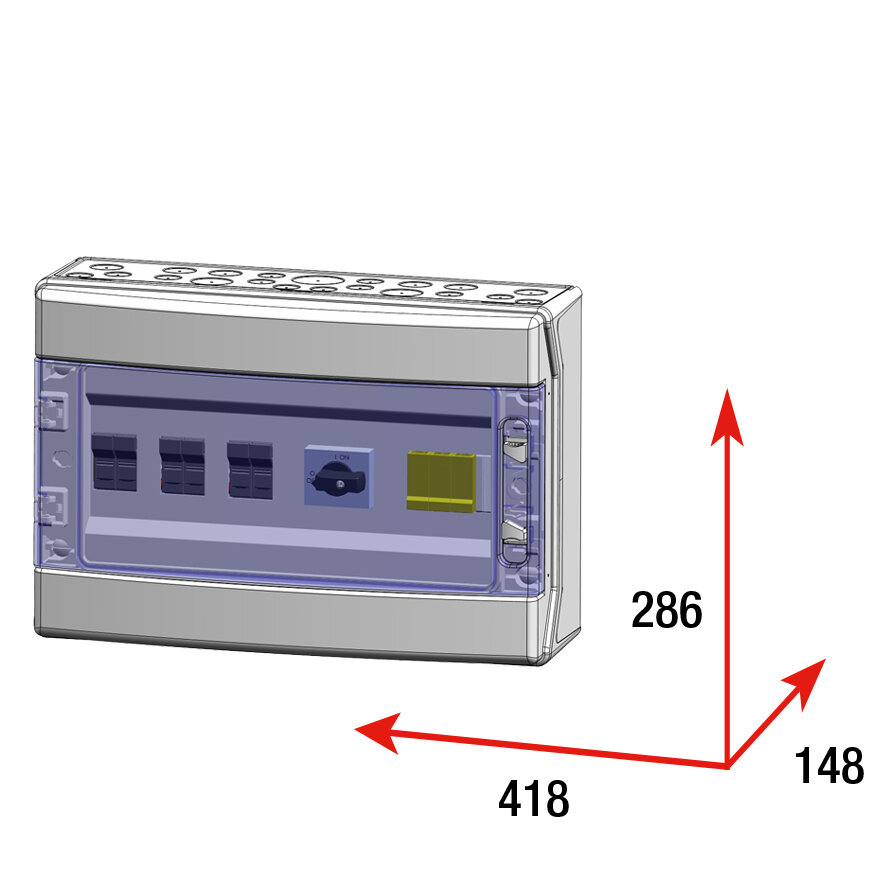

Dimensions
Product height 286 mm
Product width 418 mm
Product length 148 mm
Logistic Data
Customs code 85371098
