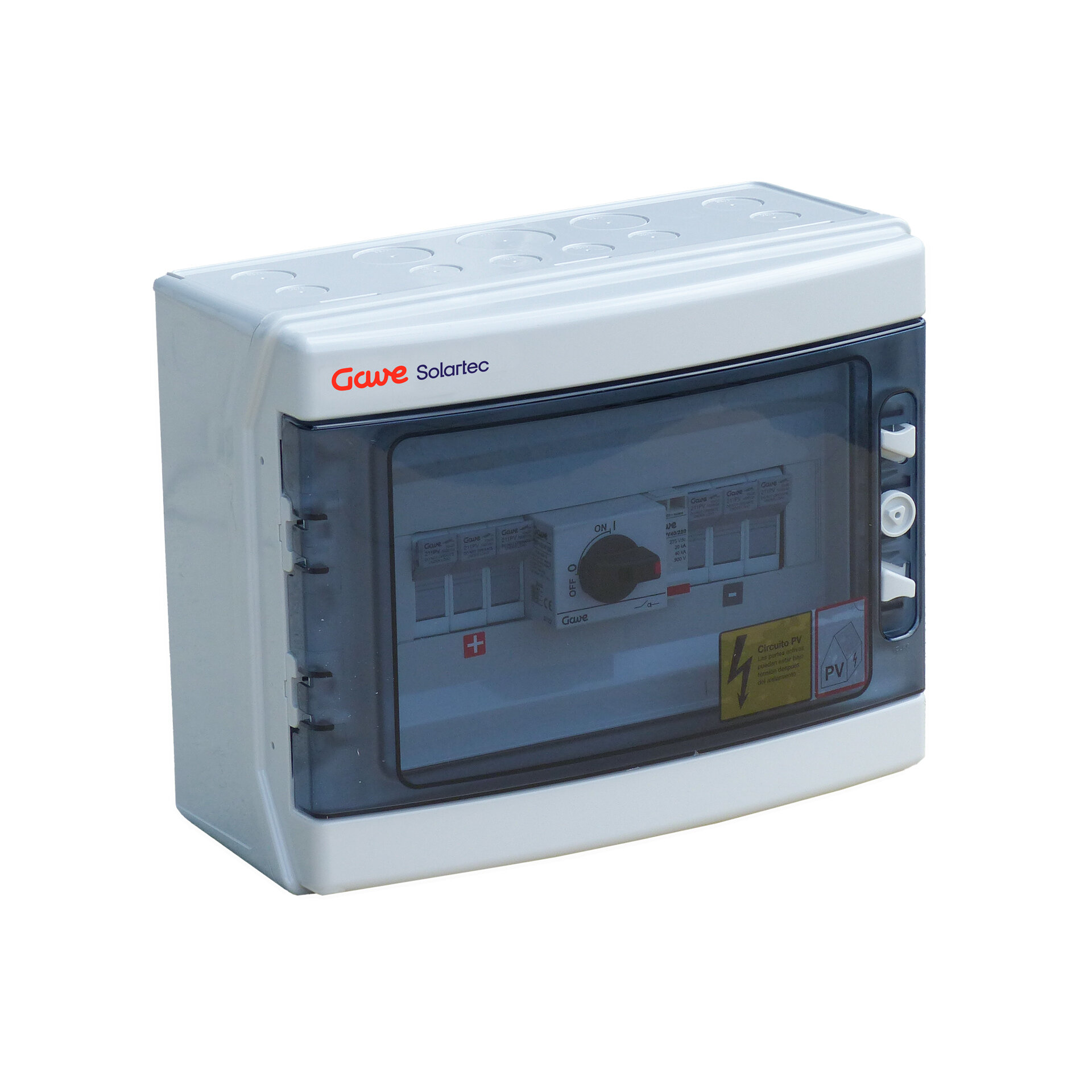

STM30240P15
3 STRING MODULAR COMBINER BOX PV FUSE 15A + SURGE PROTECTOR II UN-220VDC
| Code | 029STM30240P15 |
| EAN | 8430892319119 |
Combiner box technical data
| Surge protector | Class II |
| No. of strings per tracker | 3 |
| Number of MPPT trackers | 1 |
| Fuse current | 15 A |
| Maximum voltage (Uoc max) | 275 V |
| PV current (In) | 40 A |
| Surge protector code | 1 x PST140-220D |
| Surge protector type | II |
| Max. continuous operating voltage (Ucpv) | 275 V DC |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Protection level at In (Up) | 900 V |
| IP | IP65 - IEC 60529 |
| IK | IK08 - IEC 62262 |
| Standards | IEC EN 6143-1/2 |
Dimensions
| Product height | 246 mm |
| Product width | 310 mm |
| Product length | 148 mm |
Logistic Data
| Customs code | 85371098 |
