STM3-740P12

3 STRING MODULAR COMBINER BOX PV FUSE 12A + SURGE PROTECTOR II UN 75VDC

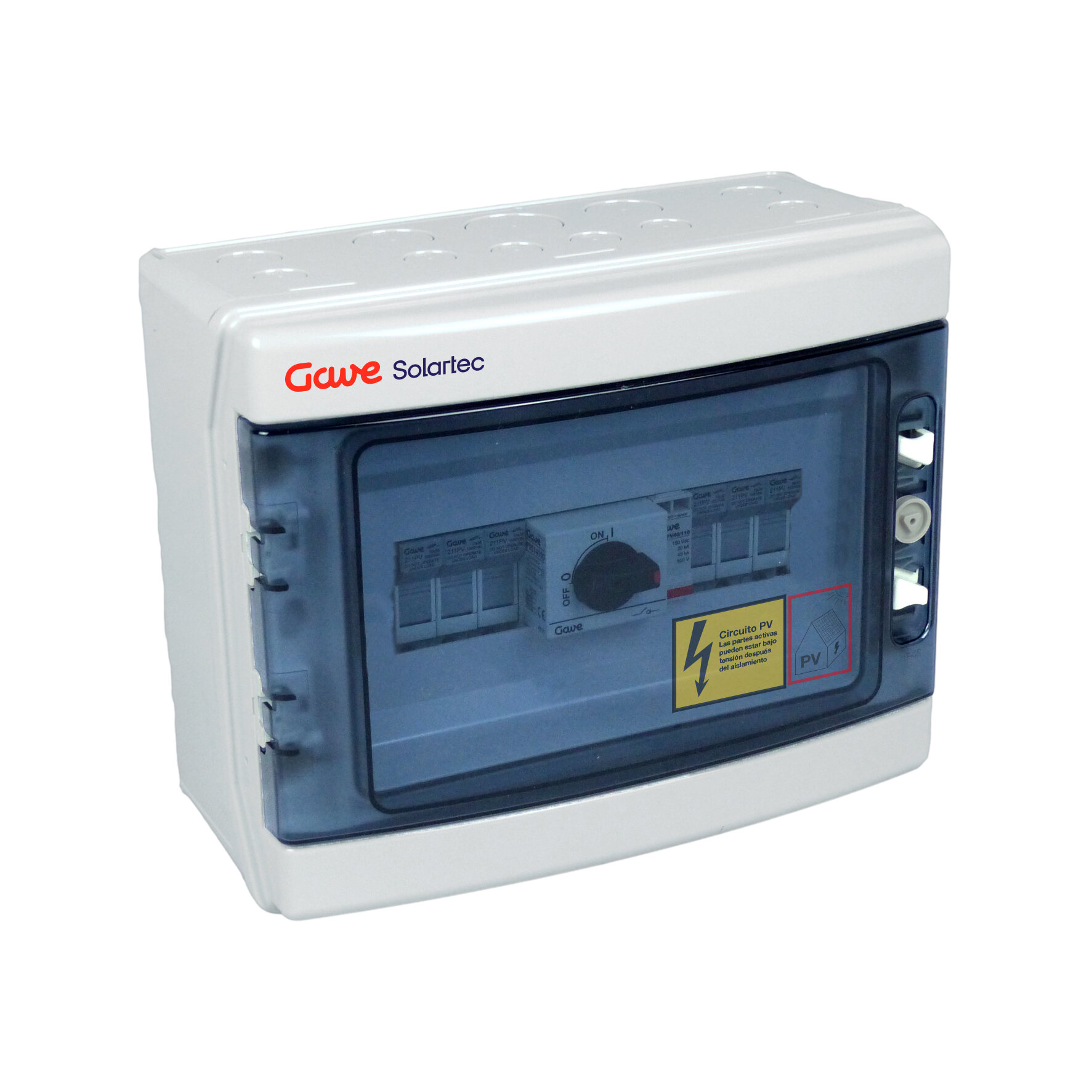

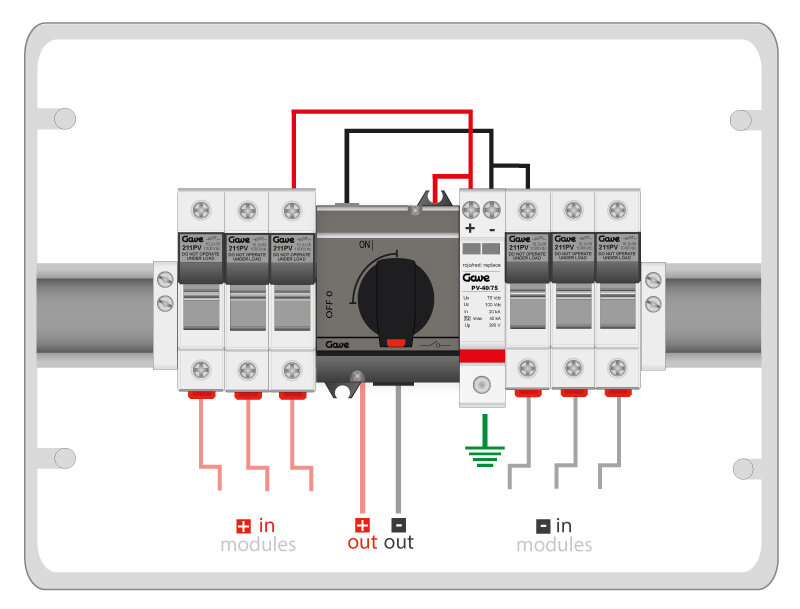

PV modular combiner box 3 strings + fuseholder and fuse 12A gPV + switch-disconnector 40 A , surge protector Un-75V for battery systems. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 246x310x148mm.

Print to PDF

Code 029STM3-740P12
EAN 8430892308090
Combiner box technical data
Surge protector Class II
No. of strings per tracker 3
Number of MPPT trackers 1
Fuse current 12 A
Surge protector code PST140-75D
Surge protector type II
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

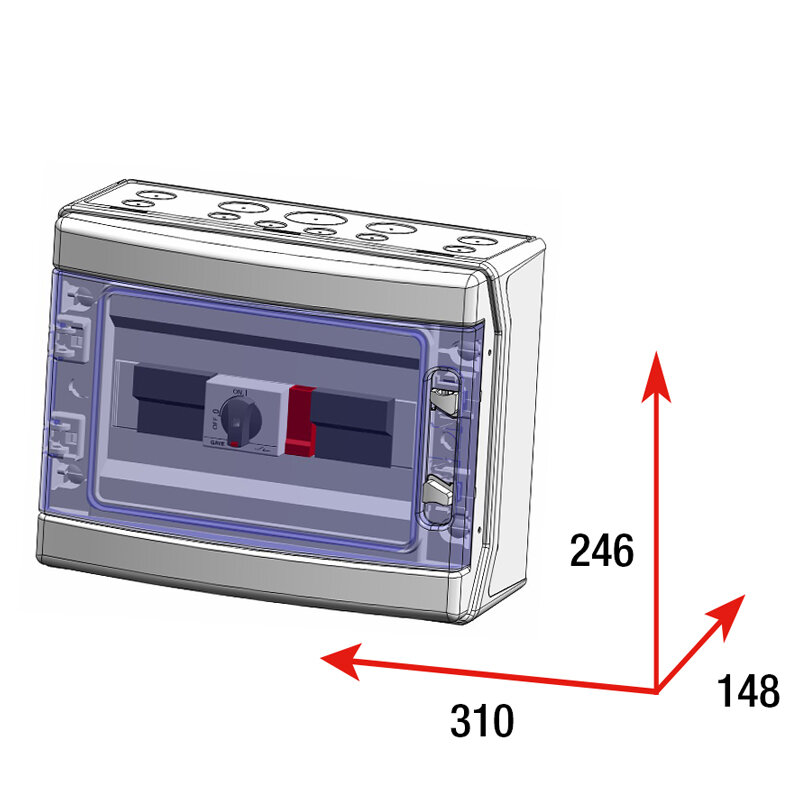

Dimensions
Product height 246 mm
Product width 310 mm
Product length 148 mm
Logistic Data
Customs code 85371098
Technical data
Nominal voltage (Un) 75 VDC
