STM110NSP12

1 STRING SURGE PROTECTION BOX FUSE 12A

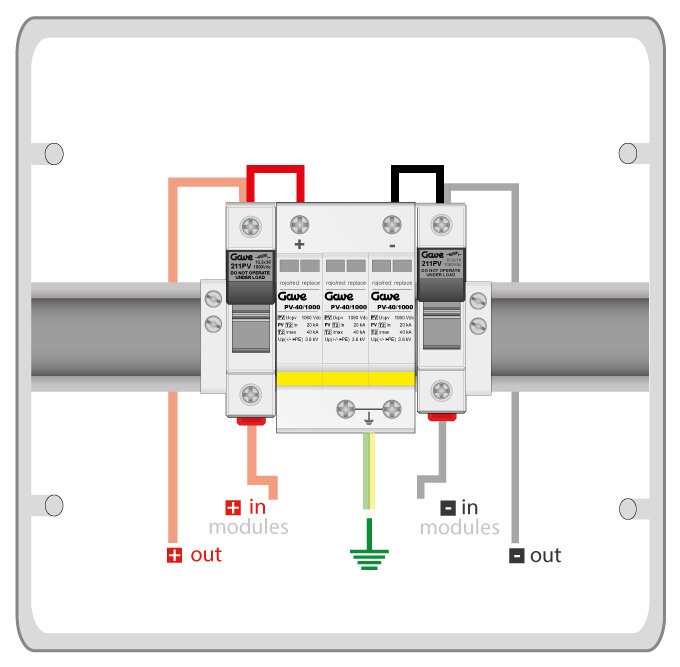

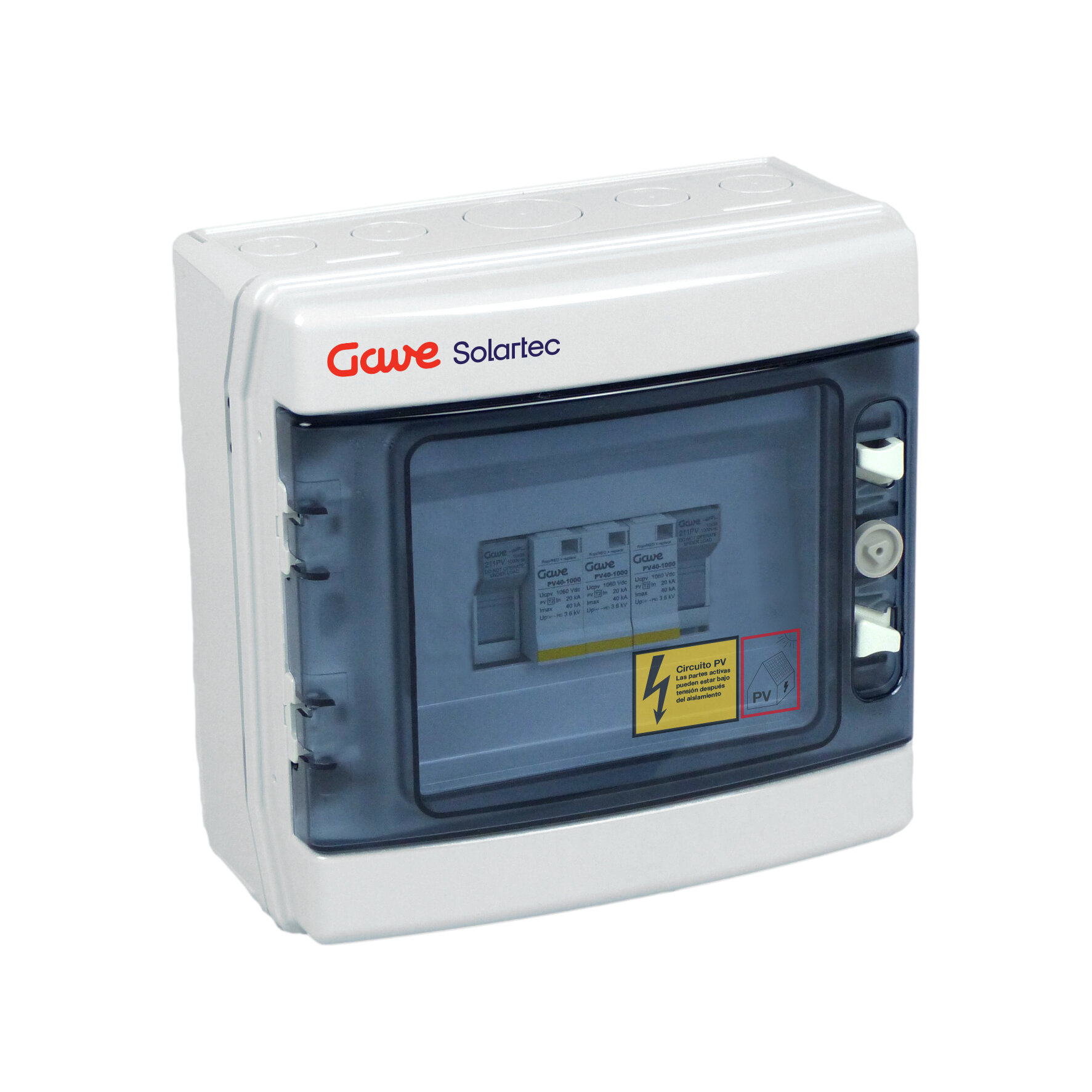

PV surge protection box 1MPPT, 1string x mppt (1 input, 1 output) x fuseholder and fuse 12A gPV + surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 231x238x118mm.

Print to PDF

Code 029STM110NSP12
EAN 8430892307338
Combiner box technical data
Surge protector Class II
No. of strings per tracker 1
Number of MPPT trackers 1
Fuse current 12 A
Maximum voltage (Uoc max) 1000 V
Surge protector code PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3.6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2
Dimensions
Product height 231 mm
Product width 238 mm
Product length 118 mm
Logistic Data
Customs code 85371098
