STM11025P15/2

2MPPT MODULAR COMBINER BOX - 1 STRING FUSE 15A + SURGE PROTECTOR II

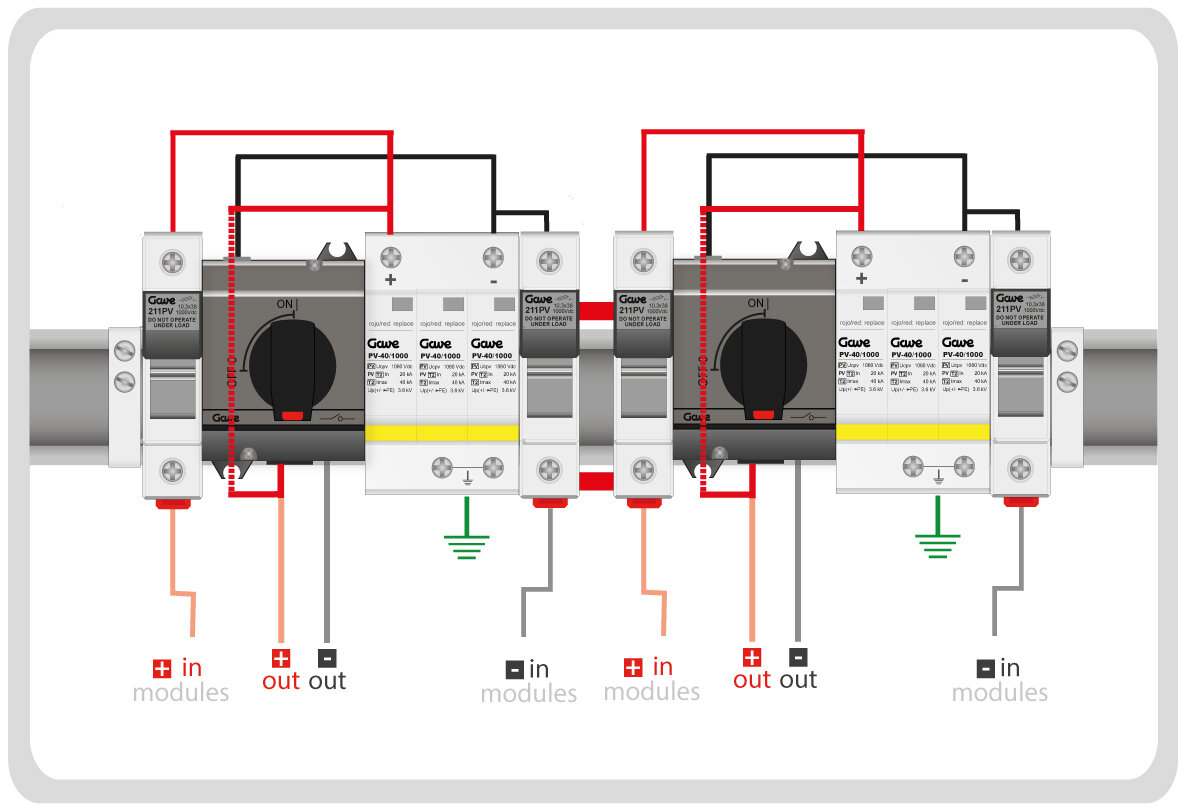

PV modular combiner box 2MPPT, 1string x mppt (2 input, 2 output) x fuseholder and fuse 15A gPV + switch-disconnector 25 A+ surge protector class II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 286x418x148mm.

Print to PDF

Code 029STM11025P15/2
EAN 8430892314565
Combiner box technical data
Combiner box type DC
Surge protector Class II
No. of strings per tracker 1
Number of MPPT trackers 2
Fuse current 15 A
Maximum voltage (Uoc max) 1000 V
PV current (In) 25 A
Surge protector code 2 x PST31PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1060 VDC
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 3,6 kV
IP IP65 - IEC 60529
IK IK08 - IEC 62262
Standards IEC EN 6143-1/2

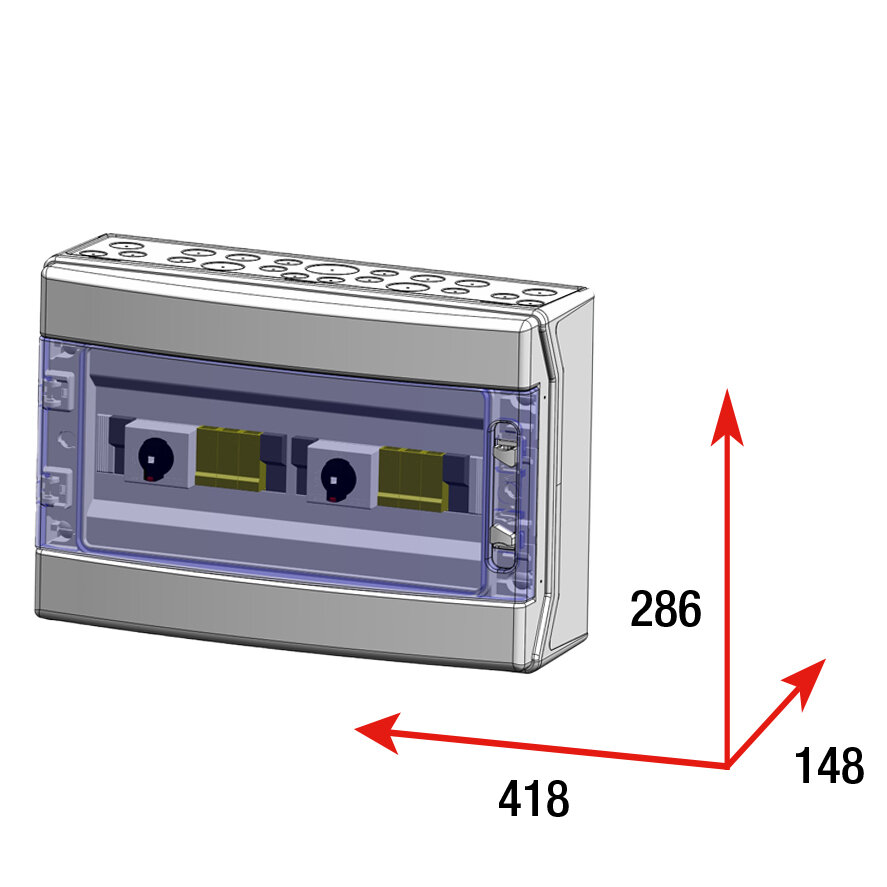

Dimensions
Product height 286 mm
Product width 418 mm
Product length 148 mm
Product weight (kg) 3.56
Logistic Data
Customs code 85371098
Product gross weight (kg) 7.84
Package height (mm) 420
Package width (mm) 160
Package length (mm) 290
Packaging weight (kg) 8.14
