STM11025D12/2

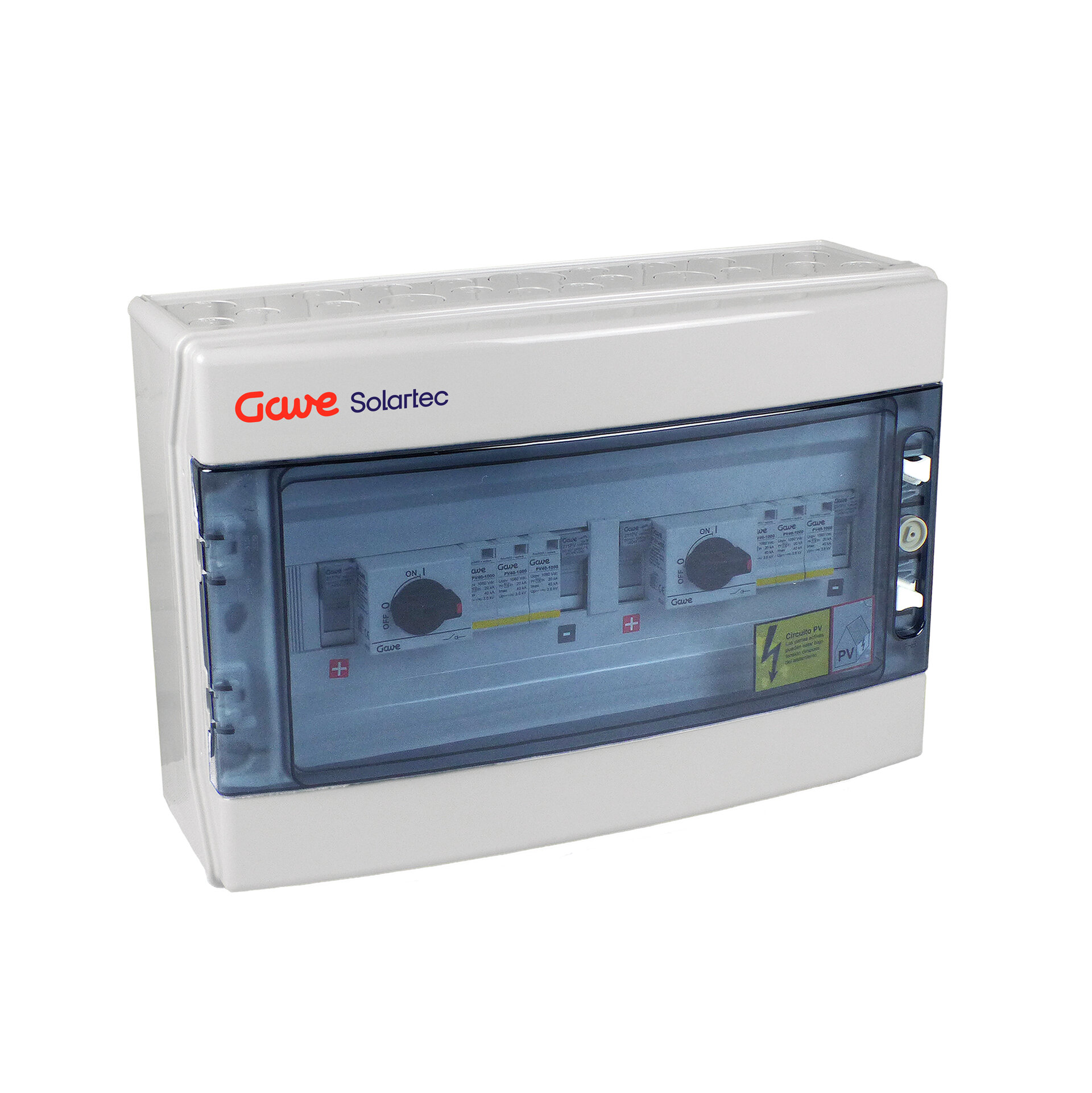

2MPPT MODULAR COMBINER BOX - 1 STRING FUSE 12A + SURGE PROTECTOR I+II
PV modular combiner box 2MPPT, 1string x mppt (2 input, 2 output) x fuseholder and fuse 12A gPV + switch-disconnector 25 A+ surge protector class I+II maximum voltage 1000Vdc, for safe installations. Double insulation class II polycarbonate box suitable for outdoor use with high impact protection (IK08). Dimensions 286x418x148mm.
Code 029STM11025D12/2
EAN 8430892334723
Combiner box technical data
Operating voltage (Ue) 1000 V DC
Surge protector Tipo I+II
Inputs current rating 2X25A
No. of strings per tracker 1
Number of MPPT trackers 2
Fuse current 12
Surge protector code PST31APV
Surge protector type I+II
Nominal discharge current (In) 15 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 2,6 / 4,6 Kv
IP IP65 - IEC 60529
IK IK08 - IEC 62262
