SP101525P25

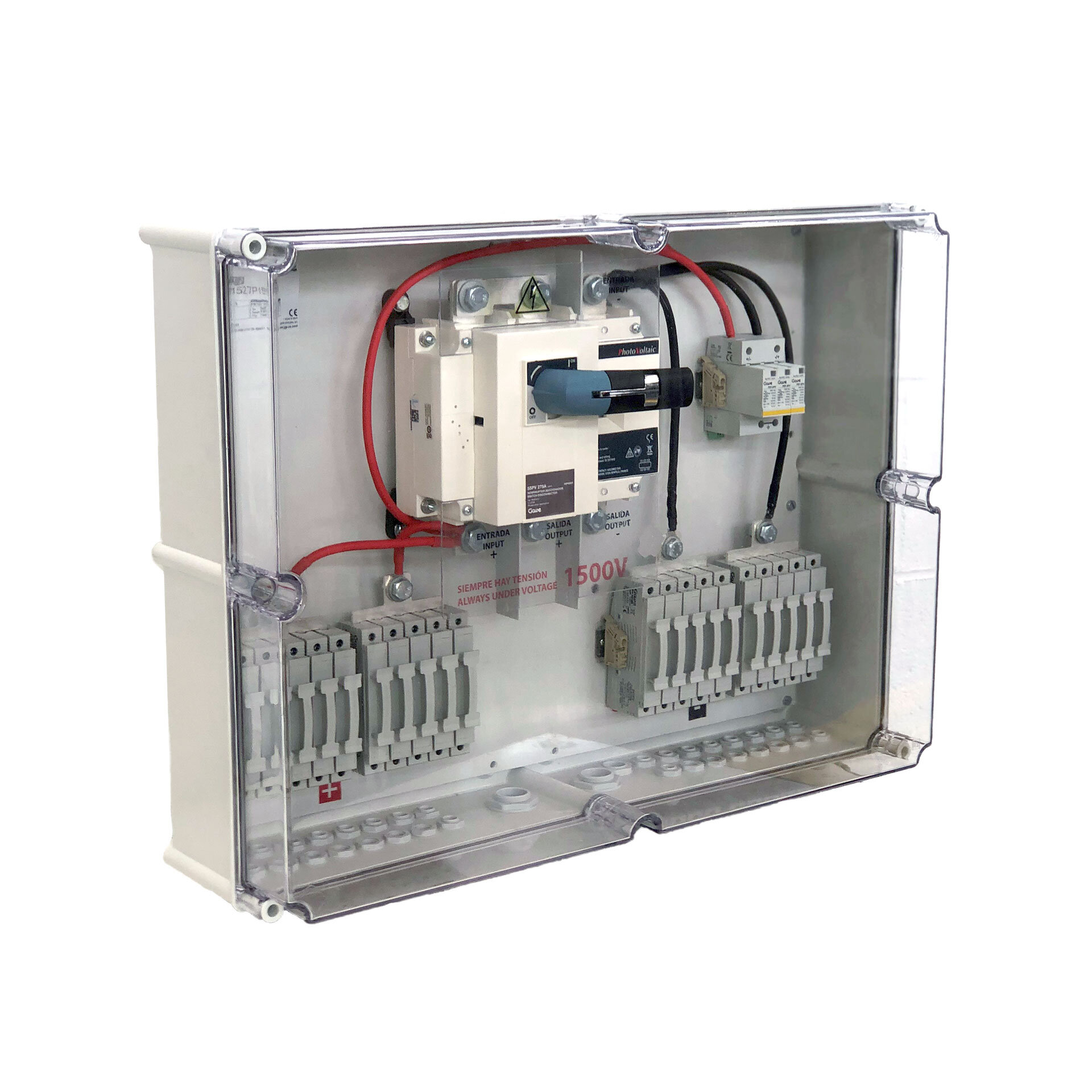

PV COMBINER BOX 1500V 10 STRINGS - FUSE 25A -SWITCH DISCONNECTOR 250A + SURGE PROTECTOR

PV combiner box for 10 strings + fuseholder and 25A gPV fuse + switch-disconnector 250A +surge protector class II maximum voltage 1500Vdc, to set up reliable and safe installations. Caja en poliéster reforzado en fibra de vidrio autoextinguible tapa policarbonato transparente. Enclosure bottom part equipped with individual cable glands for each string, for the load output and the earthing output. Protection screens on the switch live parts. Safety signs according to standard requirements. Dimensions 540x201x720mm.

Code 029SP101525P25
Combiner box technical data
Operating voltage (Ue) 1500 V DC
Surge protector Class I+II
Inputs current rating 250A
No. of strings per tracker 10
Maximum voltage (Uoc max) 1500 V
Fuse current 25 A
Surge protector code PST33PV
Surge protector type II
Max. continuous operating voltage (Ucpv) 1500 VDC
Maximum impulse current (Iimp) 6.25 kA
Nominal discharge current (In) 15 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 5,3 kV
IP IP66 - IEC 60529
IK IK09 - IEC 62262
Standards IEC EN 6143-1/2
Dimensions
Product height 540 mm
Product width 720 mm
Product length 201 mm
Logistic Data
Customs code 85371098
