YT5627101

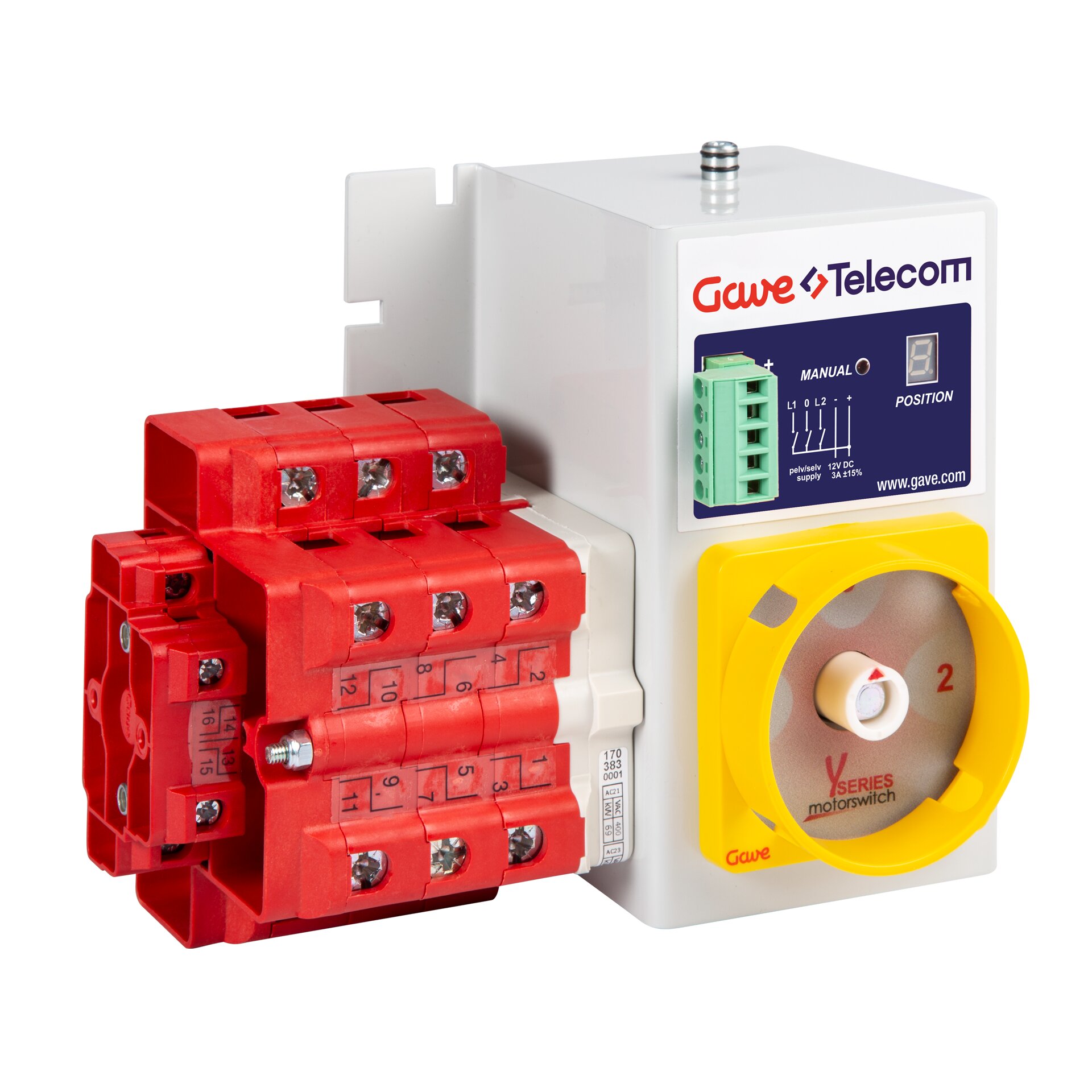

TELECOM MOTORISED CHANGEOVER SWITCH 1-0-2 3P 100A. 12V DC
Motorised changeover switch 1-0-2 , 3 poles 100A with motor unit supply 12Vdc . Size D2 dimensions 147x178x113, includes auxiliary contact 12A. Back plate mounting. Built-in internal links, mechanical and electrical interlock. Local emergency operation, includes removable padlockable handle. Display for switch position indication and operation counter.Impulse control logic. Software version for telecom applications with adapted protection and operational features. Cable clamp connection for wires 16-50mm2.

Print to PDF

Code 007YT5627101
EAN 8430892311977
Logistic Data
Customs code 85365080
Etim Code EC000216
Technical data
Nr. Poles 3
Rated voltage / frequency 690 V / 50 Hz
Operational rating (Ie) 100 A
Air thermal rating (Ith) 100 A
Wire cross section

16-50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Peak consumption 2,5 A
Nominal consumption 40 mA
Weight 2250 gr
Supply voltage (V DC) 12 V +15%
Standard IEC 60947-3
Supply 12V DC
