YL863A101

MOTORISED CHANGEOVER SWITCH 1-0-2 4P 160A INCOMING ON BOTTOM. 12V DC

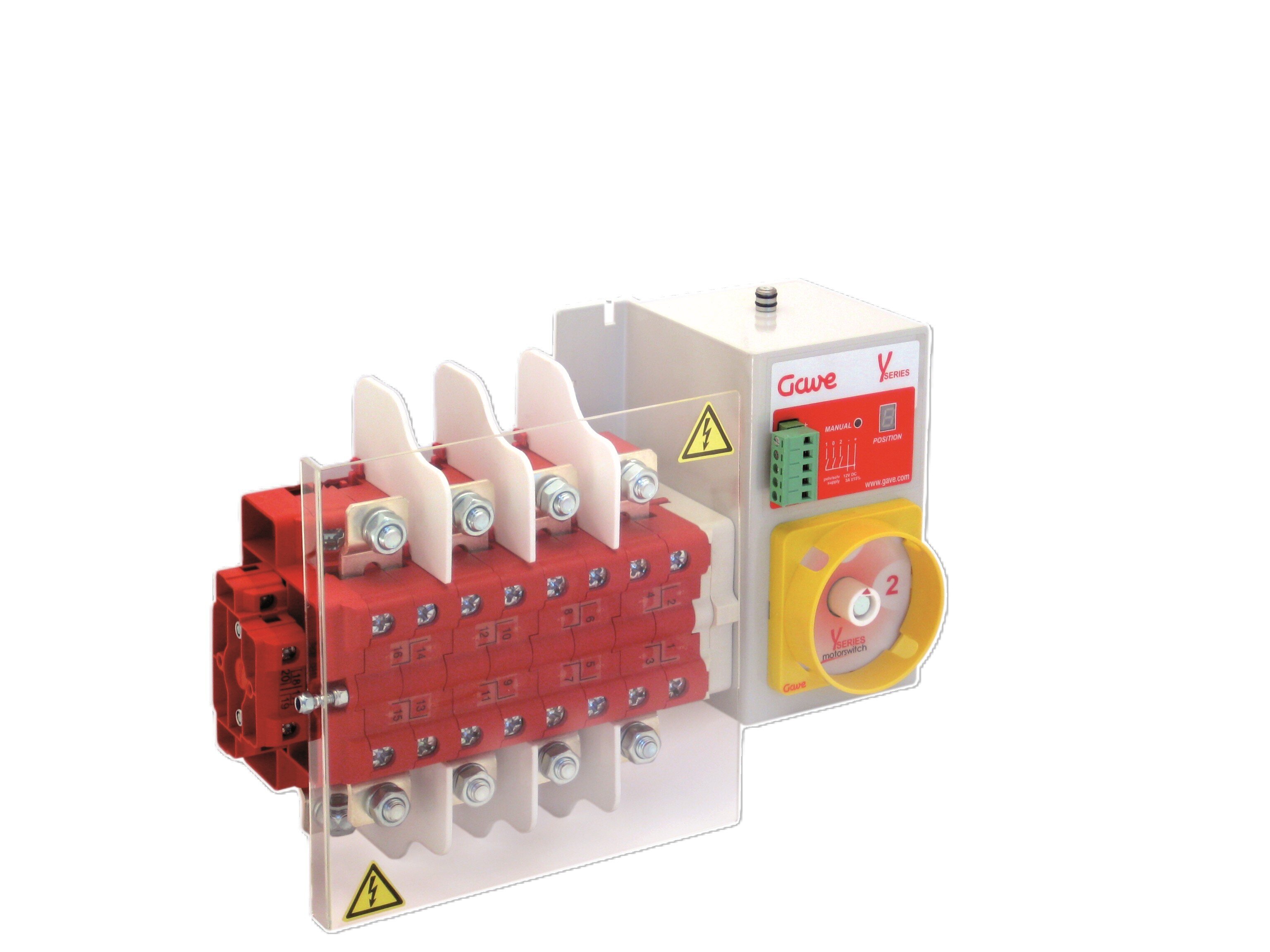

Motorised changeover switch 1-0-2 , 4 poles 160A with motor unit supply 12V dc . The supply incoming cables are connected on the bottom side of the unit and the load outgoing cables are connected on the top side. Size D2 dimensions 147x195x113, includes auxiliary contact 12A. Back plate mounting. Built-in internal links, mechanical and electrical interlock. Local emergency operation, includes removable padlockable handle. Display for switch position indication and operation counter.Impulse control logic. Protection against supply voltage failure . Cable clamp connection for wires 16-50mm2.

Print to PDF

Code 007YL863A101
EAN 8430892333405
Logistic Data
Customs code 85365080
Etim Code EC000216
Technical data
Nr. Poles 4
Y5 Type 86
Supply 12V DC
