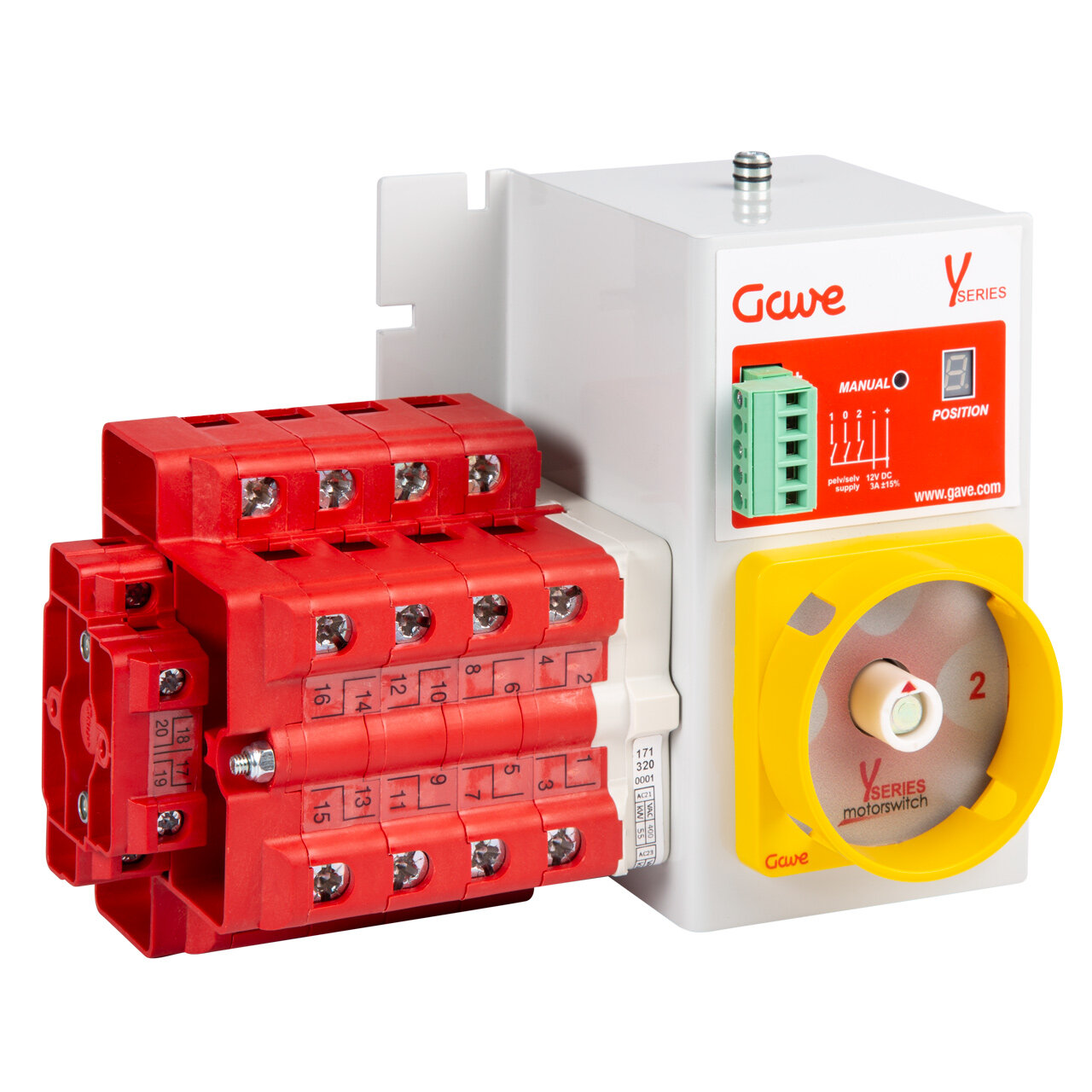

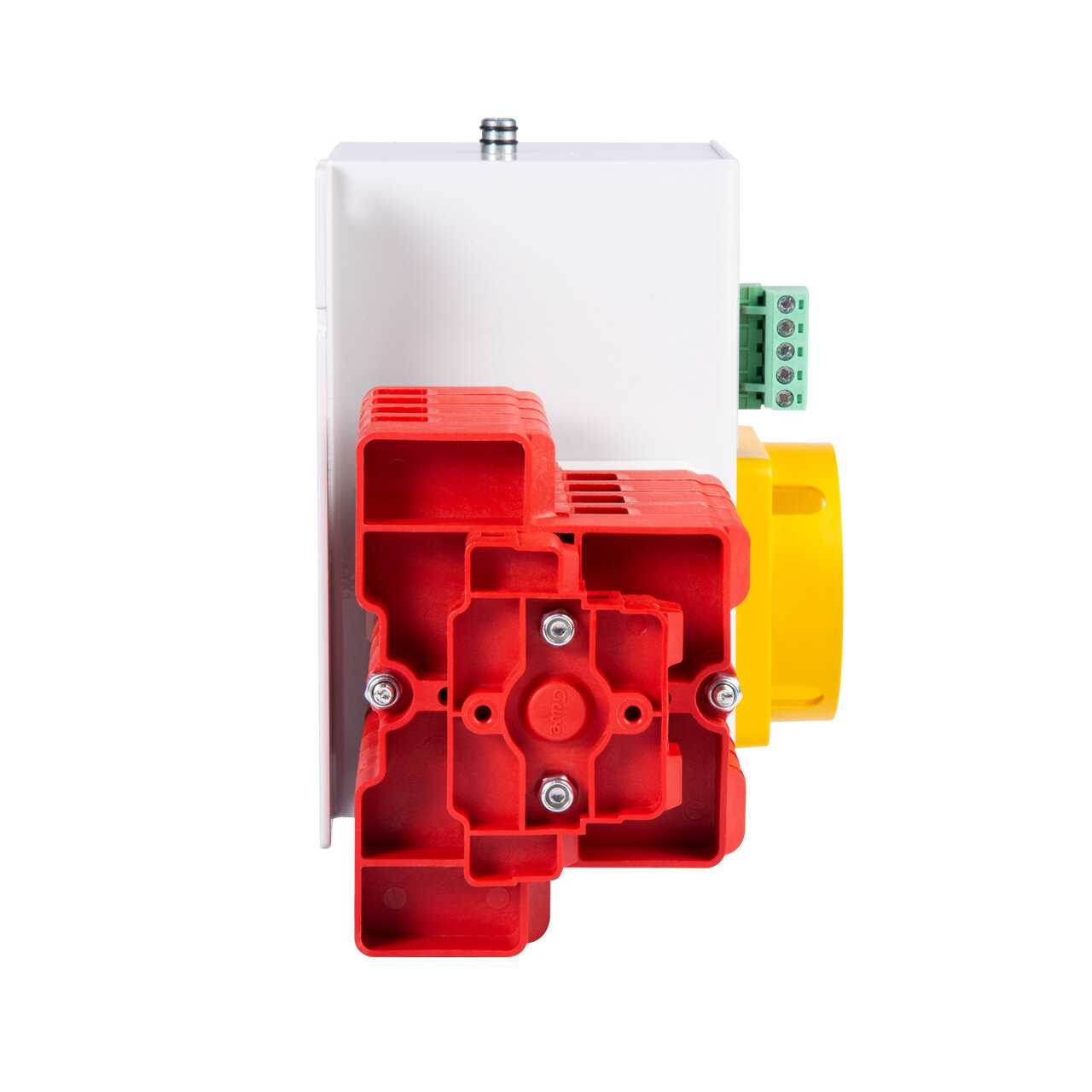

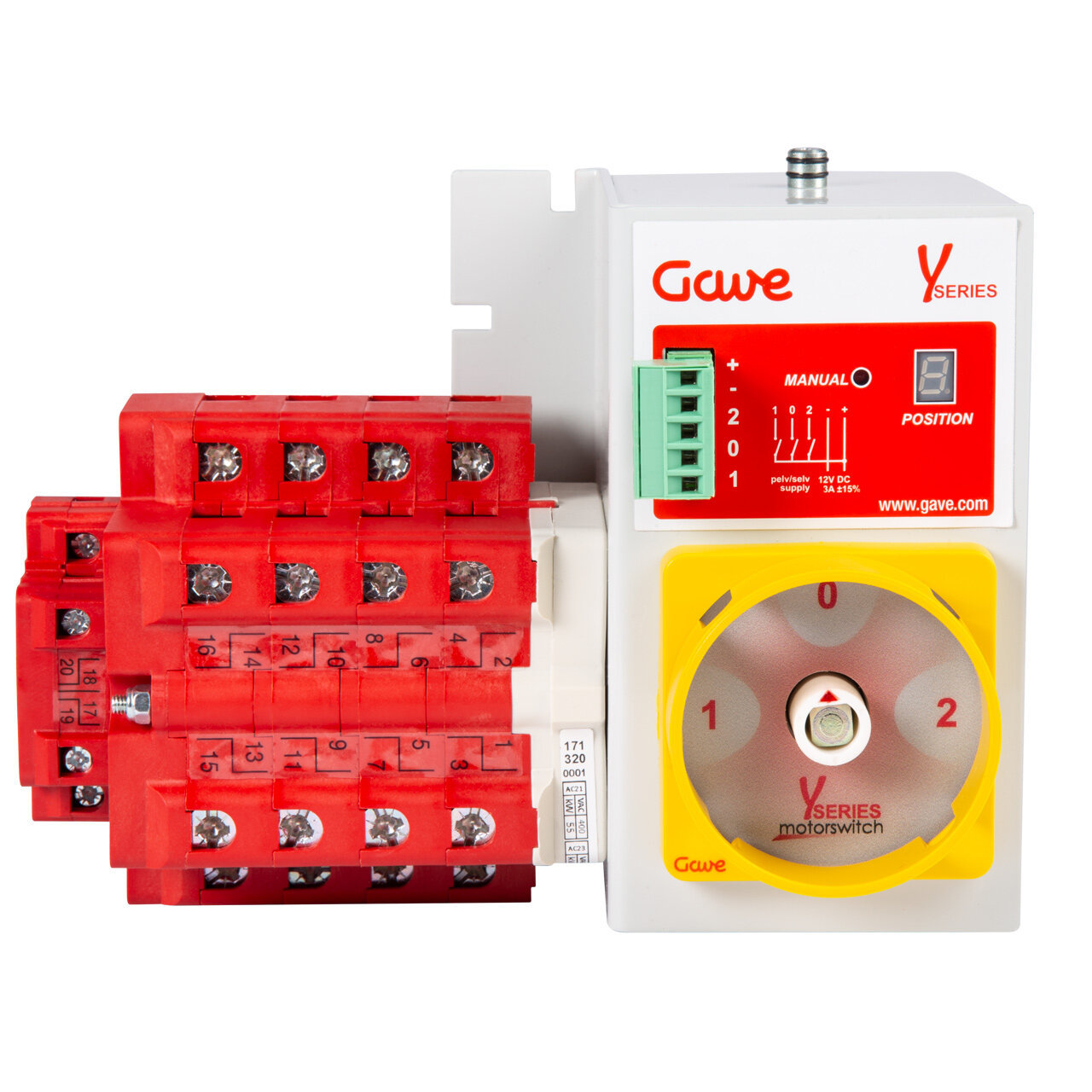

YL5639301
MOTORISED CHANGEOVER SWITCH 1-0-2 4P 125A INCOMING ON TOP. 80-230VAC

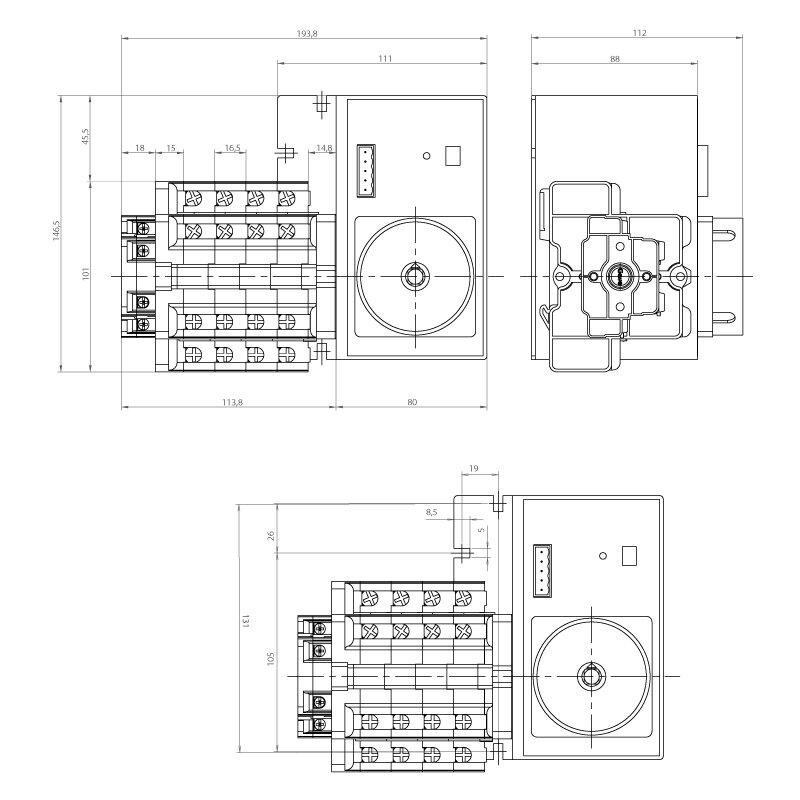

Motorised changeover switch 1-0-2 , 4 poles 125A with motor unit supply 80-230Vac . The supply incoming cables are connected on the top side of the unit and the load outgoing cables are connected on the bottom side. Size D2 dimensions 147x195x113, includes auxiliary contact 12A. Back plate mounting. Built-in internal links, mechanical and electrical interlock. Local emergency operation, includes removable padlockable handle. Display for switch position indication and operation counter.Impulse control logic. Protection against supply voltage failure . Cable clamp connection for wires 16-50mm2.
