CP004063

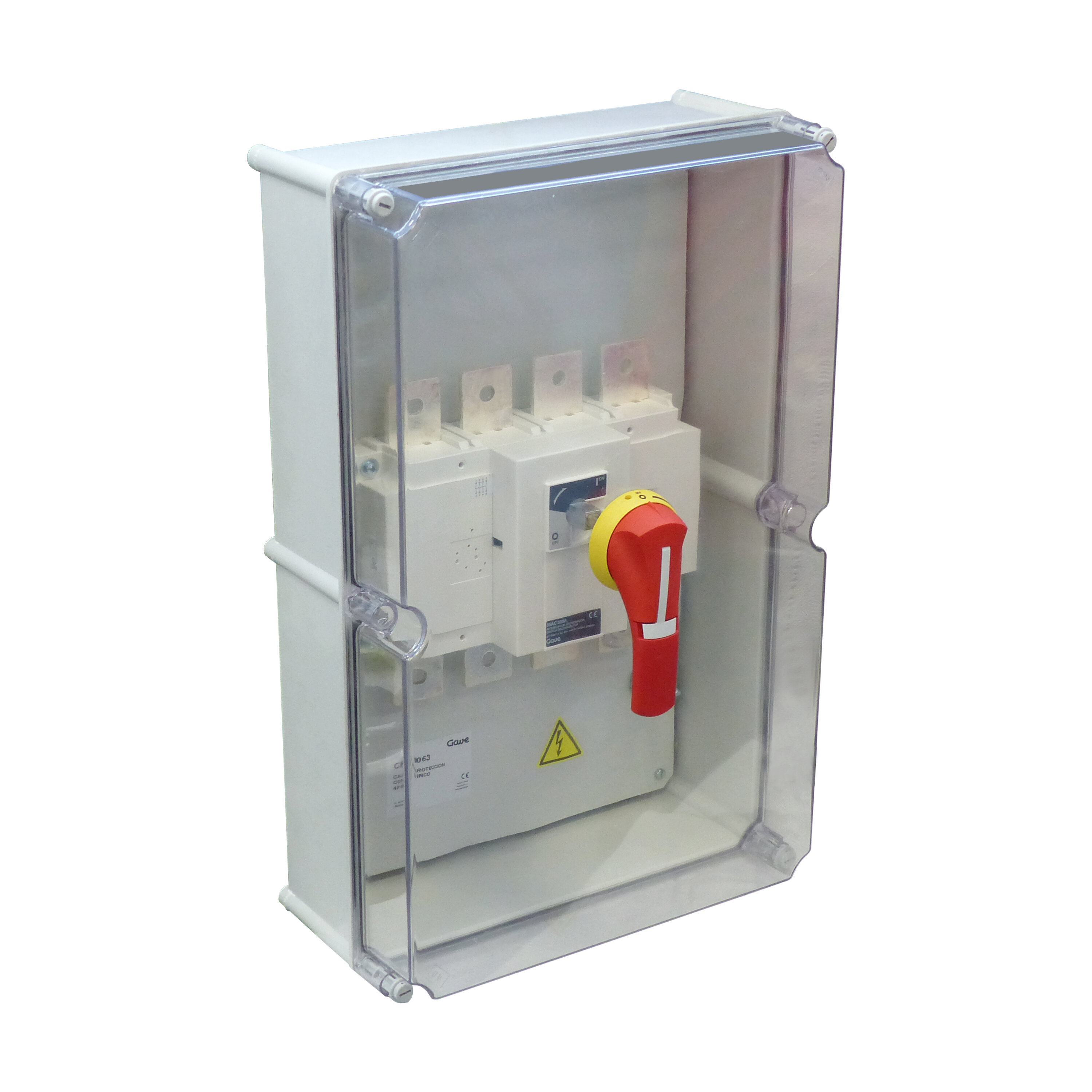

ON-OFF SWITCH 4PX630 POLYESTER ENCLOSURE TRANSPARENT COVER

Print to PDF

Code 017CP004063
EAN 8430892295192
Technical data
Nr. Poles 4
Air thermal rating (Ith) 630 A
Impulse voltage (Uimp) 12 kV
Minium Cu cable cross-section

2x105 mm2

Minimum Cu busbar cross-section

2x30x5 mm2

Maximum Cu cable cross-section

2x300 mm2

Maximum Cu busbar width

50 mm2

Tightening torque 20/- Nm
Prostpective shortcircuit current (rms) 70 kA
Associated fuse rating 630 A
Rated short-time withstand current 1s (Icw) 13 kA
Standard IEC 60947-3
