CP003020

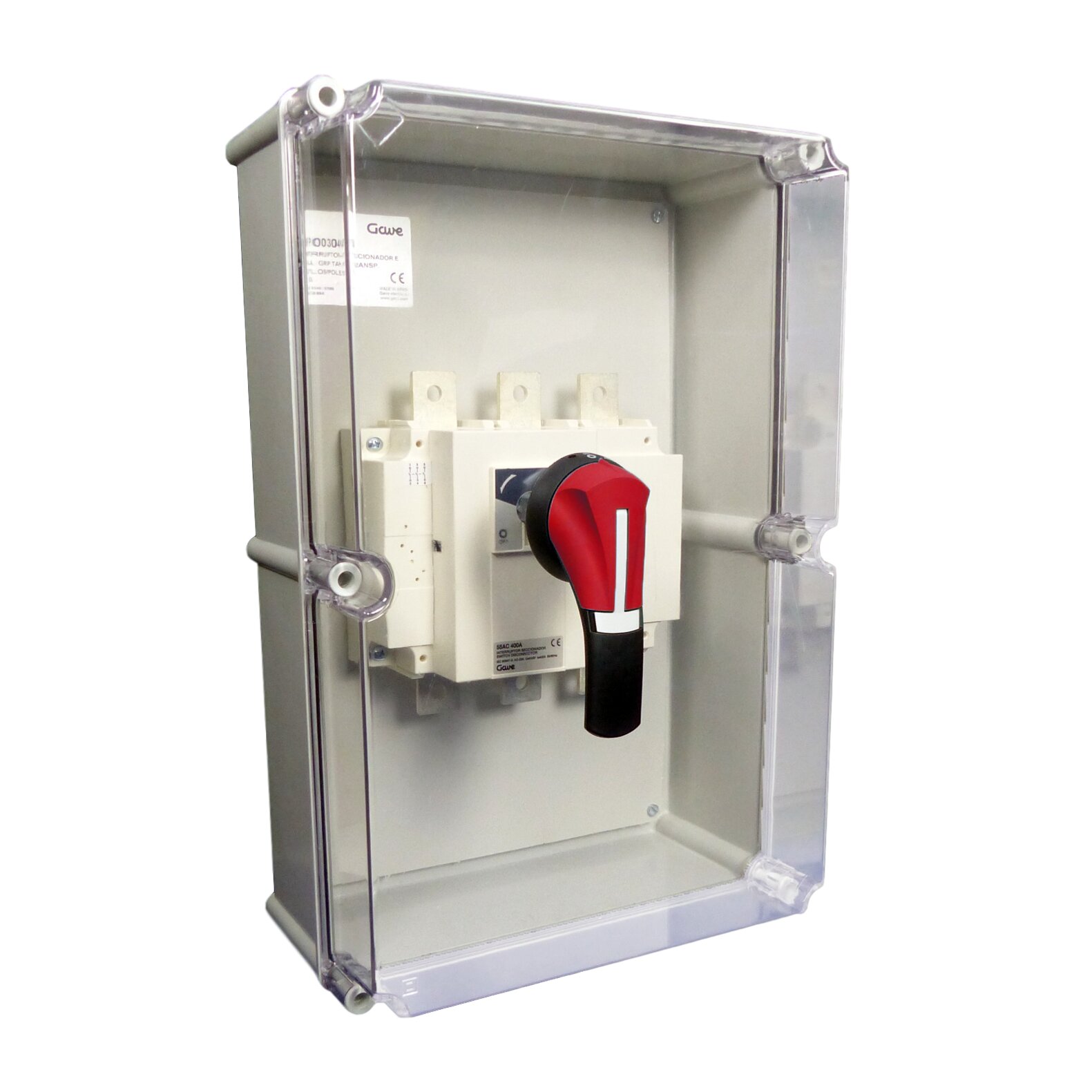

ON-OFF SWITCH 3PX200 POLYESTER ENCLOSURE TRANSPARENT COVER

Print to PDF

Code 017CP003020
EAN 8430892295116
Technical data
Nr. Poles 3
Air thermal rating (Ith) 200 A
Impulse voltage (Uimp) 8 kV
Minium Cu cable cross-section

70 mm2

Maximum Cu cable cross-section

95 mm2

Maximum Cu busbar width

32 mm2

Tightening torque 20/- Nm
Prostpective shortcircuit current (rms) 80 kA
Associated fuse rating 200 A
Rated short-time withstand current 1s (Icw) 9 kA
Standard IEC 60947-3
