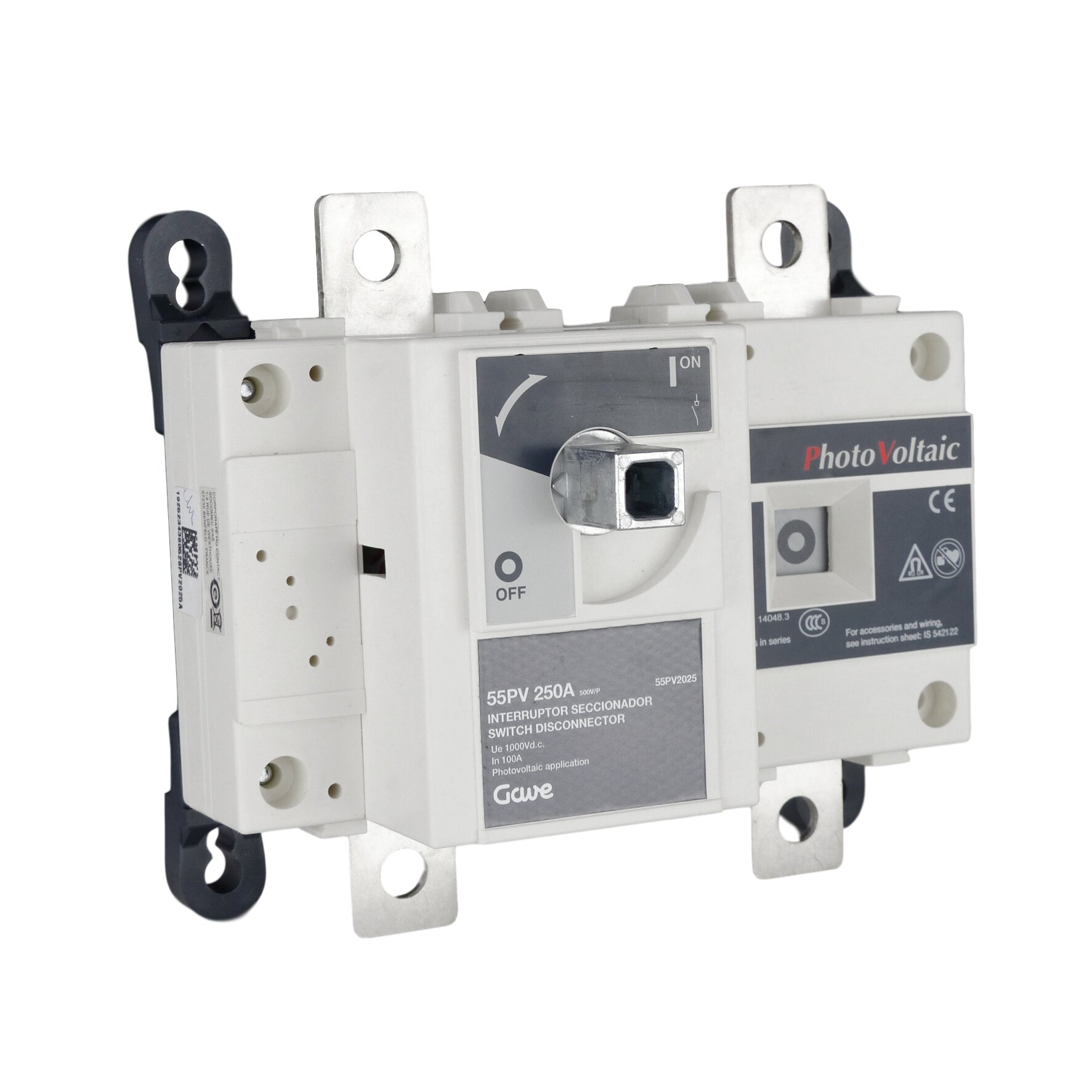

55PV2025

ON-OFF LOAD BREAK SWITCH PV 1000V - 250A

Print to PDF

Code 01755PV2025
EAN 8430892293464
Technical data
Operational rating (Ie) 250 A
Air thermal rating (Ith) 250 A
Impulse voltage (Uimp) 12 kV
Maximum Cu cable cross-section

120 mm2

Maximum Cu busbar width

32 mm2

Tightening torque 10 Nm
Rated short-time withstand current 1s (Icw) 5 kA
Rated short-time withstand current 0,3s (Icw) 10 kA
