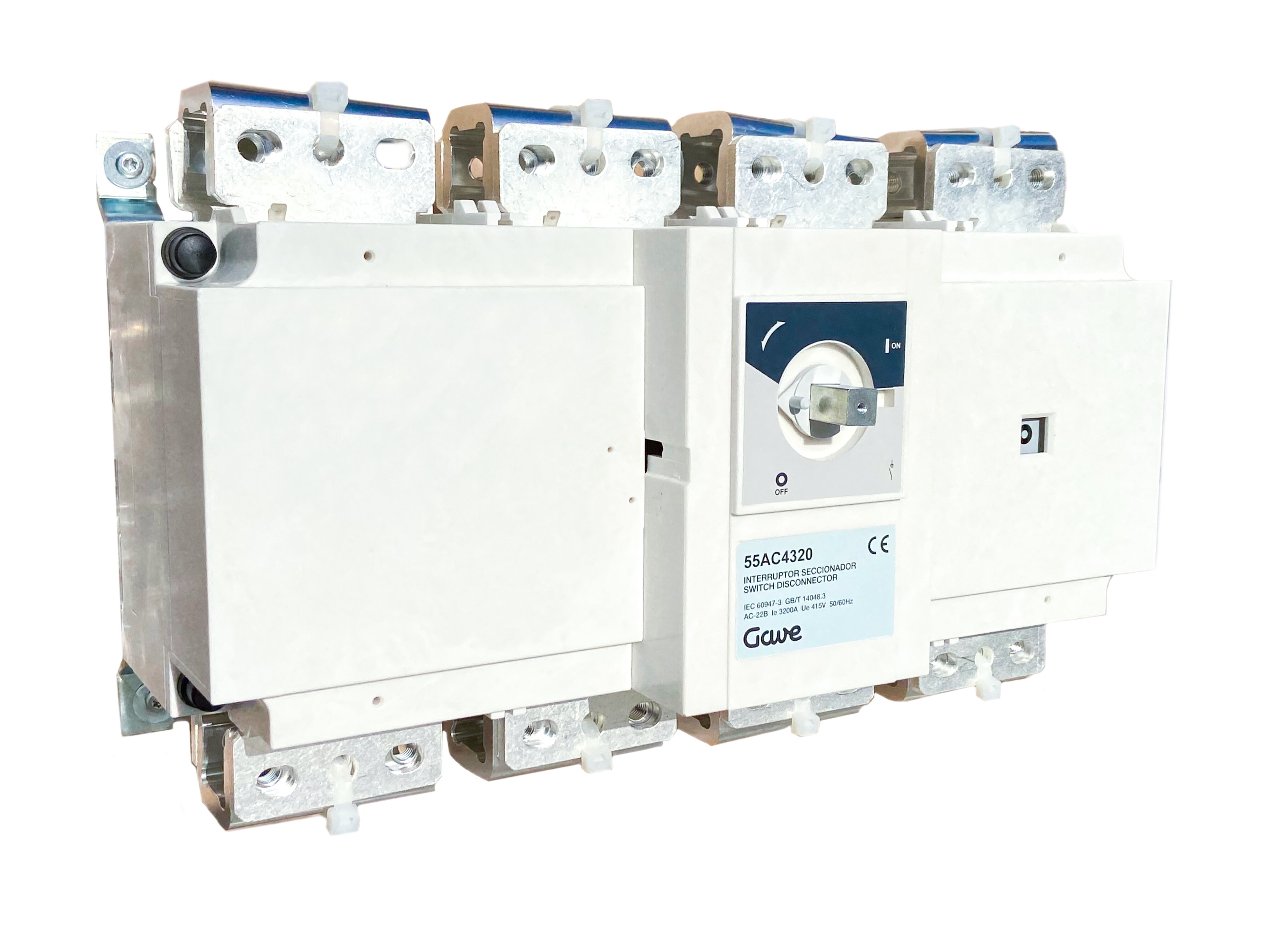

55AC4320
ON-OFF LOAD BREAK SWITCH 4P x 3200A
| Code | 01755AC4320 |
| EAN | 8430892293006 |
| Nr. Poles | 4 |
| Air thermal rating (Ith) | 3200 A |
| Impulse voltage (Uimp) | 12 kV |
| Minimum Cu busbar cross-section | 4x100x5 mm2 |
| Maximum Cu busbar width | 100 mm2 |
| Tightening torque | 40/- Nm |
| Prostpective shortcircuit current (rms) | 100 kA |
| Associated fuse rating | 2x1250 |
| Rated short-time withstand current 1s (Icw) | 50 kA |
| Standard | IEC 60947-3 |
