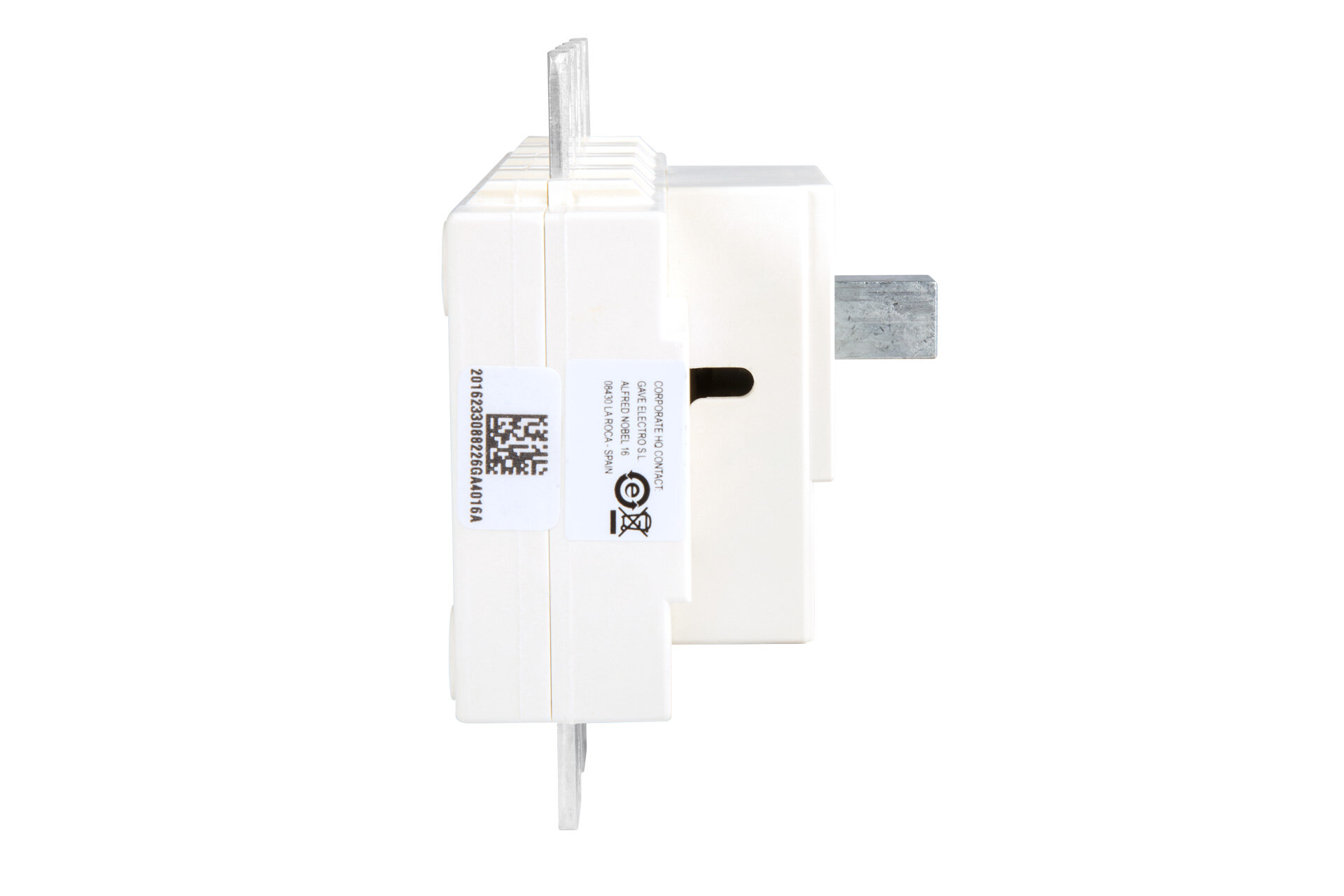

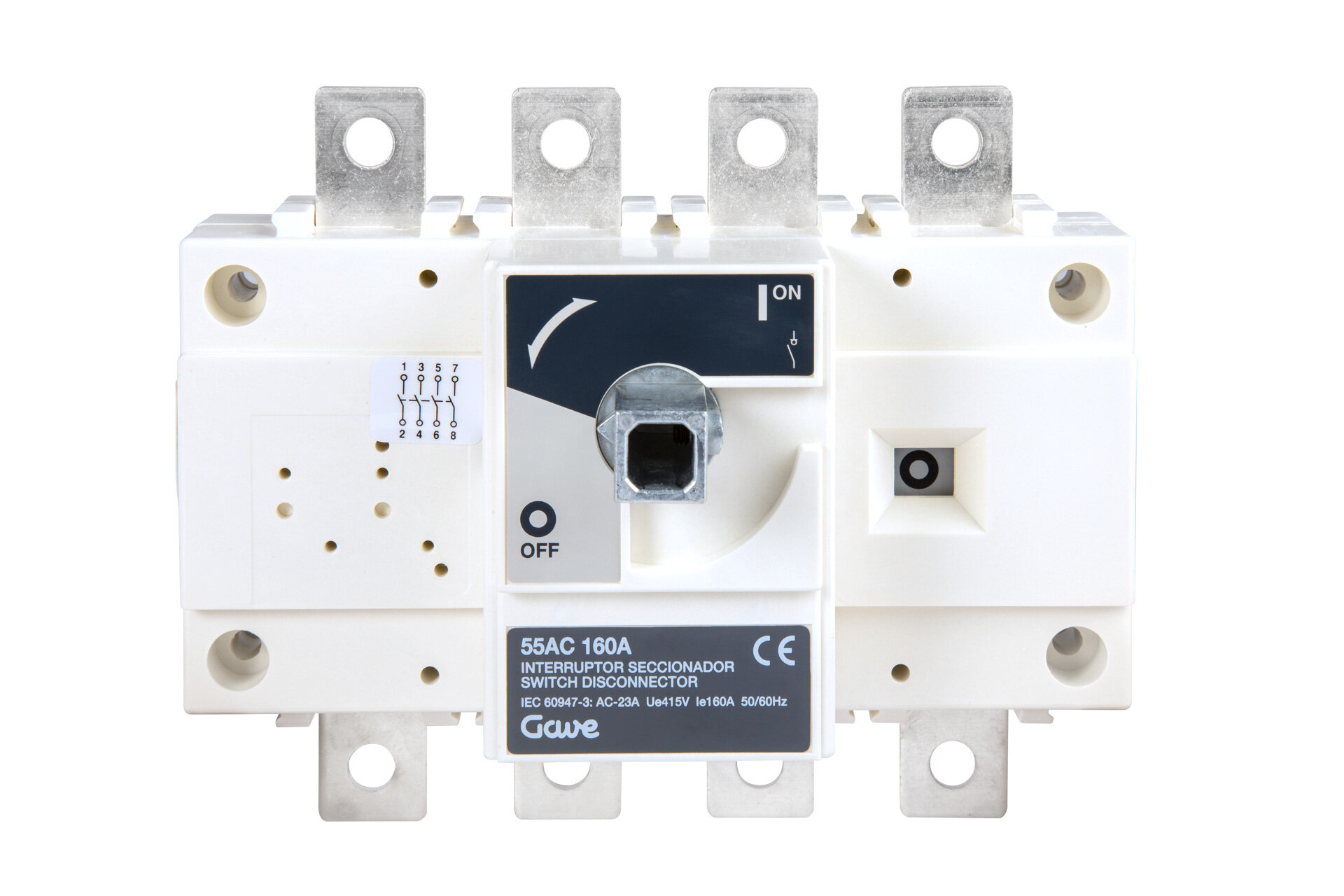

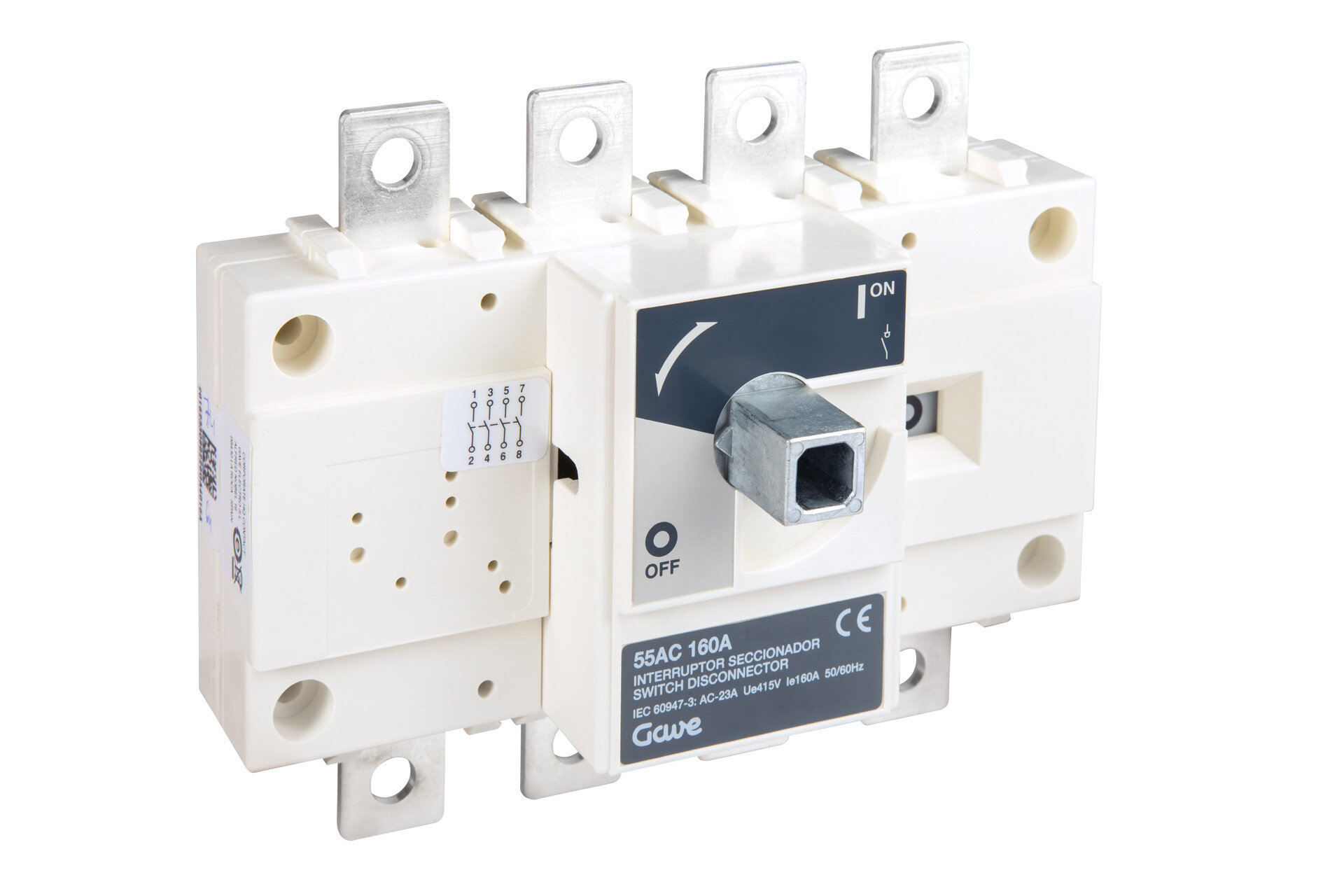

55AC4016
ON-OFF LOAD BREAK SWITCH 4P x 160A
Code | 01755AC4016 |
EAN | 8430892284608 |
Nr. Poles | 4 |
Air thermal rating (Ith) | 160 A |
Impulse voltage (Uimp) | 8 kV |
Minium Cu cable cross-section | 50 mm2 |
Maximum Cu cable cross-section | 95 mm2 |
Maximum Cu busbar width | 25 mm2 |
Tightening torque | 9/- Nm |
Prostpective shortcircuit current (rms) | 100 kA |
Associated fuse rating | 160 A |
Rated short-time withstand current 1s (Icw) | 7 kA |
Standard | IEC 60947-3 |
