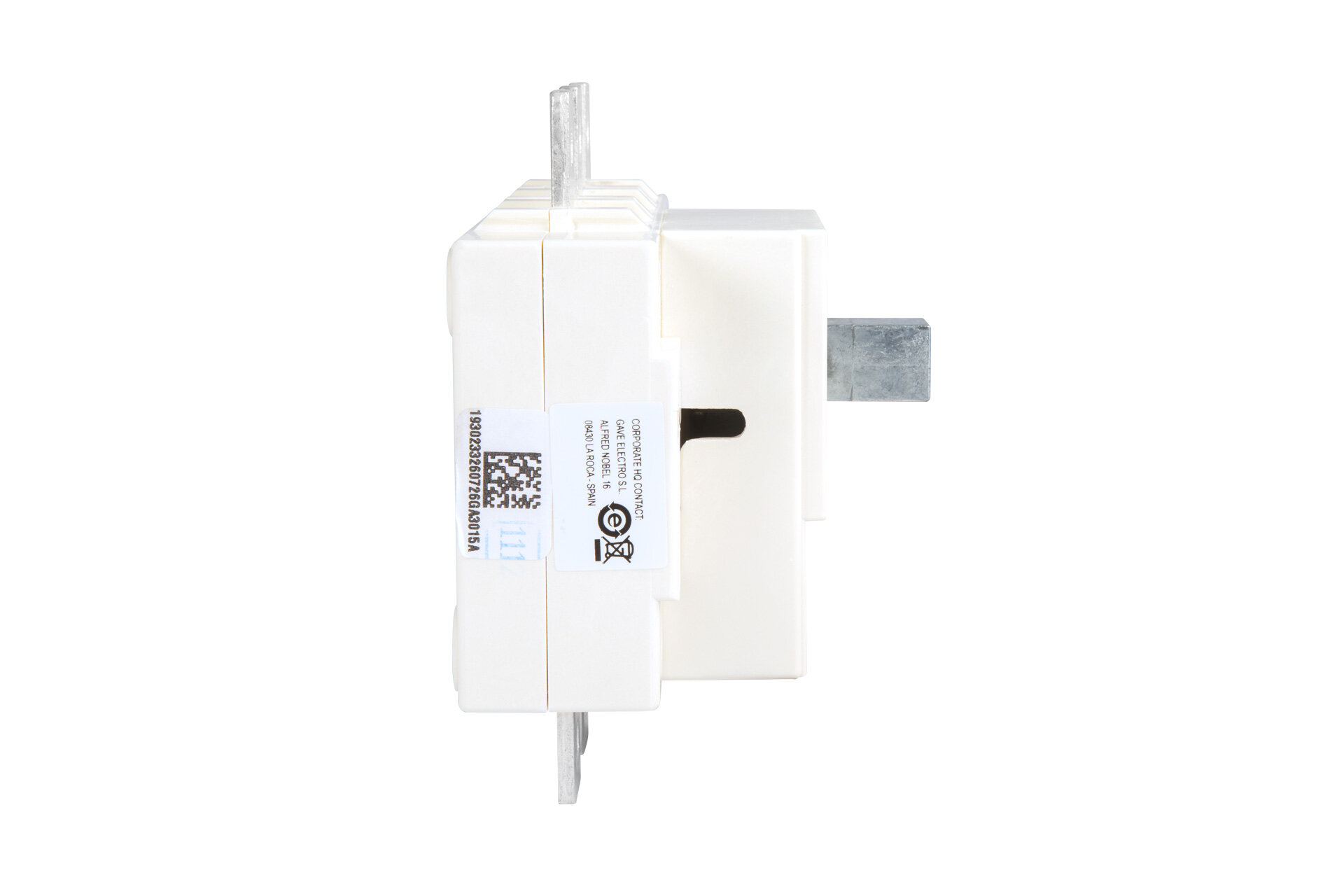

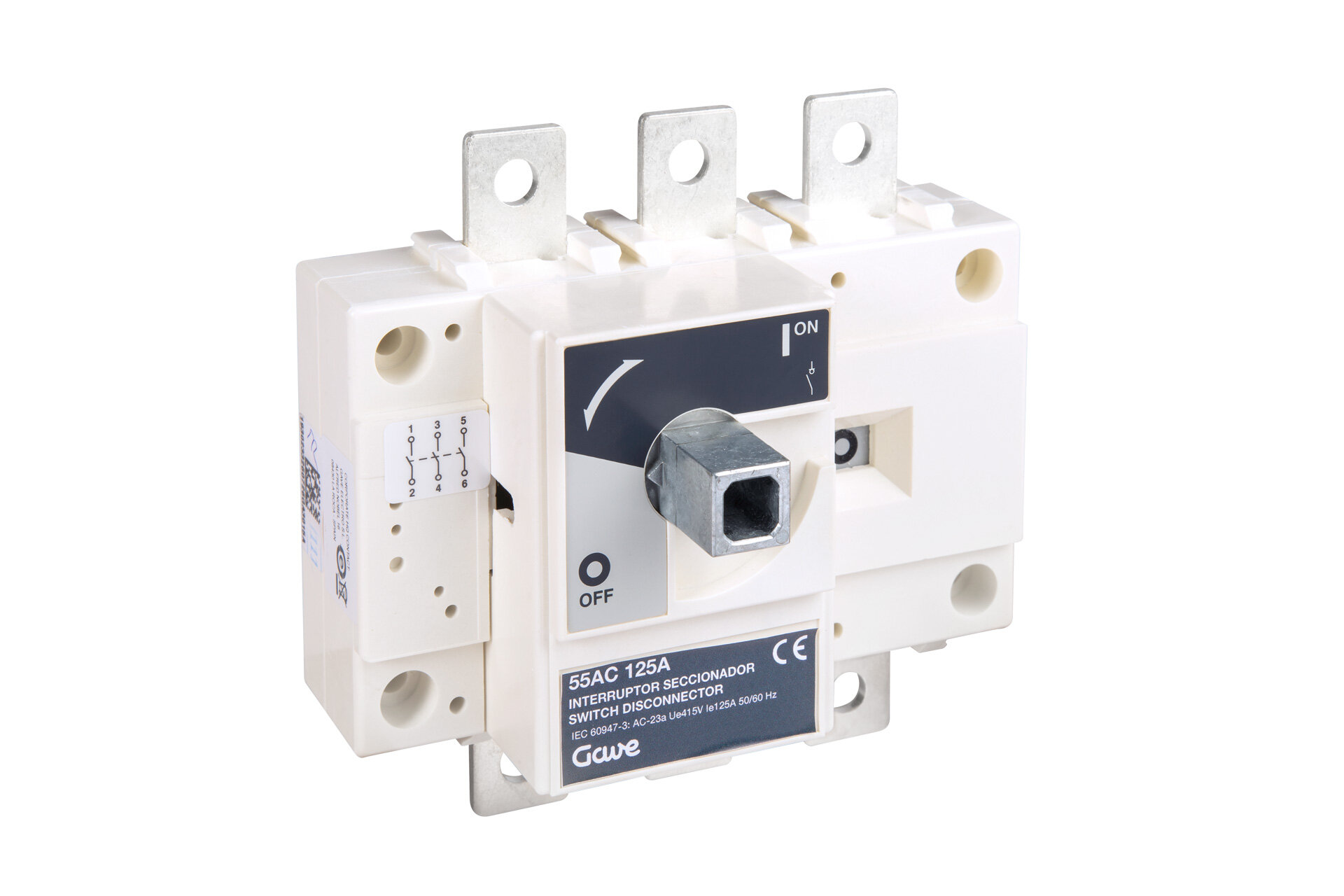

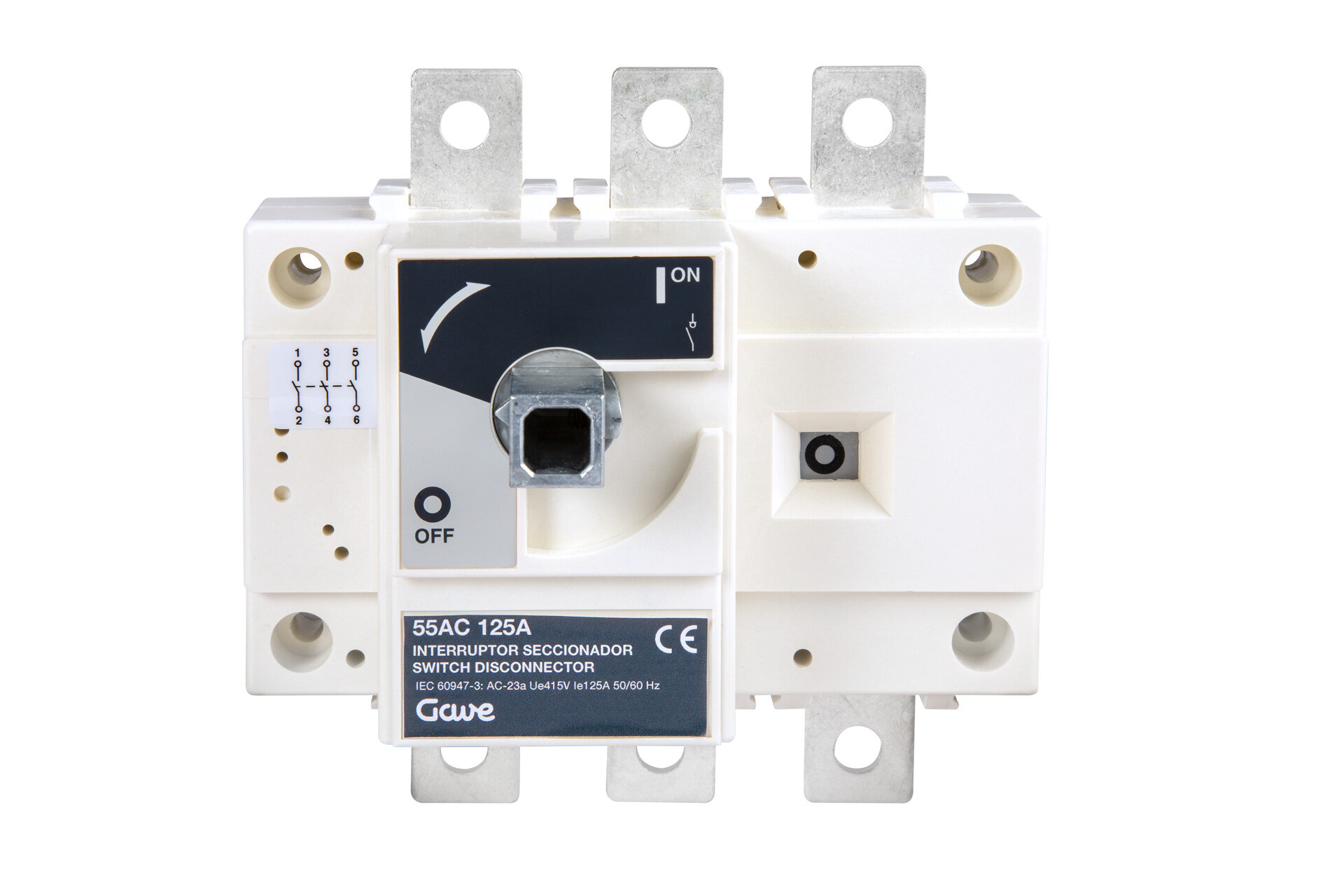

55AC3012
ON-OFF LOAD BREAK SWITCH 3P x 125A
Code | 01755AC3012 |
EAN | 8430892284523 |
Nr. Poles | 3 |
Air thermal rating (Ith) | 125 A |
Impulse voltage (Uimp) | 8 kV |
Minium Cu cable cross-section | 35 mm2 |
Maximum Cu cable cross-section | 50 mm2 |
Maximum Cu busbar width | 25 mm2 |
Tightening torque | 9/- Nm |
Prostpective shortcircuit current (rms) | 100 kA |
Associated fuse rating | 125 A |
Rated short-time withstand current 1s (Icw) | 7 kA |
Standard | IEC 60947-3 |
