LD5617100

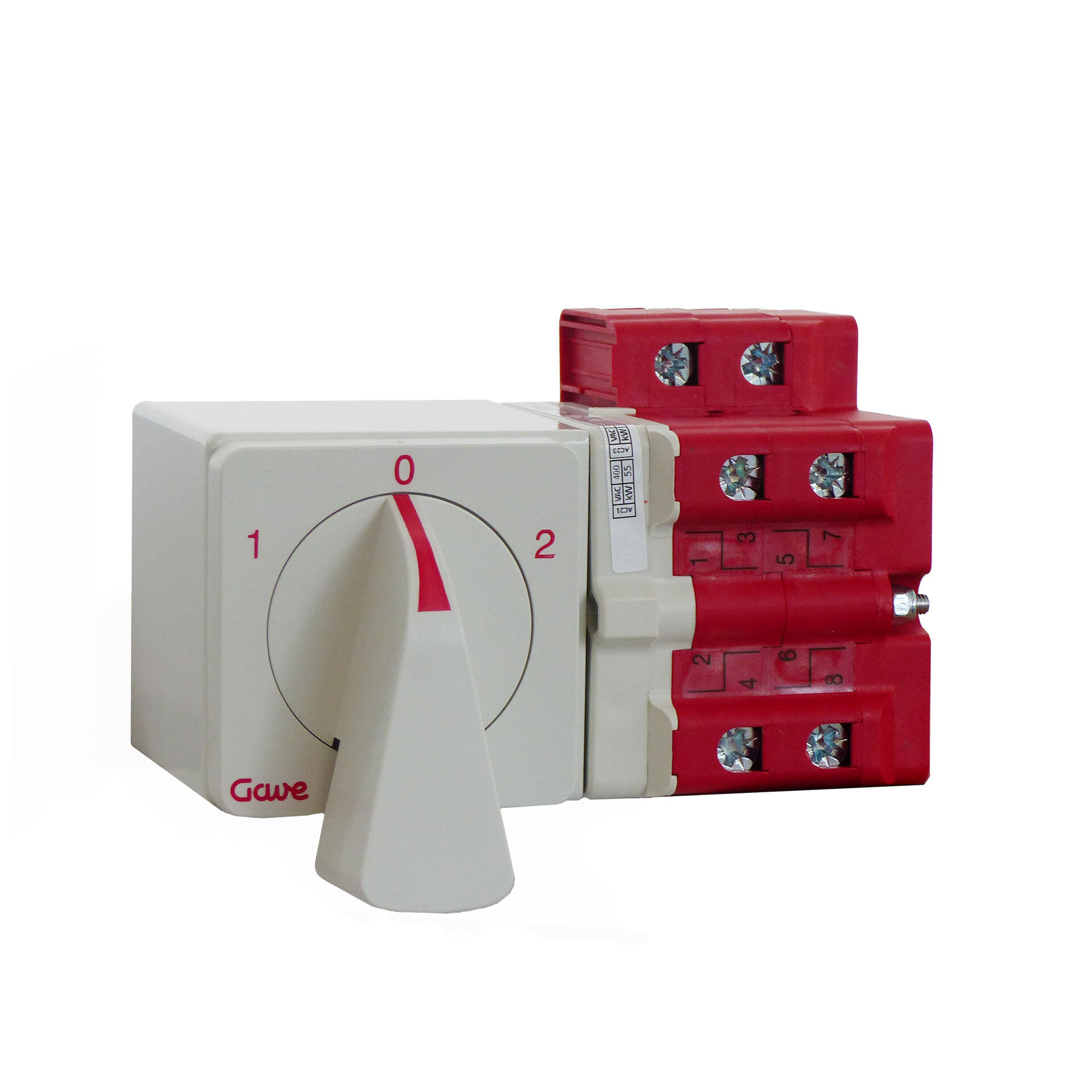

LD CHANGEOVER SWITCH 2P 100A

LD changeover cam switch, IP20 1-0-2. DIN rail mounting. 2 poles 100A. Size D2. Ergonomic screwless quick-mount handle. Connection with cage terminals for 16-50 mm² cable. Compatible with multiple accessories from the A5 series.

Code 009LD5617100
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Package height (mm) 150
Package width (mm) 170
Package length (mm) 205
Technical data
Nr. Poles 2
Auxiliary -
Operational rating (Ie) 100
Air thermal rating (Ith) 100 A
Cable cross-section (AWG) 16 - 1
Wire section flexible

16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

100/100 A (415 V)

100/100 A (500 V)
Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

30 kW (3x230 V)

55 kW (3x415 V)

75 kW (3x500 V)
Mixed load AC-22A

30 kW (3x230 V)

55 kW (3x415 V)

55 kW (3x500 V)
Motor load AC-23A

22 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)
Standard IEC 60947-3
