AB55625F3

FIRE-RATED SWITCH F300 6P 25A
6 pole 25A switch disconnector fire rated class F300 according to EN 12101-3. Enclosure 1AL in aluminium painted in grey color RAL7032 with surface coating to protect against corrosion, dimensions 100x100x73. Protection degree IP65. Threaded M25 holes, one on top and one on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 2,5-6mm² cable.

Print to PDF

Code 009AB55625F3
EAN 8430892216296

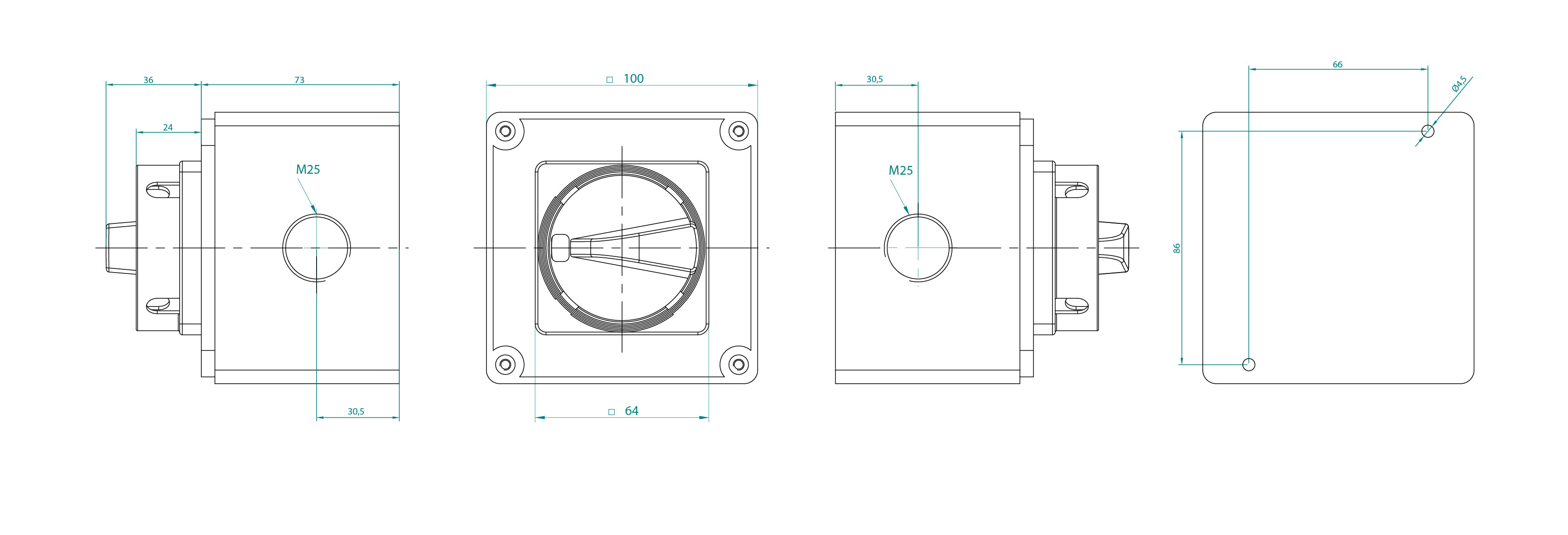

Dimensions
Product height 100
Product width 100
Product length 73
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 6
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Wire section rigid 2,5 - 6 mm2
Wire section flexible 2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)

Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)

Mixed load AC-22A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)

Motor load AC-23A

5,5 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)

Standard

IEC 60947-3

EN 12101-3

Fire Rating F300
