ON-OFF SWITCH DISCONNECTOR 3P 40A D1 F300 PROTEC

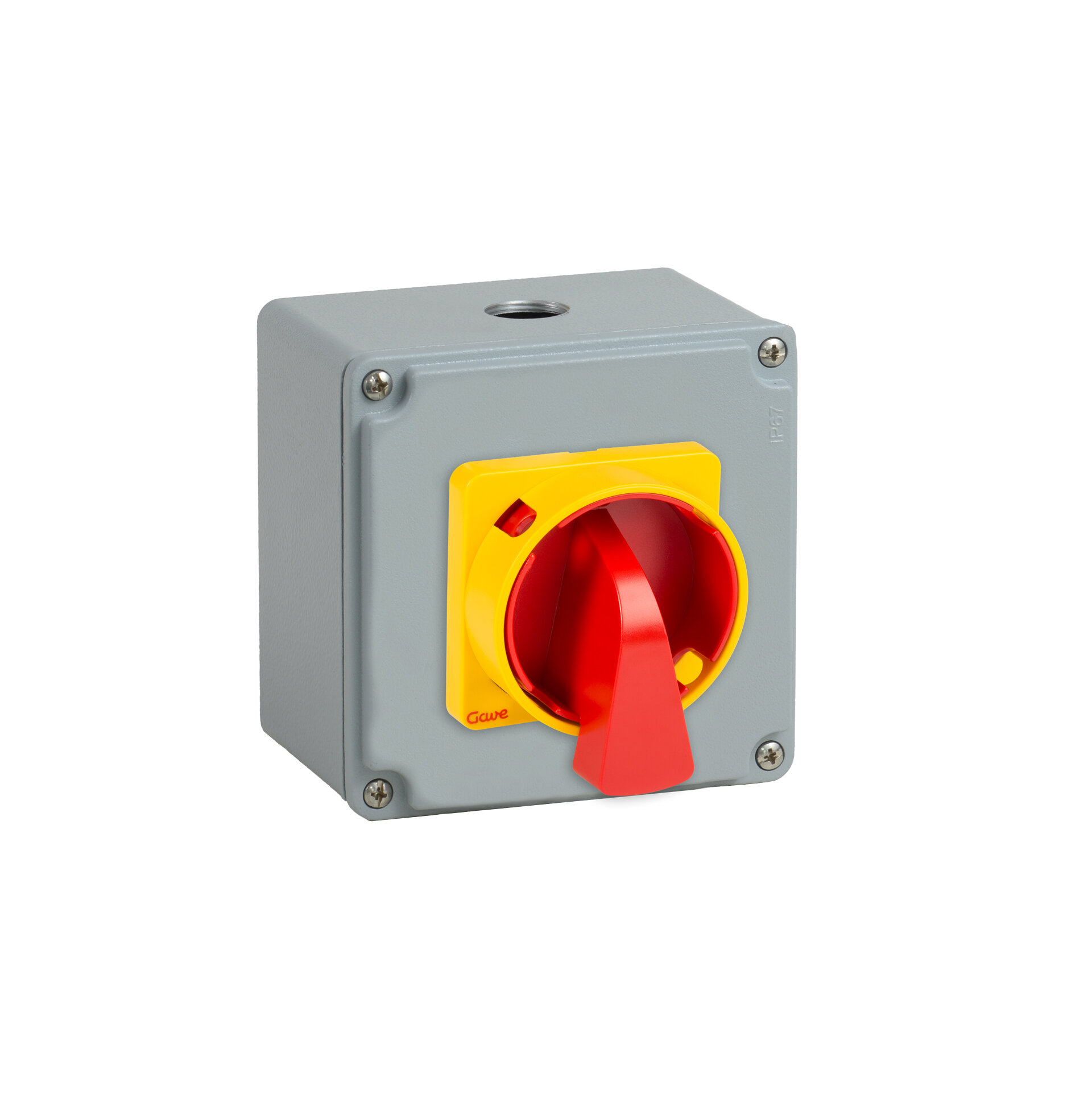

3 pole 40A switch disconnector fire rated class F300 according to EN 12101-3. Enclosure 2AL in aluminium painted in grey color RAL7032 with surface coating to protect against corrosion, dimensions 130x130x90. Protection degree IP65. Threaded M25 holes, one on top and one on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 6-16mm² cable.

Print to PDF

Code 009AB55241F3

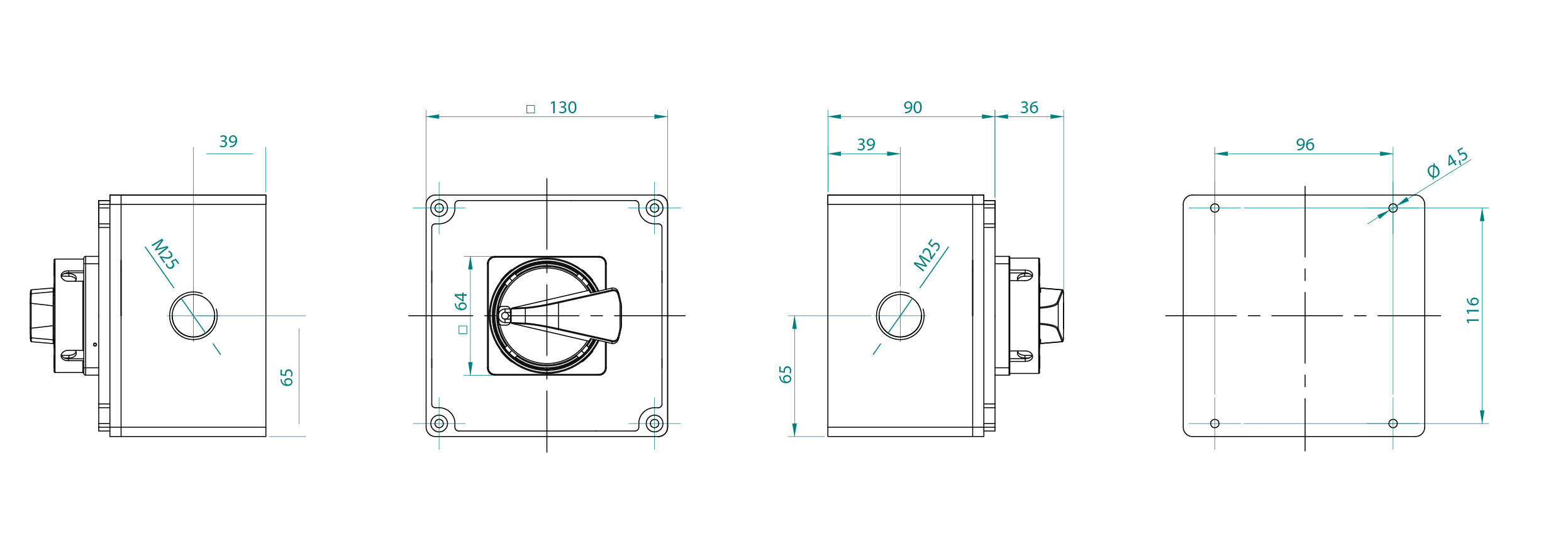

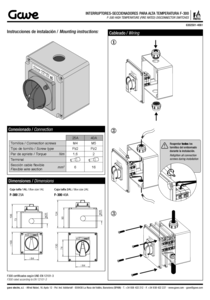

Dimensions
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 3
Operational rating (Ie) 40 A
Air thermal rating (Ith) 40 A
Wire section rigid 6 - 25 mm2
Wire section flexible 6 - 16 mm2
Tightening torque 2 Nm
Connection screws M5
Terminal Terminal
Max. fuse protection (gG/aM)

40/32 A (415 V)

40/32 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

15 kW (3x230 V)

22 kW (3x415 V)

30 kW (3x500 V)
Mixed load AC-22A

11 kW (3x230 V)

22 kW (3x415 V)

22 kW (3x500 V)
Motor load AC-23A

11 kW (3x230 V)

18,5 kW (3x415 V)

22 kW (3x500 V)
Standard

IEC 60947-3

EN 12101-3
Fire Rating F300
