AC553910C

ON-OFF SWITCH DISCONNECTOR 4P.125A. PC ENCLOSED IP65 PADLOCKABLE GREY/BLACK + EMC

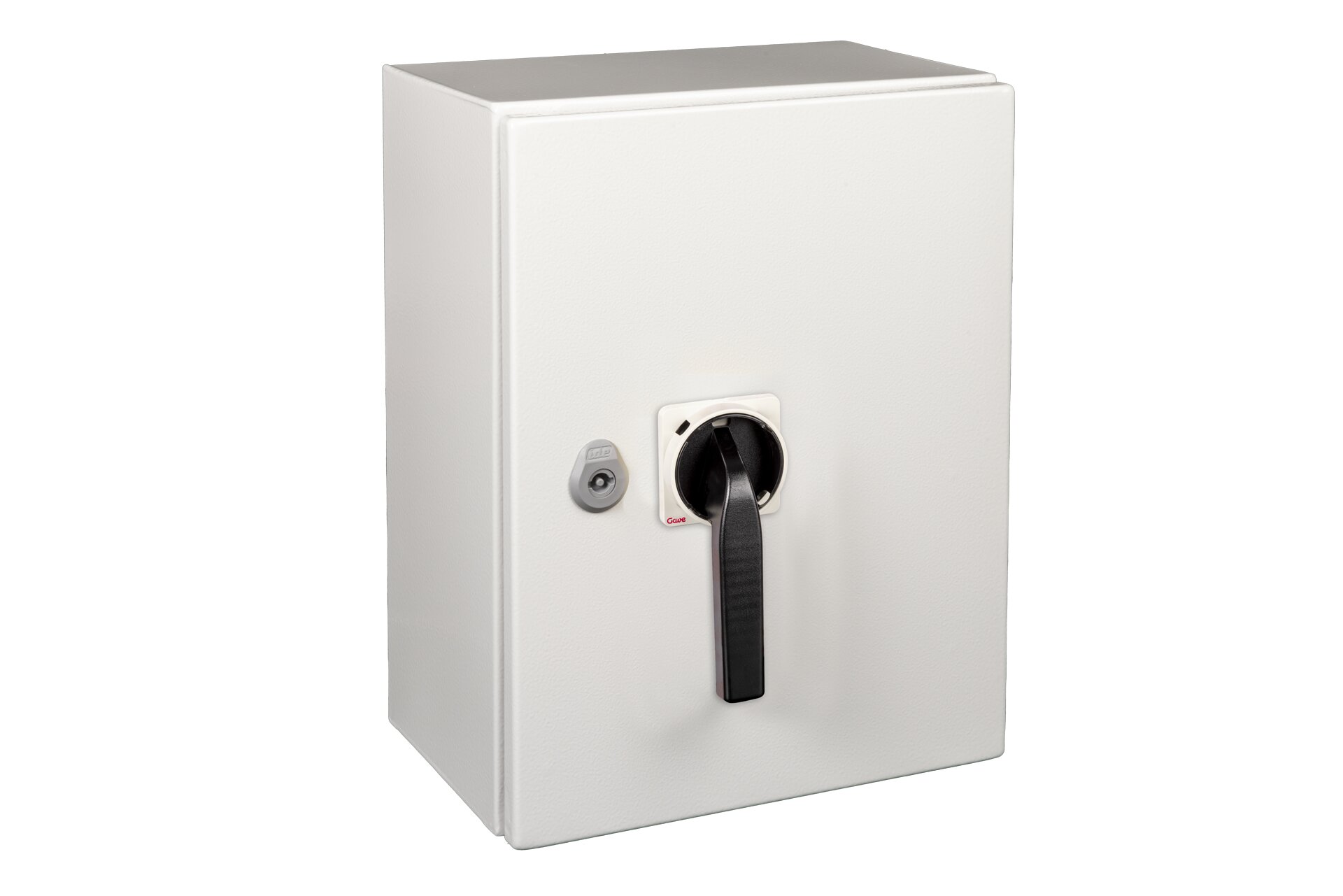

4-pole 125A safety switch in IP65 enclosure. E3 sheet steel enclosure suitable for indoor or outdoor use in RAL7035 grey color, dimensions 300x400x200. High impact resistance IK10. Base mounted switch with extended shaft and interlock in closed position. Metal shielding plate for EMC electromagnetic compatibility. Grey / Black padlockable handle (up to 4 padlocks of 8mm diameter). Earthing terminal. Connection with cage terminals for 16-50 mm² cable.

Print to PDF

Code 009AC553910C
EAN 8430892351089
Dimensions
Product height 300
Product width 400
Product length 200
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Technical data
Nr. Poles 4
Operational rating (Ie) 125
Air thermal rating (Ith) 125 A
Cable cross-section (AWG) 16 - 1
Wire section flexible

16 - 50 mm2

Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

125/100 A (415 V)

125/100 A (500 V)

Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

37 kW (3x230 V)

75 kW (3x415 V)

90 kW (3x500 V)

Mixed load AC-22A

37 kW (3x230 V)

75 kW (3x415 V)

90 kW (3x500 V)

Motor load AC-23A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)

UL Electric characteristics

10 hp 1-fase (110-120 V)

15 hp 1-fase (220-240 V)

25 hp 3-fase (220-240 V)

30 hp 3-fase (380-415 V)

40 hp 3-fase (440-480 V)

50 hp 3-fase (550-600 V)

Standard

IEC 60947-3

UL 508

Enclosure type METAL
