AC5536109H

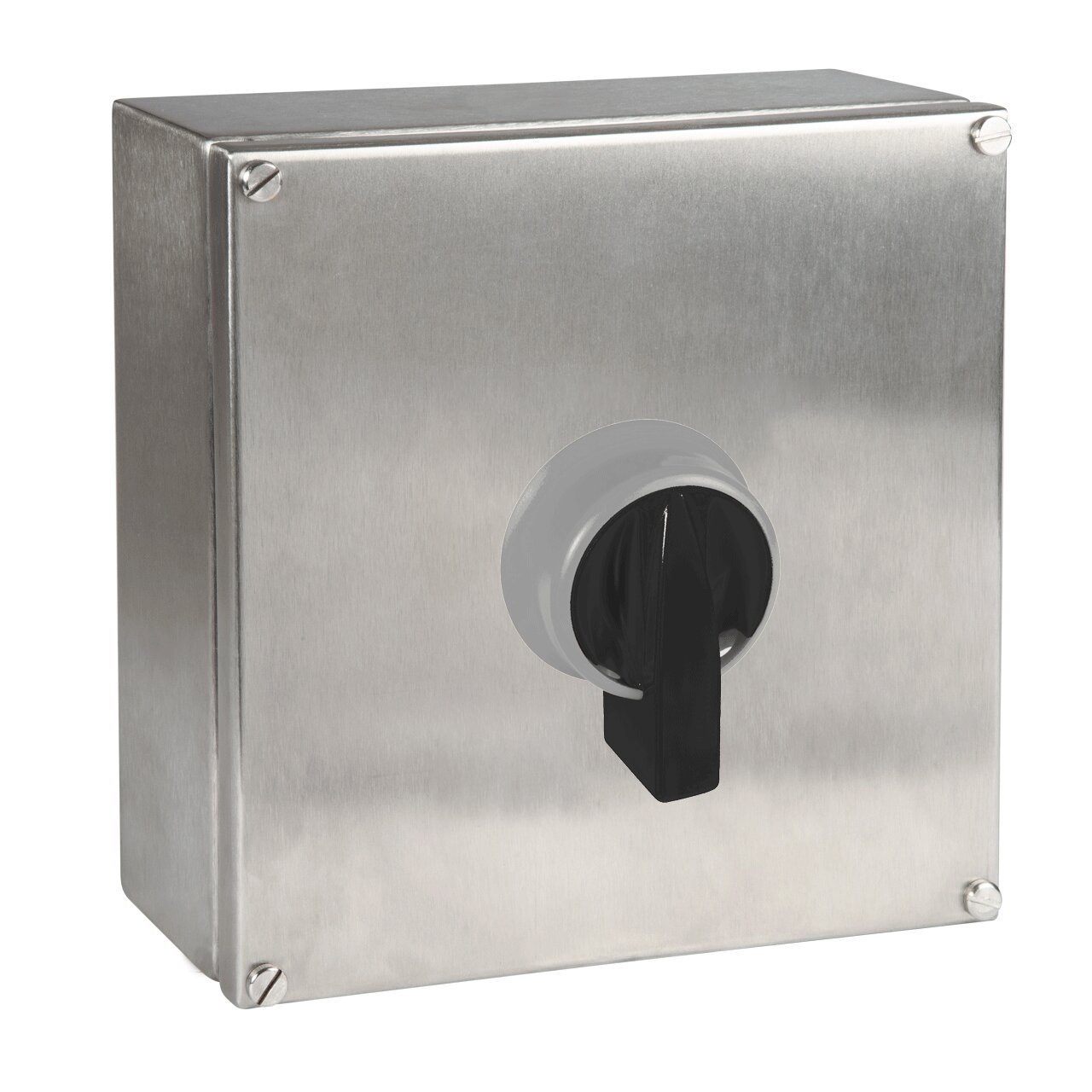

SWITCH DISCONNECTOR 4P.63A. IP69K PADLOCKABLE HANDLE IN INOX ENCLOSURE

Print to PDF

Code 009AC5536109H
EAN 8430892316293
Dimensions
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 4
Operational rating (Ie) 63 A
Air thermal rating (Ith) 70 A
Cable cross-section (AWG) 16 - 1
Wire section flexible

16 - 50 mm2

Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

63/63 A (415 V)

63/63 A (500 V)

Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

22 kW (3x230 V)

45 kW (3x415 V)

45 kW (3x500 V)

Mixed load AC-22A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)

Motor load AC-23A

15 kW (3x230 V)

22 kW (3x415 V)

30 kW (3x500 V)

UL Electric characteristics

5 hp 1-fase (110-120 V)

10 hp 1-fase (220-240 V)

15 hp 3-fase (220-240 V)

25 hp 3-fase (380-415 V)

30 hp 3-fase (440-480 V)

32 hp 3-fase (550-600 V)

Standard IEC 60947-3 / UL 508
Enclosure type INOX
Impact protection IK IK10
