ABG561007

SWITCH 6P 16A D0 PADLOCKABLE ENCLOSURE PCB 1NO+1NC
6-pole 16A + 1NO+1NC auxiliary contact safety switch in IP65 enclosure. E0 polycarbonate enclosure suitable for indoor or outdoor use, RAL7035 grey cover and black base, dimensions 100x130x90. M20 easy-open knockouts, two on top, two on bottom and two at the base. 4 points surface fixing. Base mounted switch with extended shaft and interlock in closed position. Red / yellow padlockable handle (up to 4 padlocks of 8mm diameter). Earthing terminal. Connection with cage terminals for 2.5-6 mm² cable.

Print to PDF

Code 009ABG561007
EAN 8430892245623
Dimensions
Logistic Data
Packing units 1
Technical data
Nr. Poles 6
Operational rating (Ie) 16 A
Air thermal rating (Ith) 20 A
Cable cross-section (AWG) 10
Wire section rigid 2,5 - 6 mm2
Wire section flexible 2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)

Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

5,5 kW (3x230 V)

11 kW (3x415 V)

15 kW (3x500 V)

Mixed load AC-22A

4 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)

Motor load AC-23A

3 kW (3x230 V)

5,5 kW (3x415 V)

7,5 kW (3x500 V)

UL Electric characteristics

1,5 hp 1-fase (110-120 V)

2 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

2 hp 3-fase (380-415 V)

3 hp 3-fase (440-480 V)

5 hp 3-fase (550-600 V)

Standard

IEC 60947-3

UL 508

Enclosure type PLASTIC

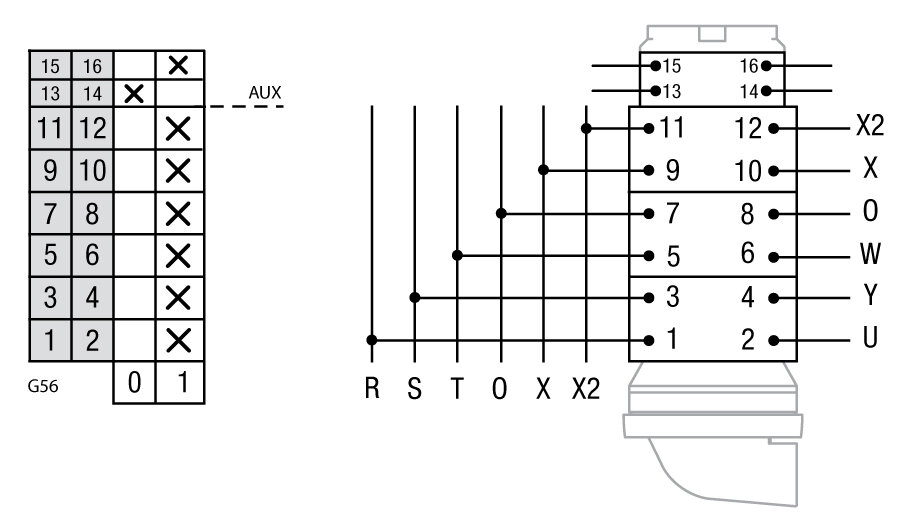

Auxiliary 1NO+1NC
