ABG532107

SWITCH 4P 25A D1 PADLOCKABLE ENCLOSURE PCB 1NO+1NC
4-pole 25A + 1NO+1NC auxiliary contact safety switch in IP65 enclosure. E0 polycarbonate enclosure suitable for indoor or outdoor use, RAL7035 grey cover and black base, dimensions 100x130x90. M20 easy-open knockouts, two on top, two on bottom and two at the base. 4 points surface fixing. Base mounted switch with extended shaft and interlock in closed position. Red / yellow padlockable handle (up to 4 padlocks of 8mm diameter). Earthing terminal. Connection with cage terminals for 2.5-6 mm² cable.

Print to PDF

Code 009ABG532107
EAN 8430892165150
Dimensions
Logistic Data
Customs code 85365080
Packing units 1
Technical data
Nr. Poles 4
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Cable cross-section (AWG) 6
Wire section rigid

6 - 25 mm2
Wire section flexible

6 - 16 mm2
Tightening torque 2 Nm
Connection screws M5
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Mixed load AC-22A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Motor load AC-23A

5,5 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

3 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

3 hp 3-fase (380-415 V)

5 hp 3-fase (440-480 V)

7 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Enclosure type PLASTIC

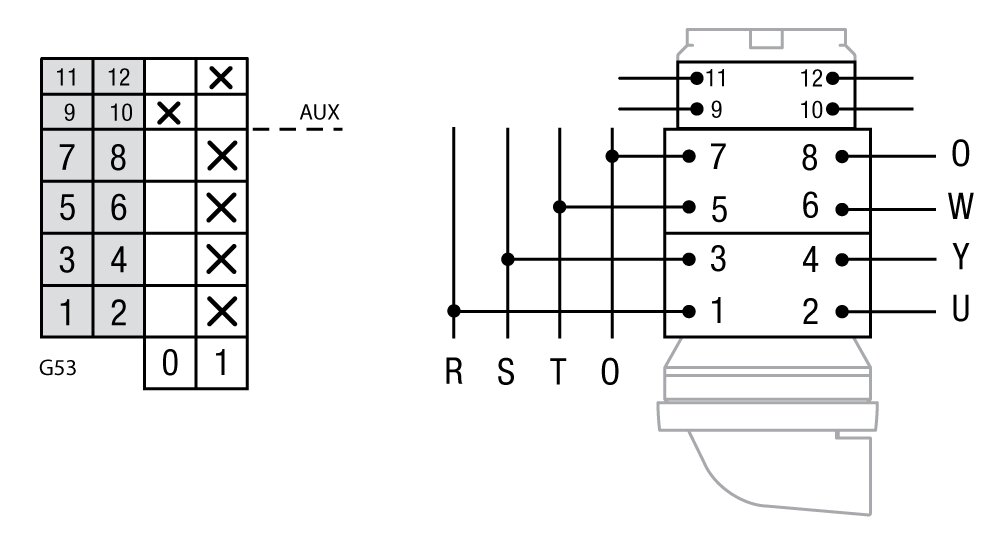

Auxiliary 1NO+1NC
