AB553610C

ON-OFF SWITCH DISCONNECTOR 4P.63A. ENCLOSED IP65 PADLOCKABLE RED/YELLOW + EMC
4-pole 63A safety switch in IP65 enclosure. E1 polycarbonate enclosure suitable for indoor or outdoor use, RAL7035 grey cover and black base, dimensions 130x160x125. M20/M25 easy-open knockouts, two on top, two on bottom and two at the base. 4 points surface fixing. Base mounted switch with extended shaft and interlock in closed position. Metal shielding plate for EMC electromagnetic compatibility. Red / yellow padlockable handle (up to 4 padlocks of 8mm diameter). Earthing terminal. Connection with cage terminals for 16-50 mm² cable.

Print to PDF

Code 009AB553610C
EAN 8430892336819
Dimensions
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Product gross weight (kg) 1
Package height (mm) 170
Package width (mm) 165
Package length (mm) 135
Technical data

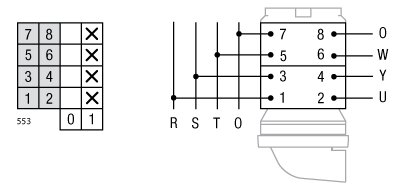

Nr. Poles 4
Operational rating (Ie) 63 A
Air thermal rating (Ith) 70 A
Cable cross-section (AWG) 16 - 1
Wire section flexible 16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

63/63 A (415 V)

63/63 A (500 V)
Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

22 kW (3x230 V)

45 kW (3x415 V)

45 kW (3x500 V)
Mixed load AC-22A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)
Motor load AC-23A

15 kW (3x230 V)

22 kW (3x415 V)

30 kW (3x500 V)
UL Electric characteristics

5 hp 1-fase (110-120 V)

10 hp 1-fase (220-240 V)

15 hp 3-fase (220-240 V)

25 hp 3-fase (380-415 V)

30 hp 3-fase (440-480 V)

32 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Enclosure type METAL
