AB5532108H

SWITCH DISCONNECTOR 4P 25A S1 IP69K PADLOCKABLE HANDLE IN ALUMINIUM ENCLOSURE

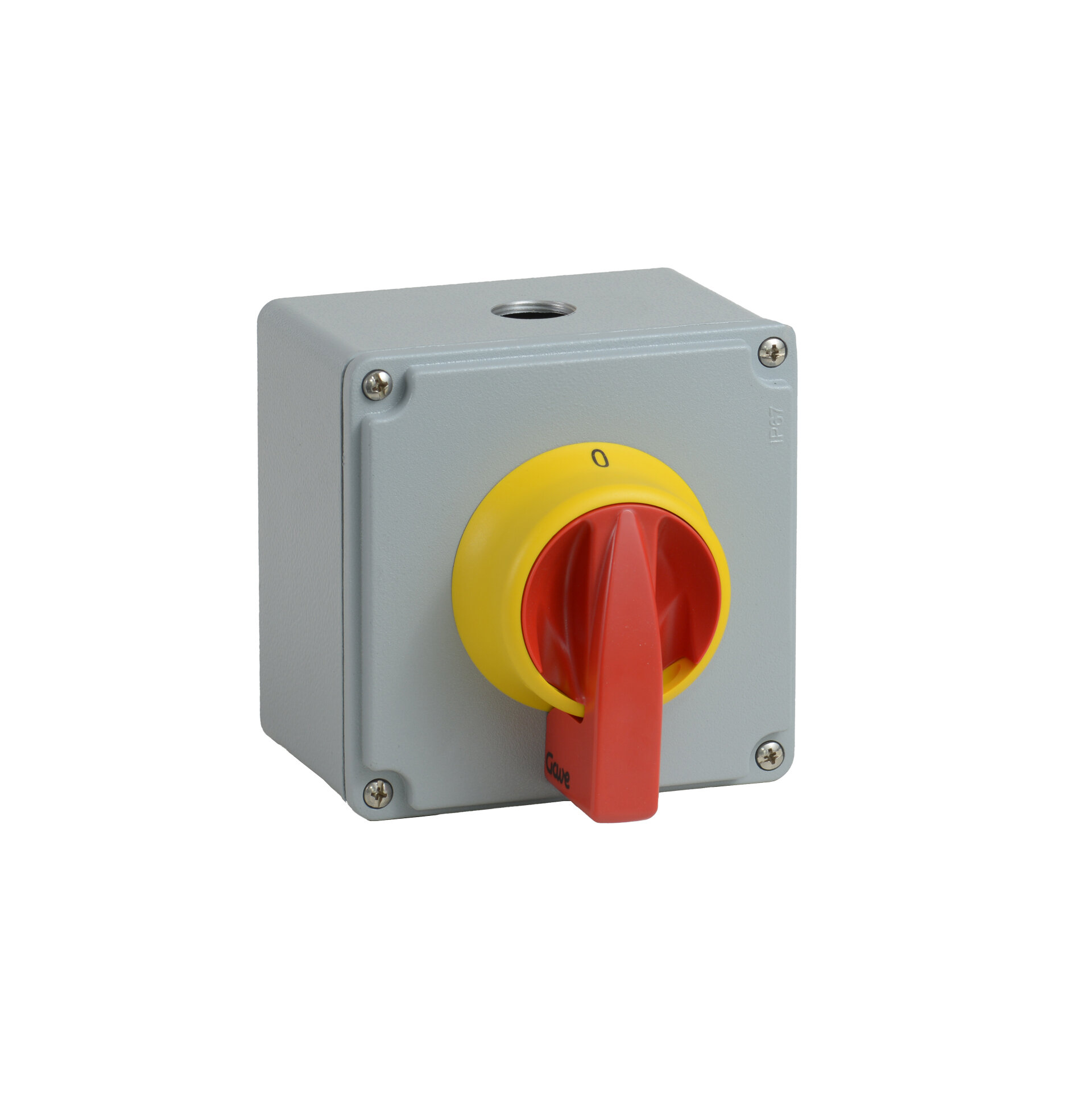

IP69K 4-pole 25A safety switch in aluminium enclosure. Enclosure 2AL in aluminium painted in grey color RAL7032 with surface coating to protect against corrosion, dimensions 130x130x90.Threaded M25 holes, one on top and one on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 6-16mm² cable.

Code 009AB5532108H
Dimensions

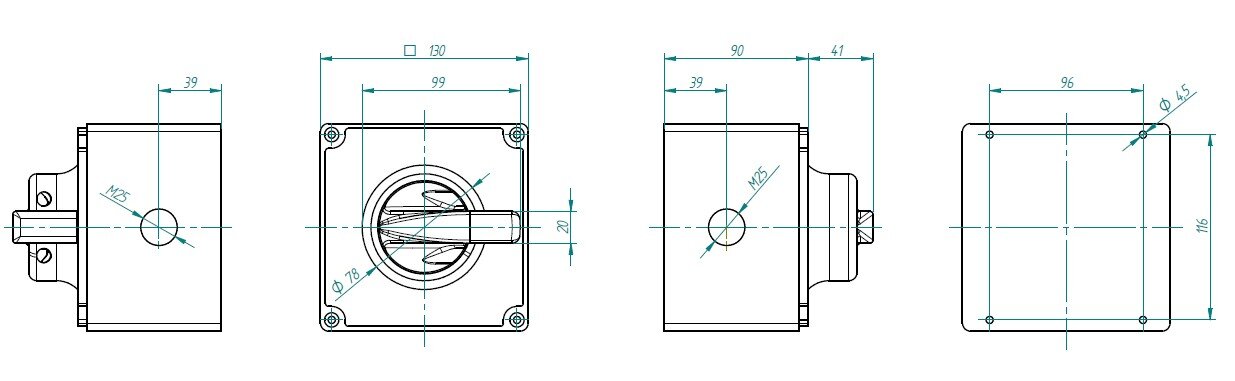

Product height 130
Product width 130
Product length 90
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 4
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Wire section rigid

2,5 - 6 mm2
Wire section flexible

2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/16 A (415 V)

25/16 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

7.5 kW (3x230 V)

15 kW (3x415 V)

18.5 kW (3x500 V)
Mixed load AC-22A

7.5 kW (3x230 V)

15 kW (3x415 V)

18.5 kW (3x500 V)
Motor load AC-23A

5.5 kW (3x230 V)

7.5 kW (3x415 V)

11 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

3 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

3 hp 3-fase (380-415 V)

5 hp 3-fase (440-480 V)

7 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Enclosure type ALUMINIUM
