AB5527108H

SWITCH DISCONNECTOR 3P 100A S1 IP69K PADLOCKABLE HANDLE IN ALUMINIUM ENCLOSURE

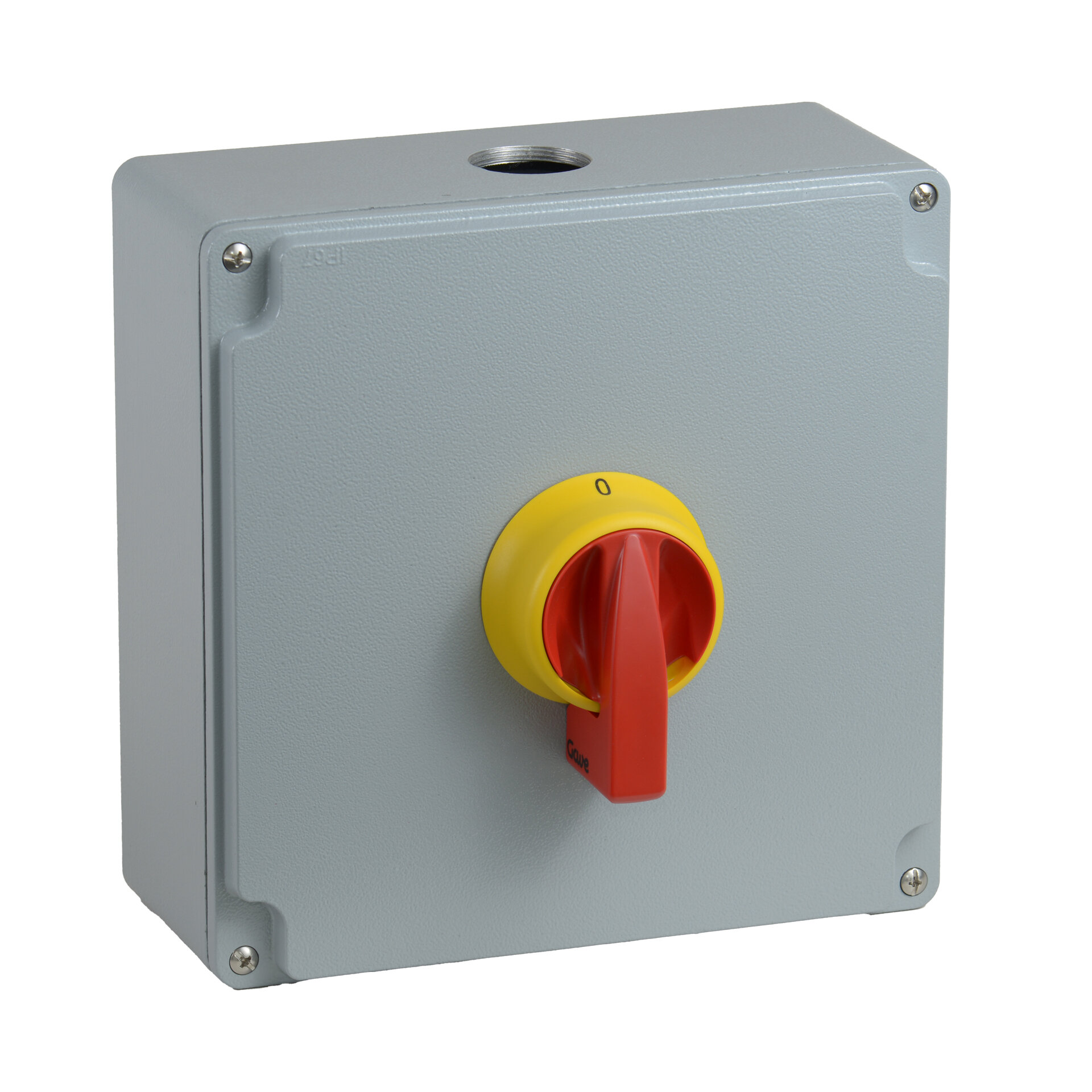

IP69K 3-pole 100A safety switch in aluminium enclosure. Enclosure 4AL in aluminium painted in grey color RAL7040 with surface coating to protect against corrosion, dimensions 250x250x111. Threaded M40 holes, one on top and one on bottom. Fixing to the surface by 4 points. Red/Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 16-50 mm² cable.

Code 009AB5527108H

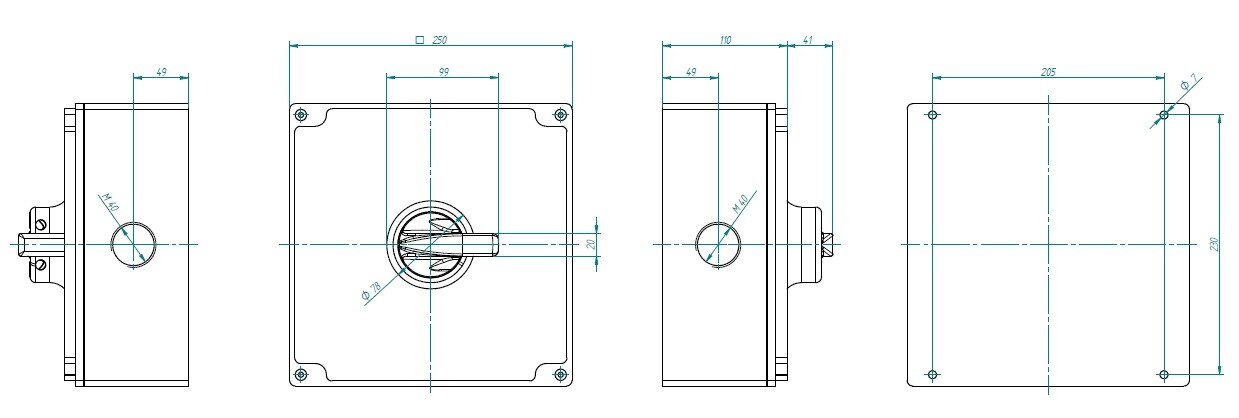

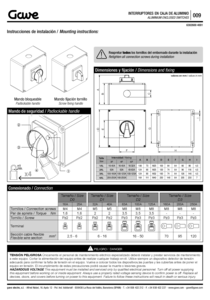

Dimensions
Product height 250
Product width 250
Product length 111
Logistic Data
Customs code 85365080
Technical data
Nr. Poles 3
Operational rating (Ie) 100 A
Air thermal rating (Ith) 100 A
Wire section flexible

16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

100/100 A (415 V)

100/100 A (500 V)
Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

30 kW (3x230 V)

55 kW (3x415 V)

75 kW (3x500 V)
Mixed load AC-22A

30 kW (3x230 V)

55 kW (3x415 V)

55 kW (3x500 V)
Motor load AC-23A

22 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)
UL Electric characteristics

10 hp 1-fase (110-120 V)

15 hp 1-fase (220-240 V)

25 hp 3-fase (220-240 V)

30 hp 3-fase (380-415 V)

40 hp 3-fase (440-480 V)

50 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Enclosure type ALUMINIUM
