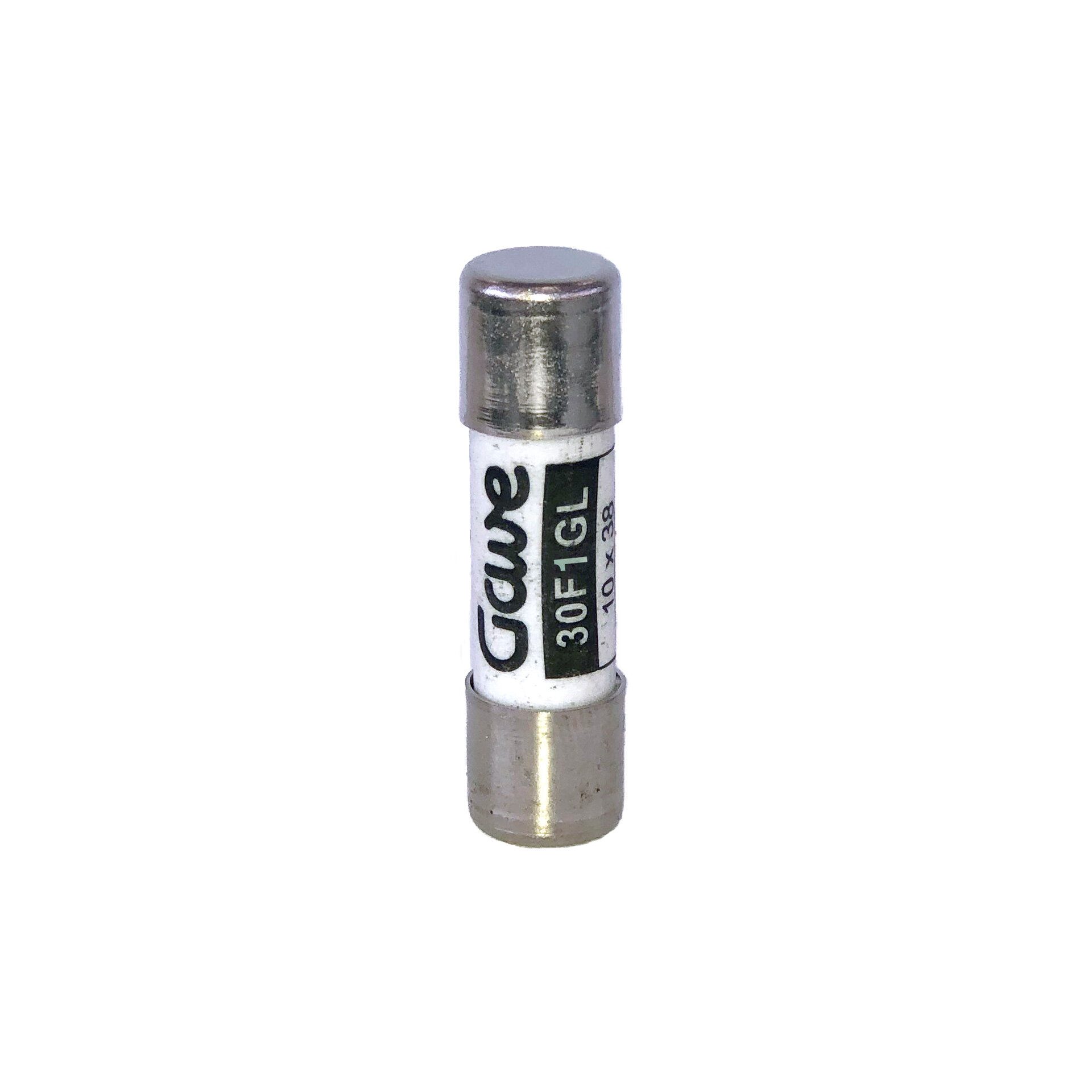

30F1GL

CILINDRICAL FUSE 1 A GG S.0
Code 01330F1GL
EAN 8430892130226
Fuse data
Fuse type CYL. 10X38
Operating voltage 500 V
Utilisation category gG
Rated current 1 A
Breaking capacity 120 kA
Fuse indicator NO
Standards IEC EN 60269-1/2
Logistic Data
Customs code 85361010
Etim Code EC002704
Packing units 10
Product gross weight (kg) 0.092
Package height (mm) 11
Package width (mm) 80
Package length (mm) 55
Technical data
Nominal current (In A) 1
I2t Pre-Arc (A2s) 6.5
I2t Total (A2s) 15.7
Power loss (W @ In) 2.78
Frequency (Hz) 50-60
Storage temperature (ºC) -30/+70
