AB55221F6

ON-OFF SWITCH 3P 25A D1 F600 PROTEC

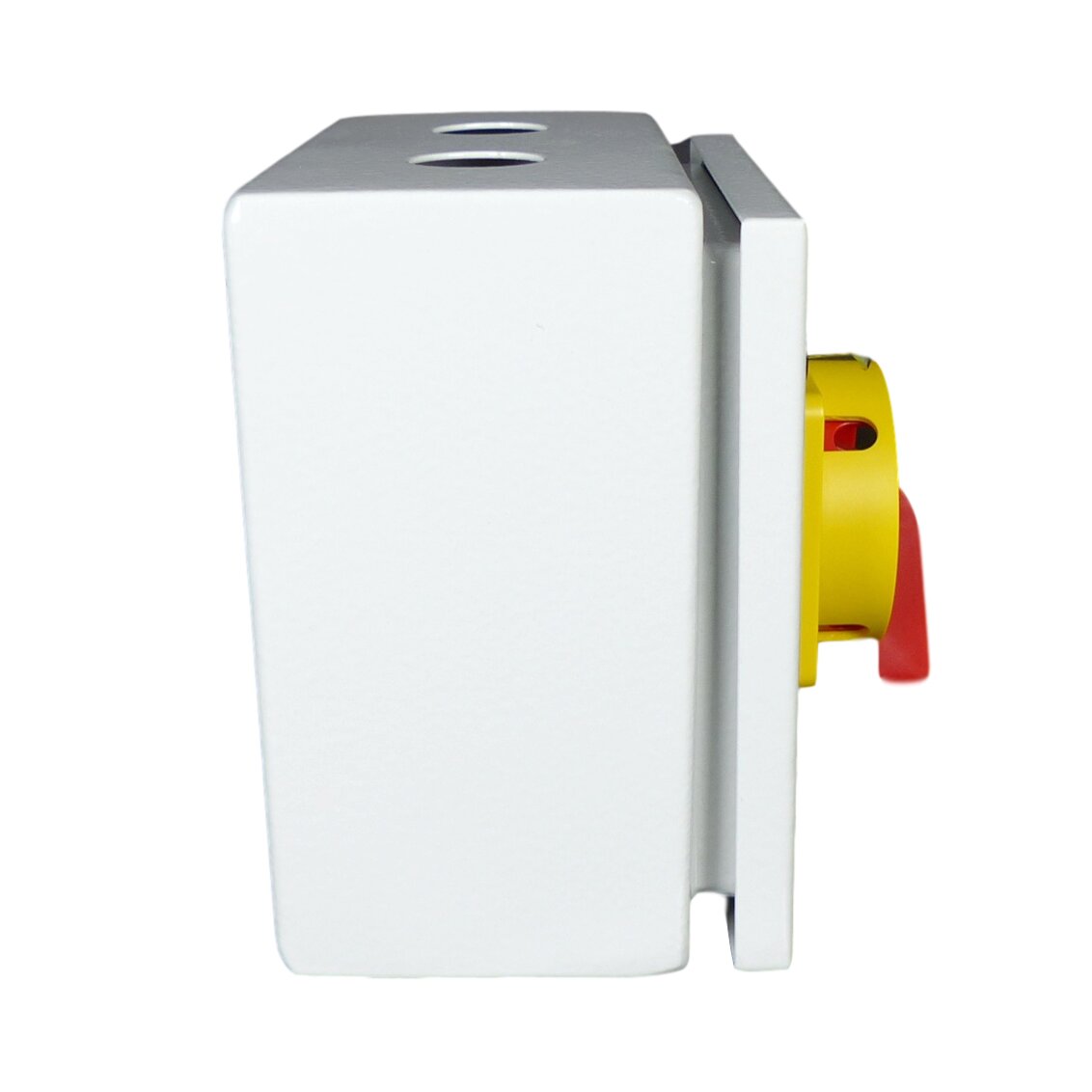

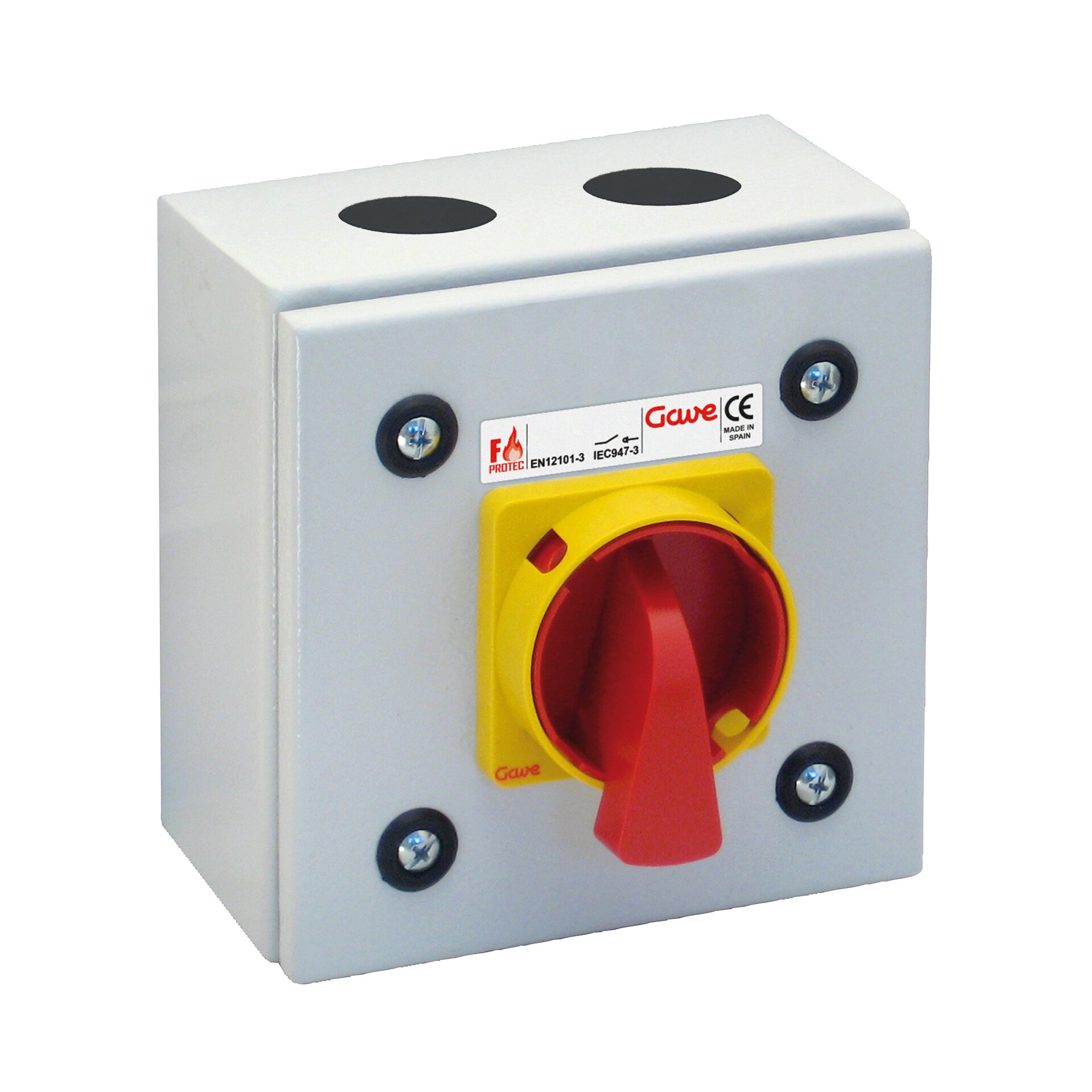

3 pole 25A switch disconnector fire rated class F600 according to EN 12101-3. Enclosure 1AC in steel painted in clear grey color RAL7035 with surface coating to protect against corrosion, dimensions 150x150x95. Protection degree IP65. Threaded M25 holes, two on top and two on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 6-16mm² cable.

Print to PDF

Code 009AB55221F6
EAN 8430892242400
Dimensions
Product height 150
Product width 150
Product length 95
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Technical data
Nr. Poles 3
Operational rating (Ie) 25 A
Air thermal rating (Ith) 25 A
Wire section rigid 2,5 - 6 mm2
Wire section flexible 2,5 - 6 mm2
Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Mixed load AC-22A

7,5 kW (3x230 V)

15 kW (3x415 V)

18,5 kW (3x500 V)
Motor load AC-23A

5,5 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

3 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

3 hp 3-fase (380-415 V)

5 hp 3-fase (440-480 V)

7 hp 3-fase (550-600 V)
Standard

IEC 60947-3

IEC 12101-3

UL 508
