AI5524100

ON-OFF SWITCH DISCONNECTOR 3P 40A.D1 BLACK SCREW HANDLE
On-off switch disconnector with black screw handle, IP20 with 0-1 black front plate 64x64 for panel fixing. 3 poles 40A. Size D1. Connection with cage terminals for 6-16 mm² cable. Compatible with multiple accessories from the A5 series.

Print to PDF

Code 009AI5524100
EAN 8430892142809

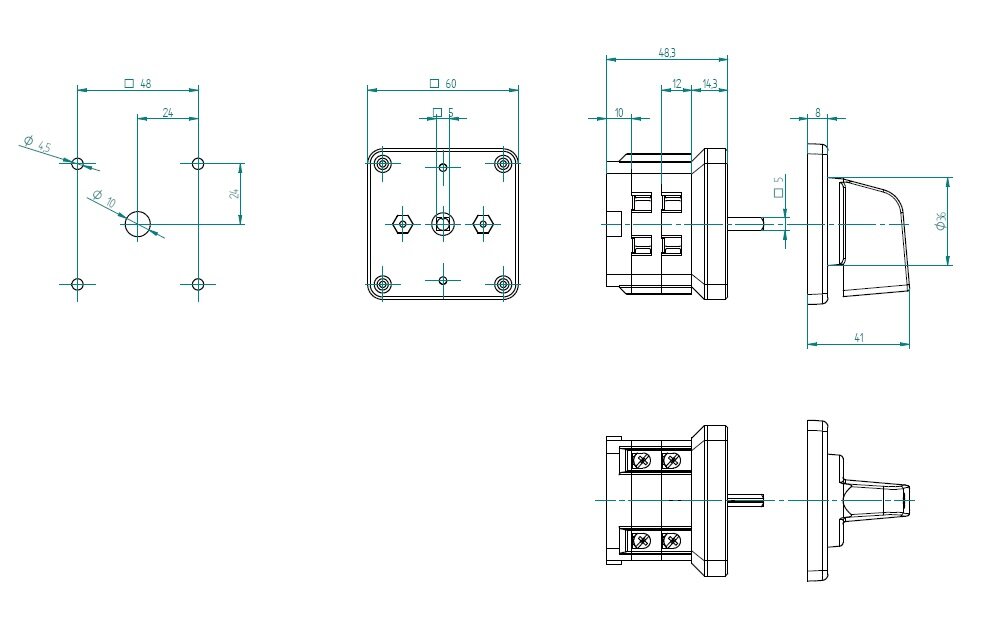

Dimensions
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Package height (mm) 95
Package width (mm) 68
Package length (mm) 68
Technical data
Nr. Poles 3
Operational rating (Ie) 40 A
Air thermal rating (Ith) 40 A
Cable cross-section (AWG) 6
Wire section rigid 6 - 25 mm2
Wire section flexible 6 - 16 mm2
Tightening torque 2 Nm
Connection screws M5
Terminal Terminal
Max. fuse protection (gG/aM)

40/32 A (415 V)

40/32 A (500 V)
Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

15 kW (3x230 V)

22 kW (3x415 V)

30 kW (3x500 V)
Mixed load AC-22A

11 kW (3x230 V)

22 kW (3x415 V)

22 kW (3x500 V)
Motor load AC-23A

11 kW (3x230 V)

18,5 kW (3x415 V)

22 kW (3x500 V)
UL Electric characteristics

2 hp 1-fase (110-120 V)

5 hp 1-fase (220-240 V)

7,5 hp 3-fase (220-240 V)

10 hp 3-fase (380-415 V)

15 hp 3-fase (440-480 V)

20 hp 3-fase (550-600 V)
Standard

IEC 60947-3

UL 508
Handle type Directo
