A-5921000

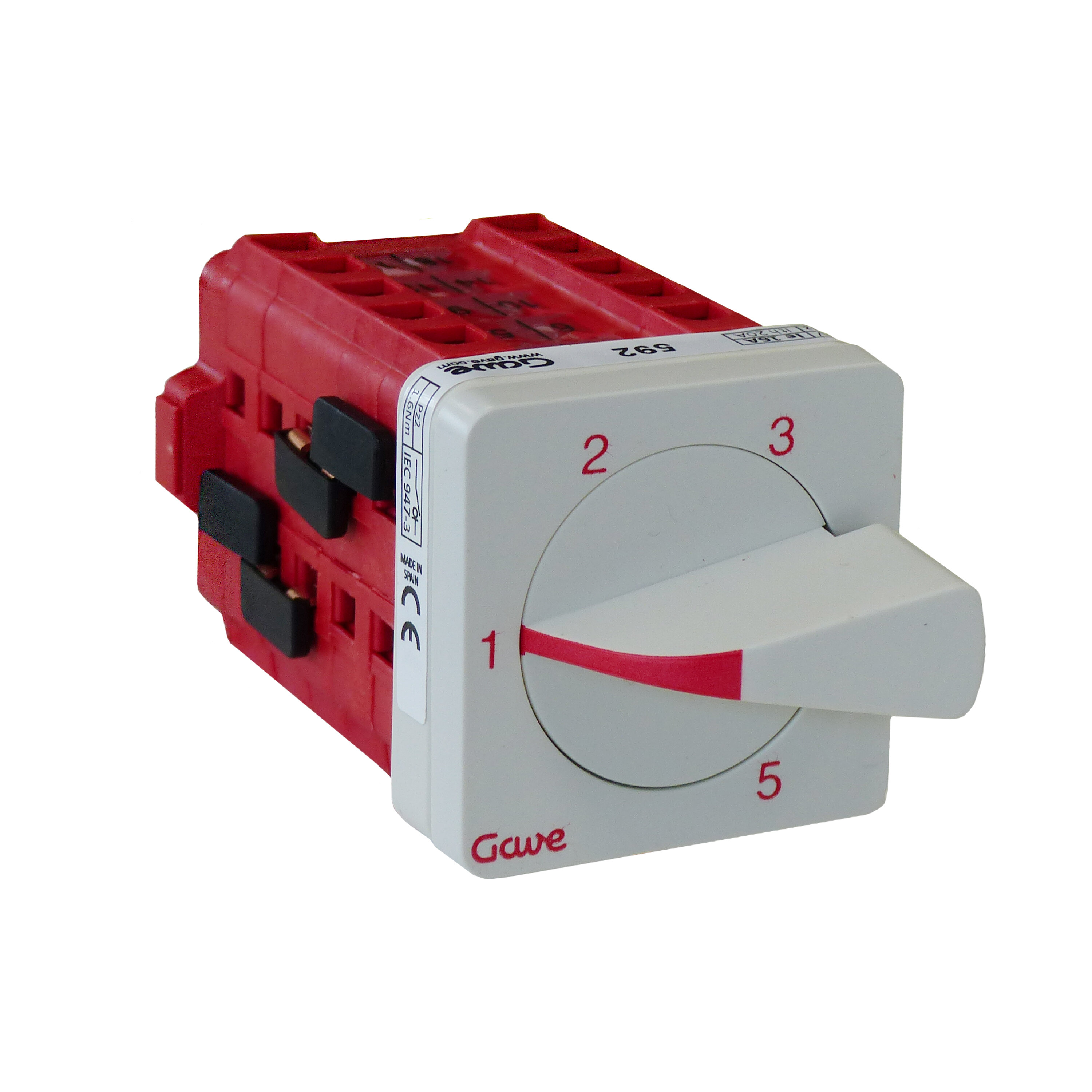

CHANGEOVER SWITCH WITHOUT 0 2P 5 POS.16A.D0
Changeover step switch, IP20 with 1-2-3-4-5 grey front plate 48x48 for panel fixing. 2 poles 16A. Size D0. Ergonomic screwless quick-mount handle. Connection with cage terminals for 2.5-6 mm² cable. Compatible with multiple accessories from the A5 series.

Print to PDF

Code 009A-5921000
EAN 8430892103893
Dimensions
Logistic Data
Customs code 85365080
Etim Code EC002611
Packing units 1
Package height (mm) 110
Package width (mm) 50
Package length (mm) 50
Technical data
Nr. Poles 2
Operational rating (Ie) 16 A
Air thermal rating (Ith) 20 A
Cable cross-section (AWG) 10
Wire section rigid

2,5 - 6 mm2

Wire section flexible

2,5 - 6 mm2

Tightening torque 1,6 Nm
Connection screws M4
Terminal Terminal
Max. fuse protection (gG/aM)

25/25 A (415 V)

25/25 A (500 V)

Conditional shortcircuit current (Icc)

6 kA (415 V)

6 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 400
Dummy AC-21A

5,5 kW (3x230 V)

11 kW (3x415 V)

15 kW (3x500 V)

Mixed load AC-22A

4 kW (3x230 V)

7,5 kW (3x415 V)

11 kW (3x500 V)

Motor load AC-23A

3 kW (3x230 V)

5,5 kW (3x415 V)

7,5 kW (3x500 V)

UL Electric characteristics

1,5 hp 1-fase (110-120 V)

2 hp 1-fase (220-240 V)

2 hp 3-fase (220-240 V)

2 hp 3-fase (380-415 V)

3 hp 3-fase (440-480 V)

5 hp 3-fase (550-600 V)

Standard

IEC 60947-3

UL 508

Handle type Directo
