A-572B100

CHANGEOVER SWITCH WITHOUT 0 3P 200A.D3

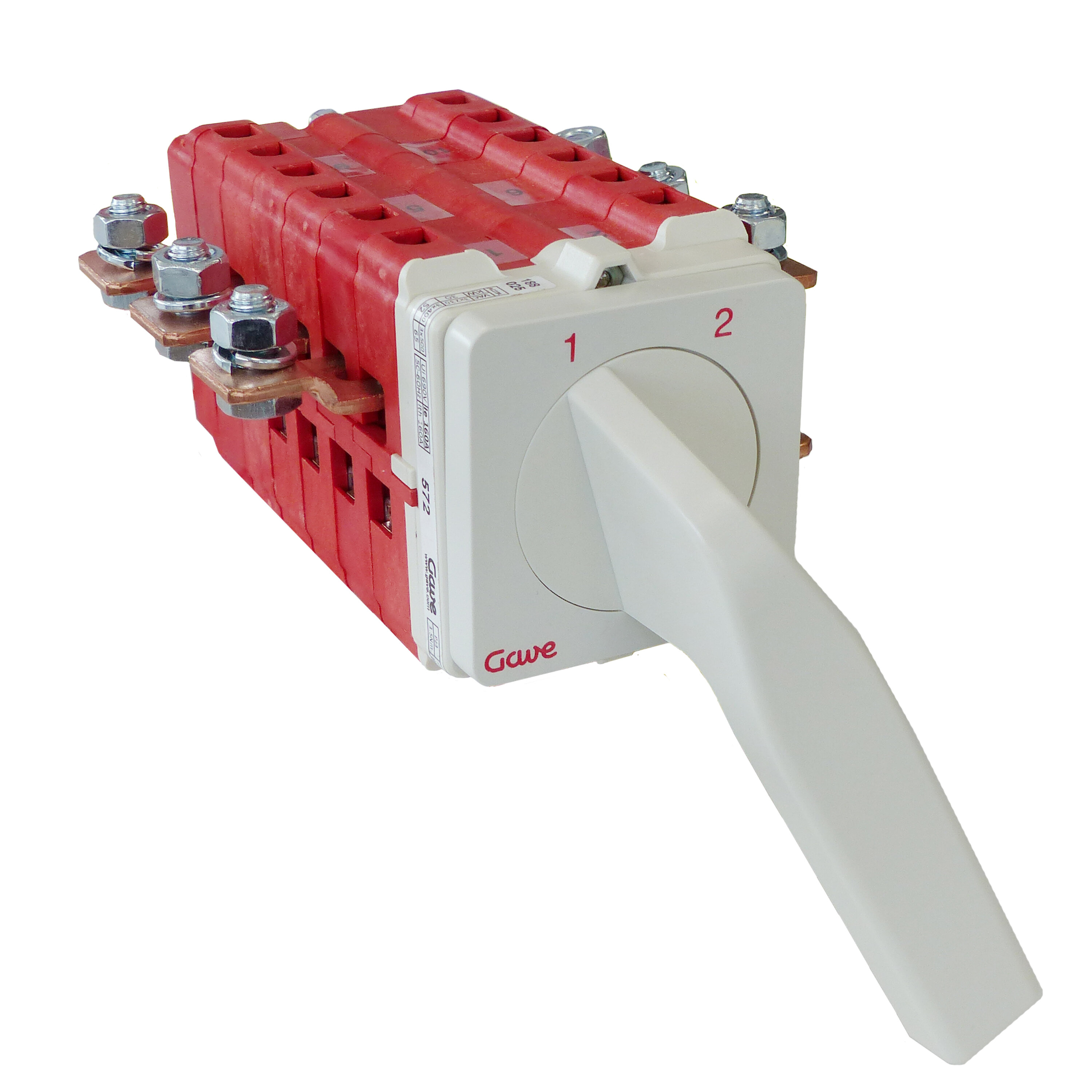

Changeover cam switch, IP20 with 1-2 grey front plate 64x64 for panel fixing. 3 poles 200A. Size D3. Ergonomic screwless quick-mount handle. Cable lug terminal connection for 95 mm² cable. Compatible with multiple accessories from the A5 series.

Print to PDF

Code 009A-572B100
EAN 8430892156103
Dimensions
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Technical data
Nr. Poles 3
Operational rating (Ie) 200 A
Air thermal rating (Ith) 200 A
Wire section flexible

95 mm2

Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

200 A (415 V)

200 A (500 V)

Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

55 kW (3x230 V)

110 kW (3x415 V)

132 kW (3x500 V)

Mixed load AC-22A

45 kW (3x230 V)

90 kW (3x415 V)

110 kW (3x500 V)

Motor load AC-23A

38 kW (3x230 V)

65 kW (3x415 V)

80 kW (3x500 V)

Standard IEC 60947-3
Handle type Directo
