A-5619100

CHANGEOVER SWITCH 2P 125A.D2

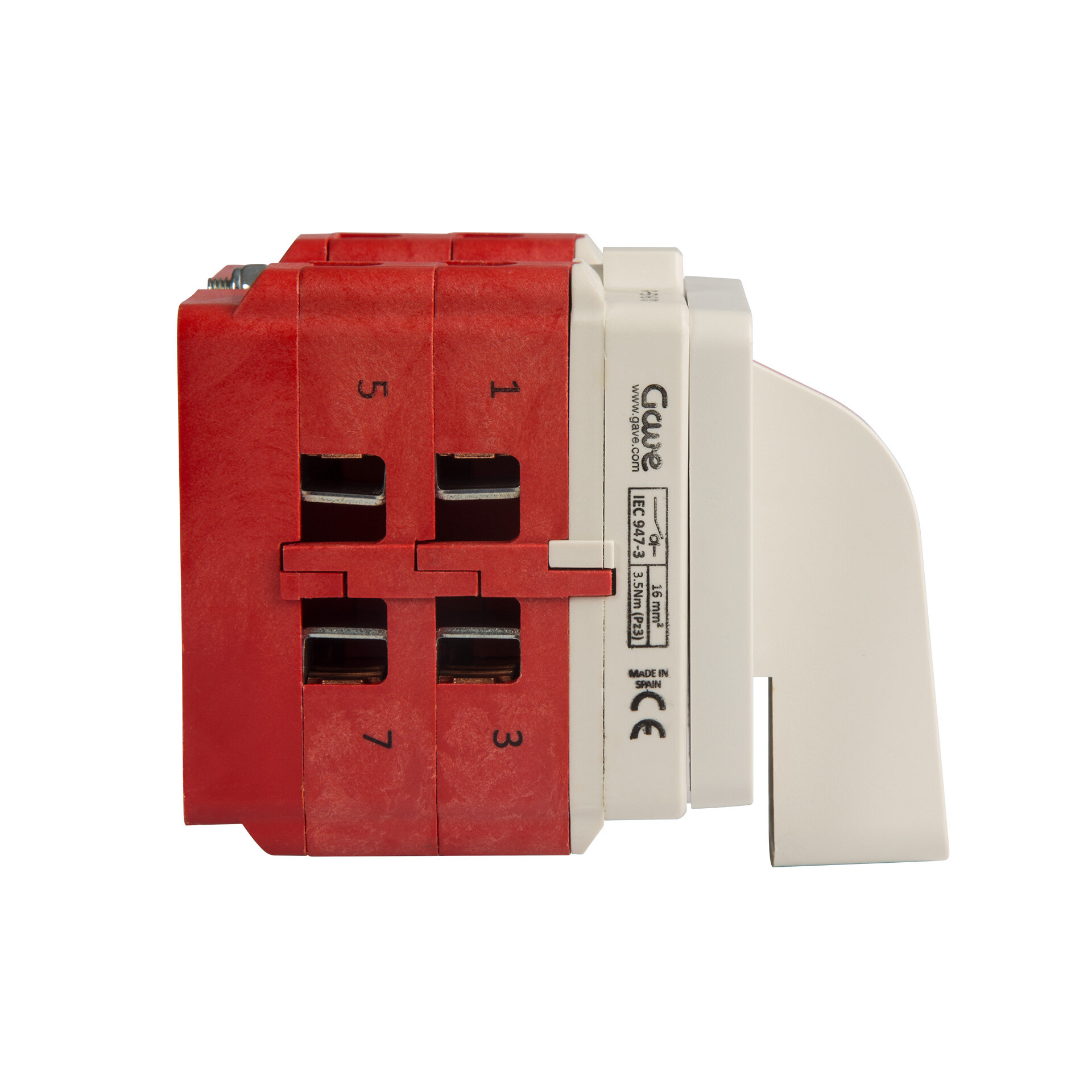

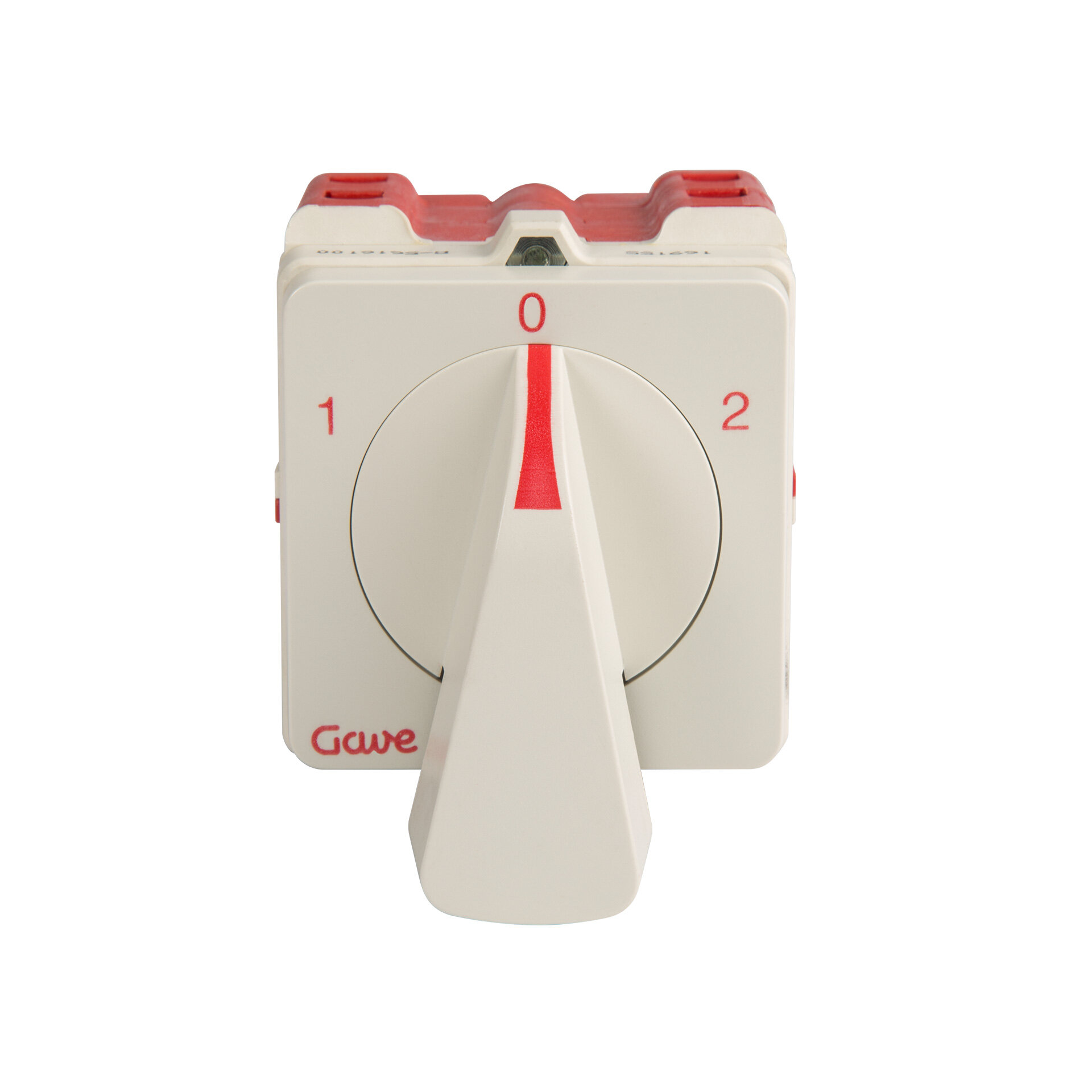

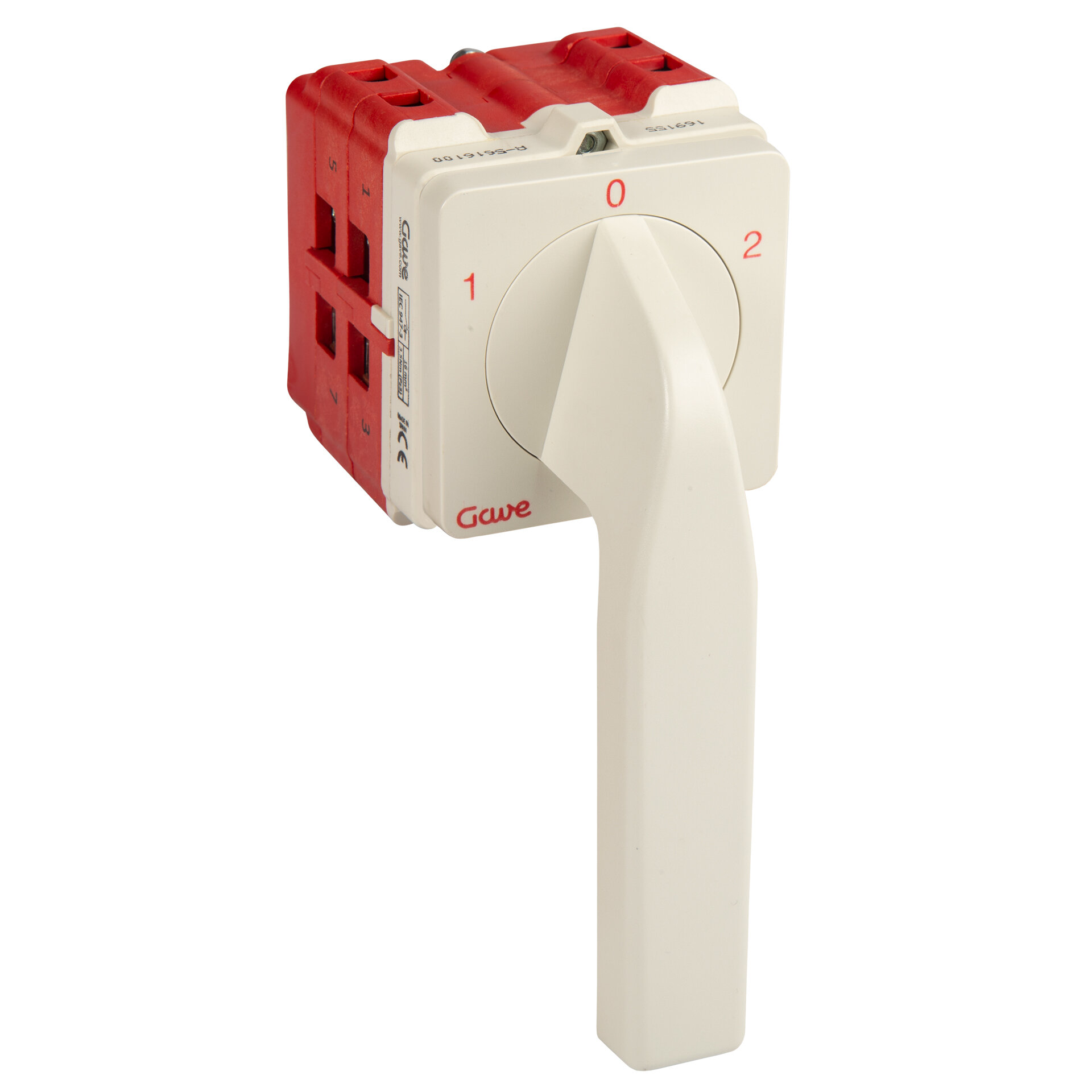

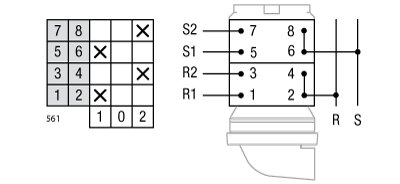

Changeover cam switch, IP20 with 1-0-2 grey front plate 64x64 for panel fixing. 2 poles 125A. Size D2. Ergonomic screwless quick-mount handle. Connection with cage terminals for 16-50 mm² cable. Compatible with multiple accessories from the A5 series.

Print to PDF

Code 009A-5619100
EAN 8430892170819
Dimensions
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Product gross weight (kg) 0.54
Package height (mm) 163
Package width (mm) 88
Package length (mm) 86
Technical data
Nr. Poles 2
Operational rating (Ie) 125 A
Air thermal rating (Ith) 125 A
Cable cross-section (AWG) 16 - 1
Wire section flexible

16 - 50 mm2

Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

125/100 A (415 V)

125/100 A (500 V)

Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

37 kW (3x230 V)

75 kW (3x415 V)

90 kW (3x500 V)

Mixed load AC-22A

37 kW (3x230 V)

55 kW (3x415 V)

75 kW (3x500 V)

Motor load AC-23A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)

UL Electric characteristics

10 hp 1-fase (110-120 V)

15 hp 1-fase (220-240 V)

25 hp 3-fase (220-240 V)

30 hp 3-fase (380-415 V)

40 hp 3-fase (440-480 V)

50 hp 3-fase (550-600 V)

Standard

IEC 60947-3

UL 508

Handle type Directo
