ACT80EDA/300

AC MODULAR COMBINER BOX THREE PHASE MCB 80A RCCB TYPE A HI 300MA

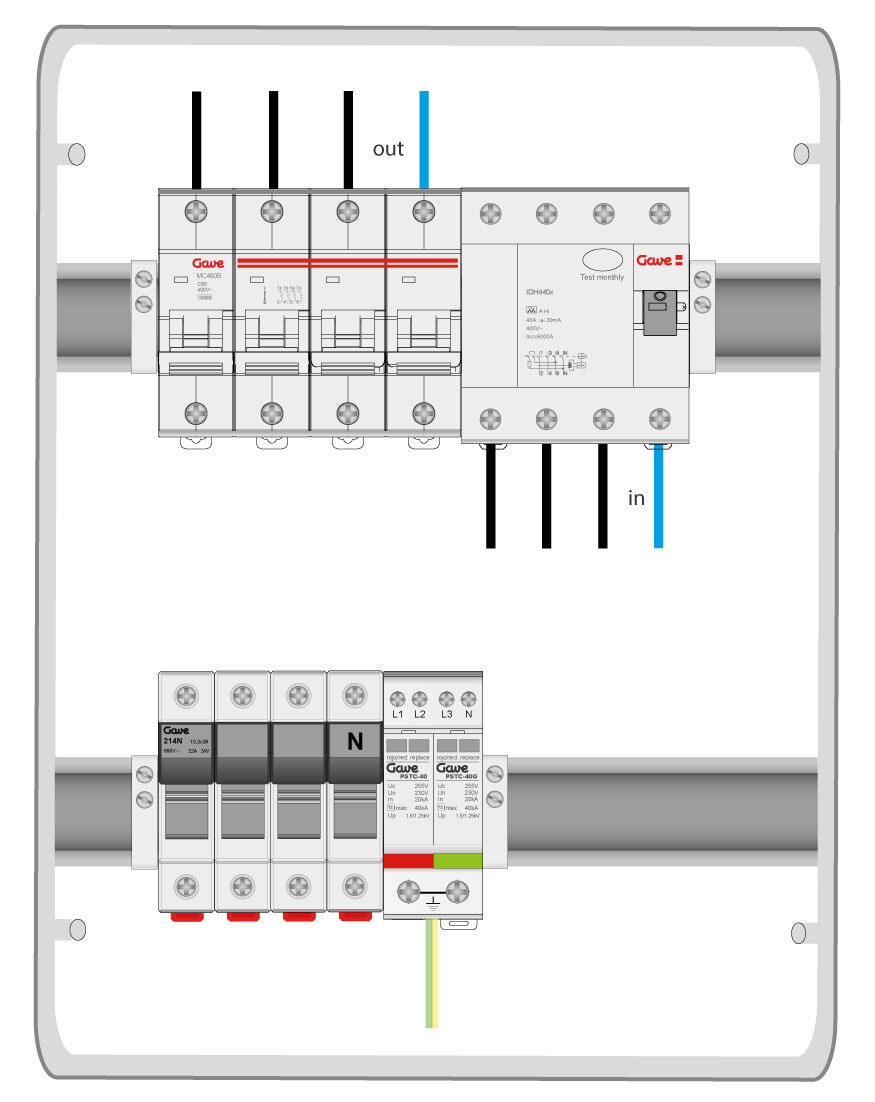

Modular combiner box with mcb, rccb and overvoltage protection and equipped with modular circuit breaker 4 poles 80A C curve breaking capacity 10kA - EN 60898-1. Residual current circuit breaker four pole type A HI sensitivity 300mA for alternating current with pulsed direct current, protected against nuisance tripping 5kA, EN 61008-1. Overvoltage protection ClassII In 20kA Imax 40kA Up 1,5kV EN 61643-11 with associated fuse protection. Double insulation Class II box in polycarbonate material for indoor and outdoor use with high impact resistance (IK08). Available space to add modular devices. Dimensions de 436x310x148mm.
Code 029ACT80EDA/300
EAN 8430892339230
Combiner box technical data
MCB - Circuit breaker 80 A
Network type 3P+N
Surge protector Class II
Diferential type 300mA
Surge protector code PSTC440
Surge protector type II
Nominal discharge current (In) 20 kA
Maximum discharge current (Imax) 40 kA
Protection level at In (Up) 1.5 kV
