ACBM63FND

BACKUP CHANGEOVER BOX 2P 63A (1F+N 230VAC) - GEN 24

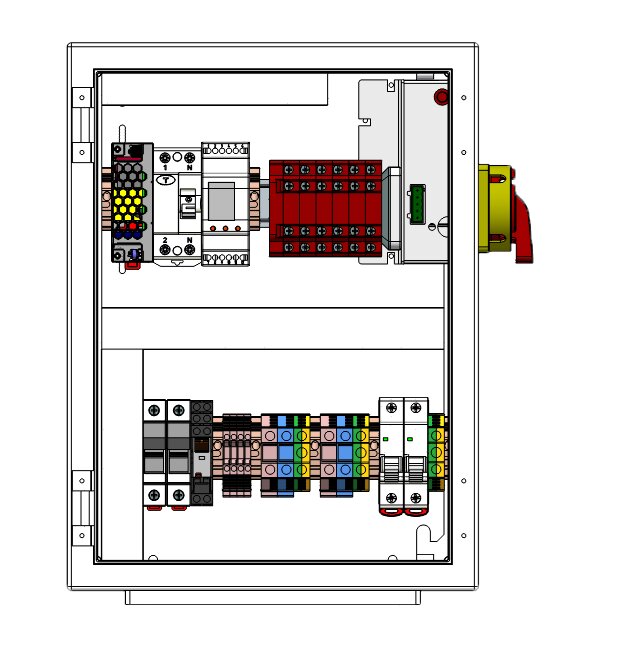

Backup changeover box for the Fronius hybrid inverters. Supplied with a motorized 3 position 2 poles changeover (1F+N), up to 63A - 230Vac, designed to disconnect the facility from grid if it doesn't supply energy. Due to a Fronius Smart Meter TS, a bidirectional meter which optimises self consumption, managing energy flows and recording energy consumption and has an exact measure and fast communication via Modbus RTU connectivity, the equipment switches to backup mode and home is supplied from backup battery and solar panel. Full backup option enables a higher independence and flexibility thanks to Fronius GEN24 Plus inverter. Cable section 16 mm2, terminal section 16 mm2. Metallic sheet cabinet treated with a protective coating against corrosion, colour RAL 7035, ingress protection against water and dust IP66 and impact resistance IK10. Cabinet size 400x300x150mm.

Code 029ACBM63FND
Combiner box technical data
MCB - Circuit breaker 63 A
Curve C
Breaking capacity EN 60947-2 6 kA
RCCB type A - 30 mA
Diferential type 30mA
IP IP66
IK IK10
Standards IEC EN 61439-1/2
Dimensions
Product height 400 m
Product width 400 m
Product length 150 mm
Logistic Data
Customs code 85371098
Technical data
Wire cross section

10 mm2
Maximum Cu cable cross-section

10 mm2
