AB55261F6

ON-OFF SWITCH 3P 63A D1 F600 PROTEC

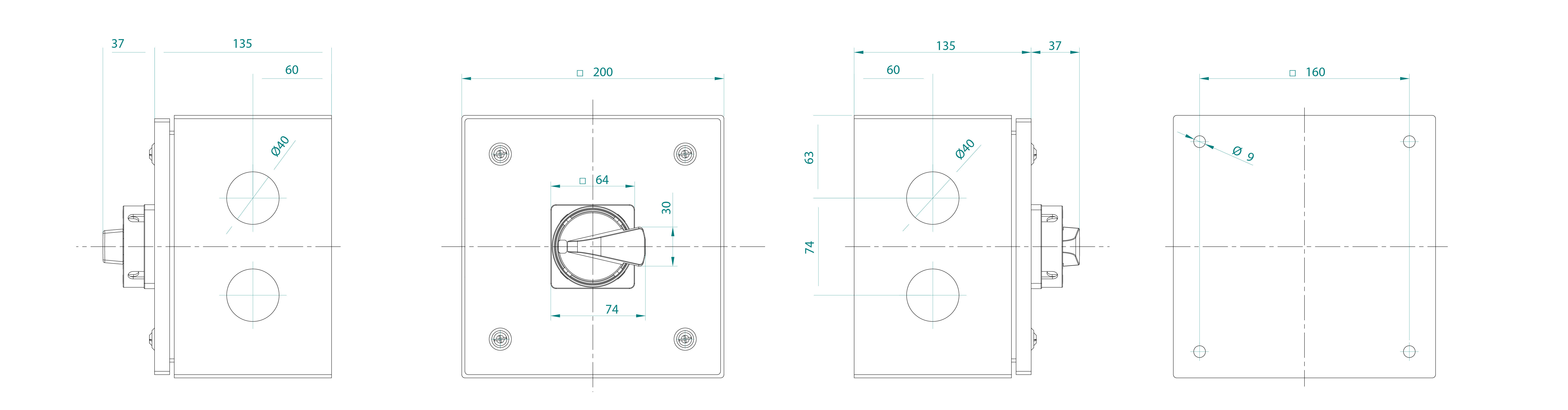

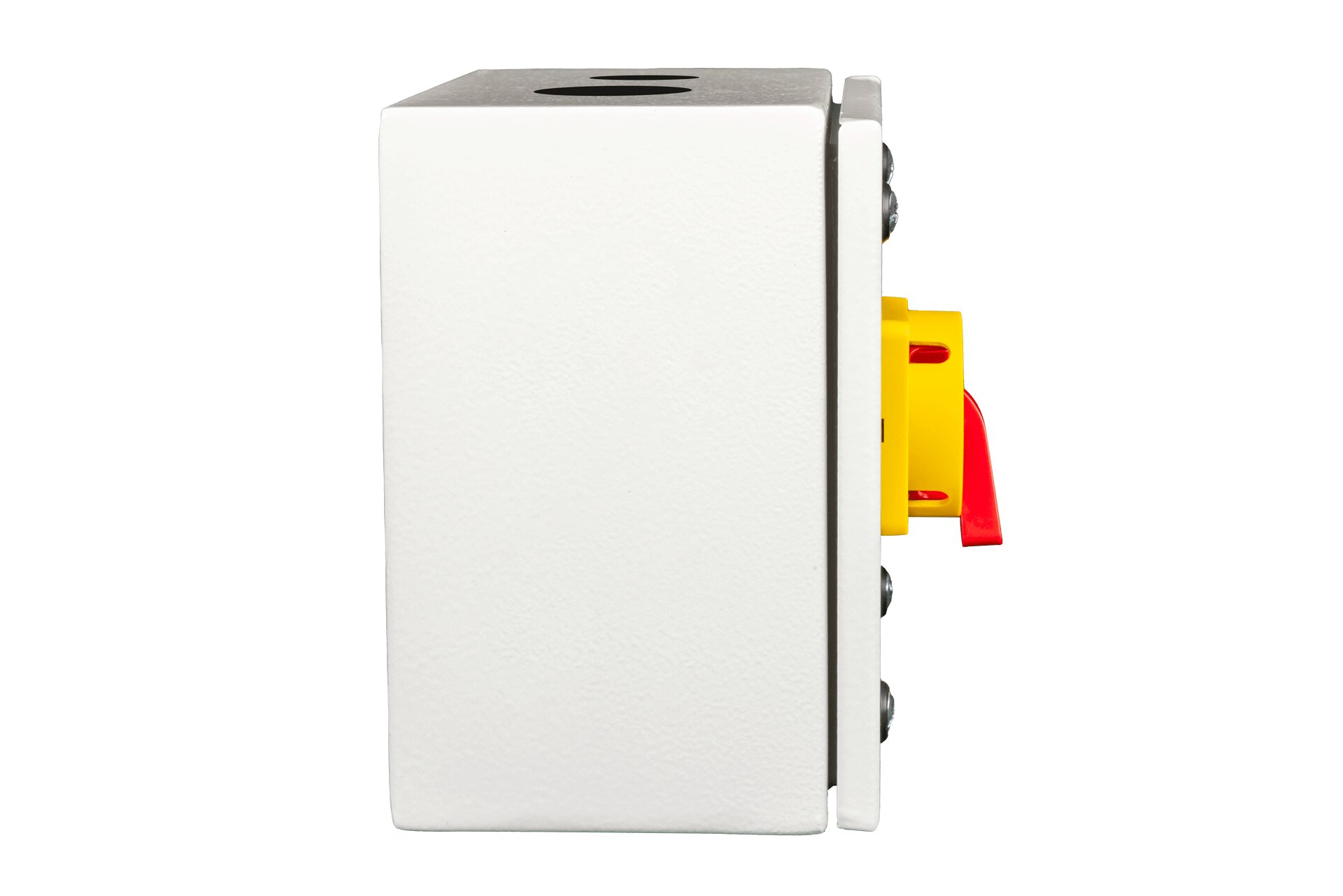

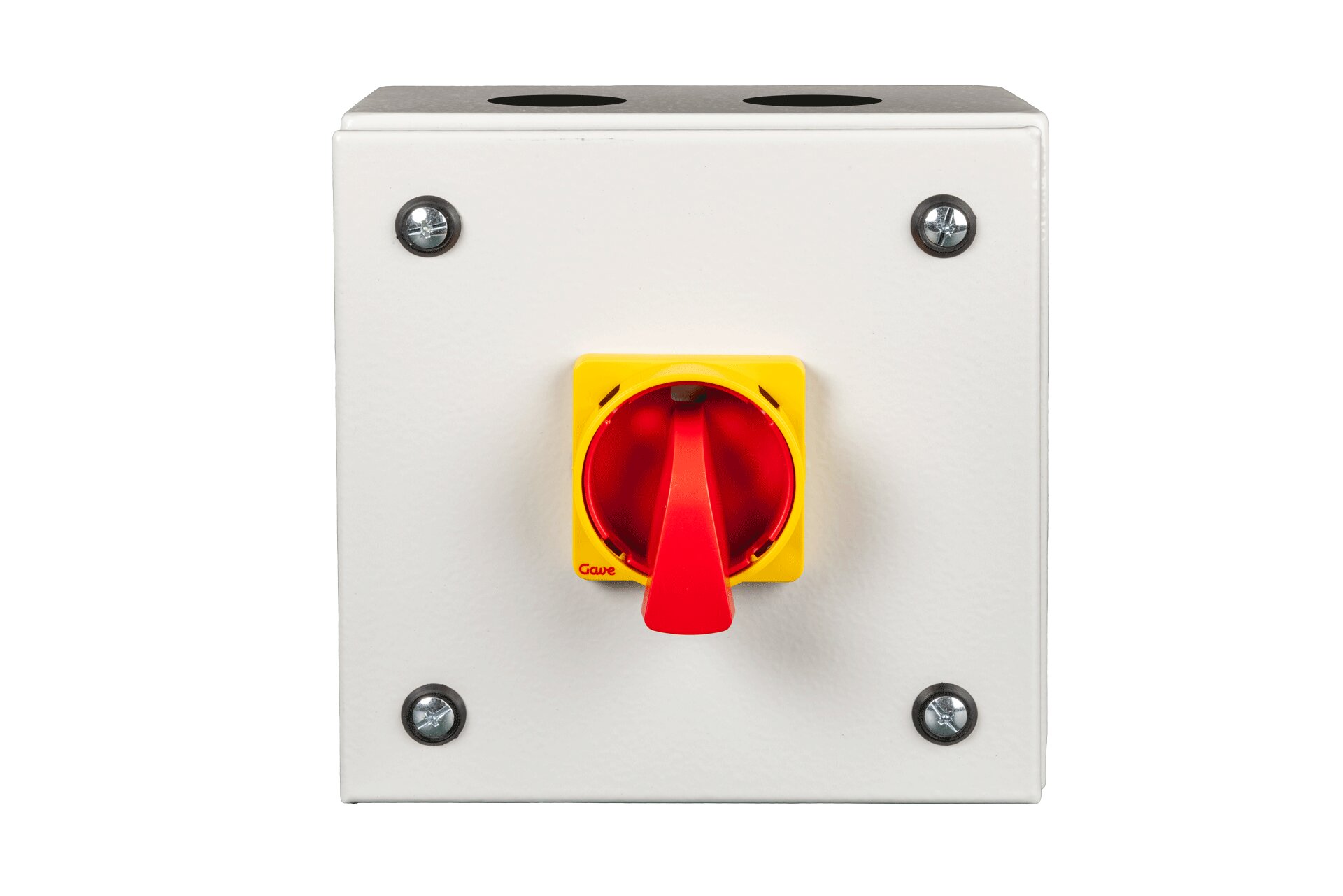

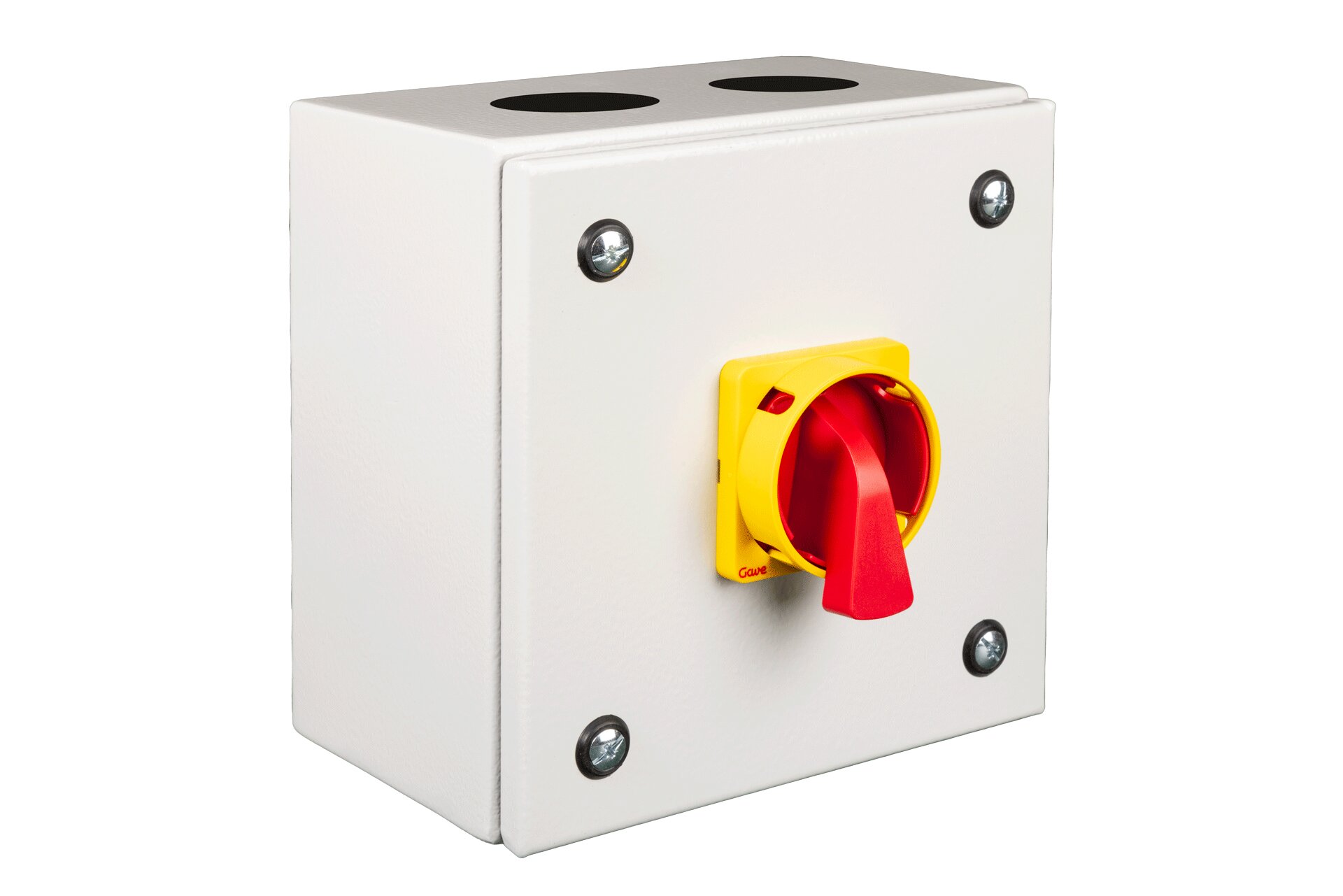

3 pole 63A switch disconnector fire rated class F600 according to EN 12101-3. Enclosure 2AC in steel painted in clear grey color RAL7035 with surface coating to protect against corrosion, dimensions 200x200x135. Protection degree IP65. Threaded M40 holes, two on top and two on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 16-35mm² cable.

Print to PDF

Code 009AB55261F6
EAN 8430892242424
Dimensions
Product height 200
Product width 200
Product length 135
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Technical data
Nr. Poles 3
Operational rating (Ie) 63 A
Air thermal rating (Ith) 70 A
Wire section flexible 16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

63/63 A (415 V)

63/63 A (500 V)
Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)
Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

22 kW (3x230 V)

45 kW (3x415 V)

45 kW (3x500 V)
Mixed load AC-22A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)
Motor load AC-23A

18,5 kW (3x230 V)

30 kW (3x415 V)

37 kW (3x500 V)
UL Electric characteristics

5 hp 1-fase (110-120 V)

10 hp 1-fase (220-240 V)

15 hp 3-fase (220-240 V)

25 hp 3-fase (380-415 V)

30 hp 3-fase (440-480 V)

32 hp 3-fase (550-600 V)
Standard

IEC 60947-3

IEC 12101-3

UL 508
Fire Rating F600
