AB55261F4

ON-OFF SWITCH DISCONNECTOR 3P 63A D2 F400 PROTEC

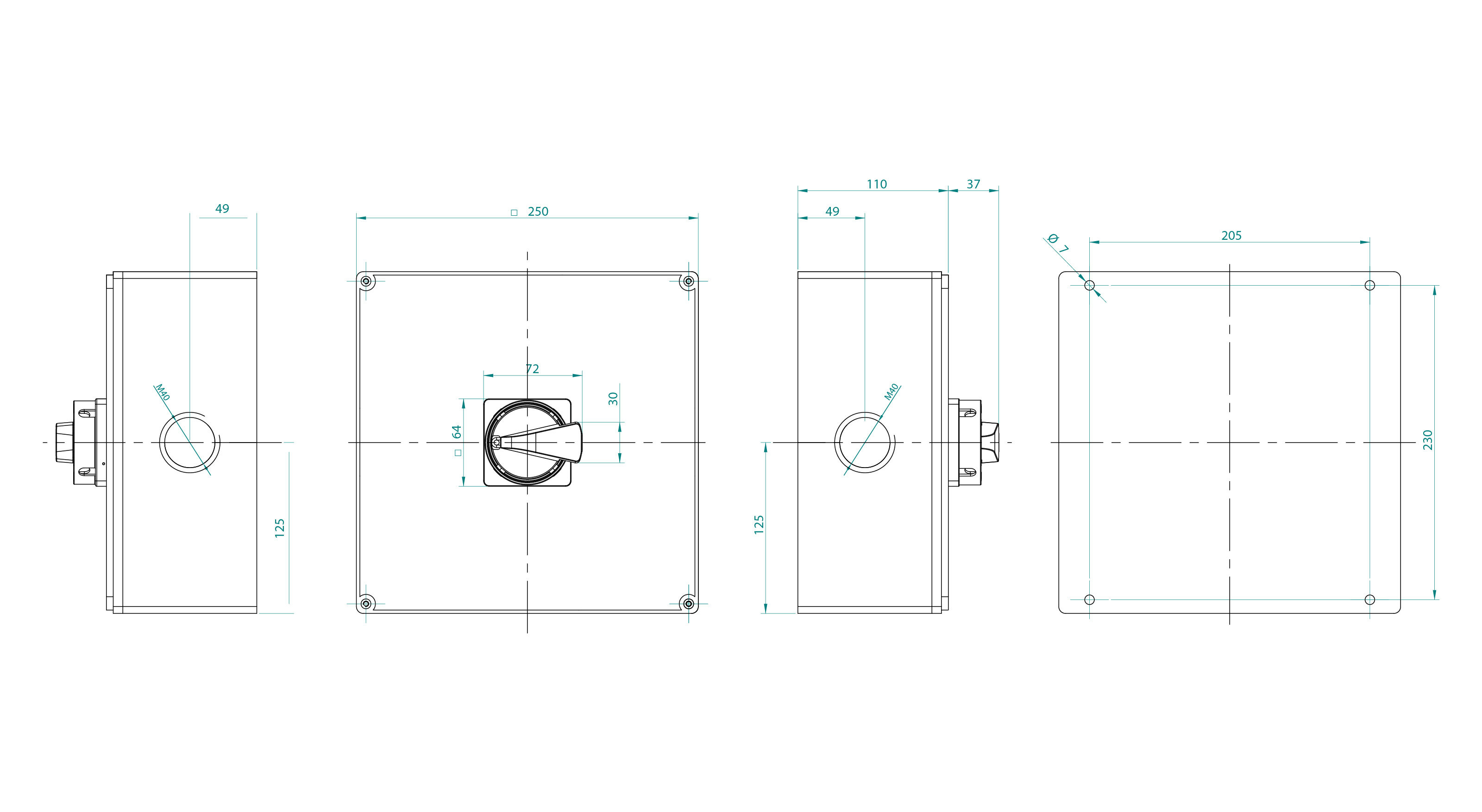

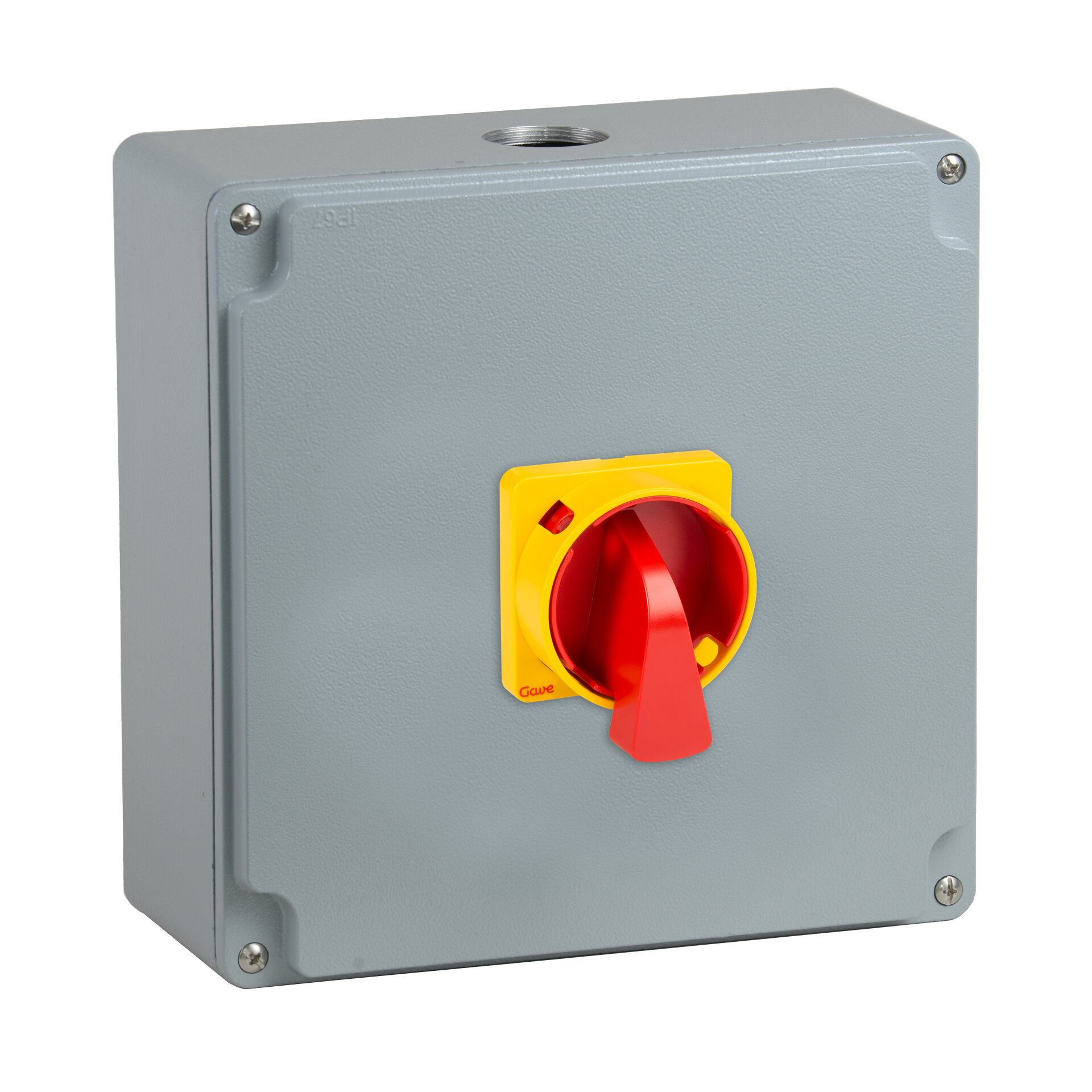

3 pole 63A switch disconnector fire rated class F400 according to EN 12101-3. Enclosure 4AL in aluminium painted in grey color RAL7040 with surface coating to protect against corrosion, dimensions 250x250x111. Protection degree IP65. Threaded M40 holes, one on top and one on bottom. Fixing to the surface by 4 points. Red / Yellow padlockable handle (up to 4 padlocks of 8mm diammeter). Connection with cage terminals for 16-35mm² cable.

Print to PDF

Code 009AB55261F4
EAN 8430892223201
Dimensions
Product height 250
Product width 250
Product length 111
Logistic Data
Customs code 85365080
Etim Code EC000216
Packing units 1
Product gross weight (kg) 1.72
Package height (mm) 150
Package width (mm) 170
Package length (mm) 205
Technical data
Nr. Poles 3
Operational rating (Ie) 63 A
Air thermal rating (Ith) 70 A
Wire section flexible 16 - 50 mm2
Tightening torque 3,5 Nm
Connection screws M8
Terminal Terminal
Max. fuse protection (gG/aM)

63/63 A (415 V)

63/63 A (500 V)

Conditional shortcircuit current (Icc)

8 kA (415 V)

8 kA (500 V)

Insulating voltage (V~) 690
Insulating voltage (V...) 600
Dummy AC-21A

22 kW (3x230 V)

45 kW (3x415 V)

45 kW (3x500 V)

Mixed load AC-22A

18,5 kW (3x230 V)

37 kW (3x415 V)

45 kW (3x500 V)

Motor load AC-23A

18,5 kW (3x230 V)

30 kW (3x415 V)

37 kW (3x500 V)

Standard

IEC 60947-3

EN 12101-3

Fire Rating F400
